World Encoders iPHD Series Handheld Operation Box Field Troubleshooting and Replacement Selection Guide

Use appropriate crimping tools or constant temperature soldering irons to avoid virtual soldering.

The cable clamping kit must be installed correctly to prevent the internal welding points from being pulled apart when the cable rotates.

For on-site self-made cables, it is recommended to embed 704 silicone rubber inside the plug to increase shock resistance and waterproofing.

Euchner HBA-072 910 Swap Replacement Details

Many old-fashioned CNC machines use the Euchner HBA-072 910 handwheel, which has been discontinued. The iPHD-FOECL-IM is designed as a direct replacement model with a lower price (approximately $1100 vs original high price). Attention should be paid when replacing:

Axis encoding logic is consistent: the binary code order is 0-Z-X-Y-4-5, which is the same as the original Euchner. No need to modify CNC PLC parameters.

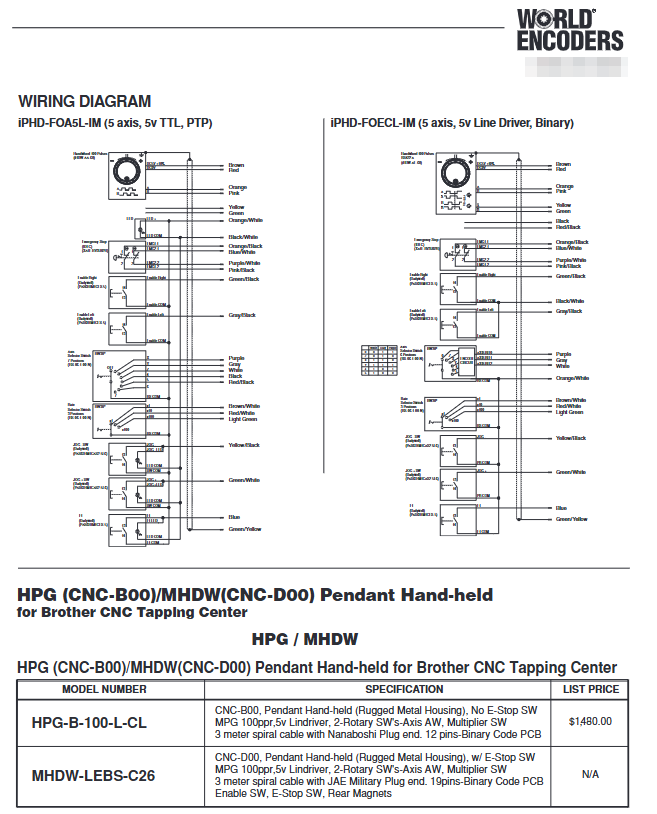

Wiring compatibility: Using wire driven output (26LS31), the receiver end should use 26LS32. If the original system is single ended TTL, it is necessary to confirm whether the receiving board supports differential signals.

Shell size and installation: The position of the back magnet is the same as that of Euchner, which can be directly adsorbed; The height and color of the emergency stop button are consistent.

Functional differences: The iPHD-FOECL-IM provides two additional enable switches (left and right) and a jog button, while some older models of the Euchner may not have these features. If the CNC system does not require it, the corresponding signal can be suspended or logically blocked.

Test checklist after replacement:

Rotate the handwheel, and the CNC coordinates should move smoothly (without jumping or losing steps).

Test each axis gear selection and confirm the corresponding axis movement.

Test the magnification switches (x1, x10, x100) and confirm that the movement distance is correct.

Test safety functions such as emergency stop, enable, and jog.

Common fault codes and troubleshooting (combined with CNC system)

The following is a summary of typical on-site problems and solutions:

Possible causes and troubleshooting steps for the fault phenomenon

Rotate the handwheel, but the shaft does not move. 1. The 5V power supply is missing or the voltage is low

2. A/B signal open circuit

3. CNC parameters are not enabled for MPG measurement plug end 5V; use an oscilloscope to observe A/B waveforms; Check for pulse counting on the CNC diagnostic interface

Swap A+and B+by reversing the direction of movement, or modify the MPG direction in the CNC parameters

Mobile distance too large/too small magnification switch signal error; The pulse number setting does not match (CNC preset is 100PPR, but it is actually 100PPR), and the measurement magnification knob switches on and off at each level; Confirm that the CNC parameters are consistent with the PPR of the handwheel

Poor grounding of shaft vibration shielding during rotation; Check if the encoder grating is contaminated and if the shielding layer is single ended grounded; Disassemble the handwheel to clean the encoder

The emergency stop alarm cannot be eliminated. If the emergency stop contact is not closed (normally closed circuit is disconnected), measure the resistance at both ends of the emergency stop switch, which should be 0 Ω. If infinite, check if the button is pressed but not reset or if there is an internal disconnection

Invalid enable, damaged enable switch; CNC enables logical configuration with opposite measurement to enable light grip position conductivity; Viewing CNC ladder diagram enable conditions

Preventive maintenance and spare parts inventory recommendations

As a frequently used terminal device, it is recommended to maintain the iPHD series operation box according to the following cycle:

Component cycle content

Check the outer skin of the spiral cable for cracks and broken strands every 6 months; Test the continuity after stretching

Drip an appropriate amount of contact cleaner (such as CRC 2-26) into the rotary switch every year and rotate it dozens of times

The emergency stop switch is tested annually to ensure that it is completely disconnected when pressed and fully conductive when reset

The encoder should be disassembled every 2 years or when there is shaking, and the grating and LED surface should be cleaned with a dust-free cotton swab and alcohol

Check if the backplate magnet is loose as needed and re bond it using epoxy resin

Recommended spare parts:

At least one spiral cable (EE-6C004-A01)

1-2 emergency stop switches (IDEC XA1E-BV3U02R)

Enable switch (Dailywell PAS6B1M1CES-5) with 1 on each side

1 set each of Amp or Amphenol connector kits (for on-site emergency wiring)

26LS31 or 26LS32 driver/receiver chip (for circuit board maintenance)
