Handheld electronic handwheel (MPG) is the core equipment for manually controlling axis movement in CNC machine tools, machining centers, robots, and automated production lines. The iPHD series (as well as iHWD, HPG, MHDW) operation box integrates emergency stop switch, enable switch, axis selection knob, magnification switch, jog button, and 100PPR incremental encoder, widely compatible with mainstream CNC systems such as FANUC and Brother. However, due to on-site oil pollution, vibration, cable dragging, and knob wear, such handwheels are prone to signal loss, axis selection failure, emergency stop false alarms, and other malfunctions. This article is based on the official technical specifications of the iPHD series, combined with practical maintenance experience, to systematically sort out the typical fault diagnosis methods, signal measurement standards, interchangeable compatibility selection, and connector self-made points of this series of operation boxes, providing a practical technical guide for equipment maintenance engineers.

Overview of product series and identification of core models

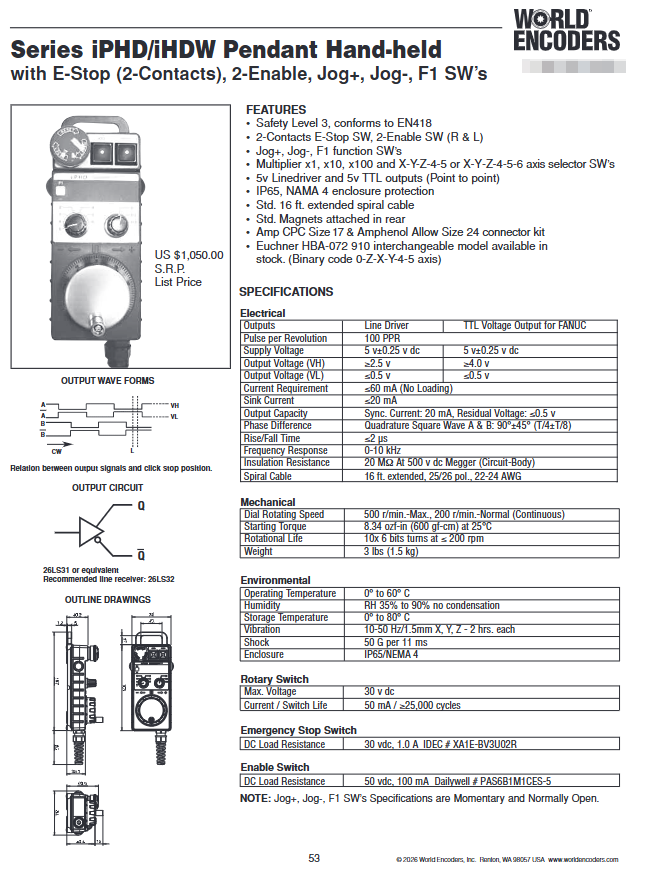

The protection level of the iPHD series shell reaches IP65/NEMA 4, with oil and dust resistance. The back is equipped with a magnet that can be directly attached to the machine panel. The main models and feature comparisons are as follows:

Model Output Type Axis Number Amplification Emergency Stop Contact Enable Switch Compatibility Features

IPHD-FOE6L-IM line driver (26LS31) 6-axis x1/x10/x100 2 contact left+right standard point-to-point output

IPHD-FOA5L-IM TTL (5V) 5-axis x1/x10/x100 2 contact left+right suitable for FANUC TTL interface

IPHD-FOECL-IM line driver 5-axis (binary code 0-Z-X-Y-4-5) with the same 2 contacts left and right fully interchangeable Euchner HBA-072 910

IHDW-BPE5L-IM wire drive 5-axis no magnification knob 2 contacts left+right IPG Photonics proprietary model

HPG-B-100-L-CL line drive shaft selection+magnification dual knob with or without emergency stop, Brother CNC special (metal shell)

The most common problem encountered on site is that a certain model is discontinued or has a long supply cycle, and needs to be replaced with another model. Among them, iPHD-FOECL-IM is designed as a direct substitute for Euchner HBA-072 910, with the same knob coding logic (binary code, axis sequence 0-Z-X-Y-4-5), matching wiring definitions, and can be replaced in situ.

Electrical Signal Specification and Rapid Measurement Methods

Before maintenance, it is necessary to master the core output characteristics of MPG. The iPHD series uses a 100 pulse/rev incremental encoder to output A/B two-phase orthogonal square waves with a phase difference of 90 °± 45 °. The voltage standards for different output types are as follows:

Parameter line driven output (26LS31) TTL output (5V)

Power supply voltage 5V ± 0.25V DC 5V ± 0.25V DC

Output high level (VH) ≥ 2.5V ≥ 4.0V

Output low level (VL) ≤ 0.5V ≤ 0.5V

Absorption current ≤ 20mA ≤ 20mA

Frequency response 0~10kHz 0~10kHz

Line driven output (differential signal) is suitable for long-distance transmission (strong anti-interference ability), and the recommended receiver is 26LS32. TTL output is a single ended signal, with a transmission distance generally not exceeding 3 meters.

On site rapid testing steps

Power supply inspection: Disconnect the handwheel from the CNC and measure whether the 5V power supply is stable (4.75-5.25V) at the cable plug. A common fault is that the 5V power supply provided by the CNC side has insufficient load capacity, resulting in a voltage drop below 4.5V during rotation and pulse loss.

No load output waveform test: Connect the handwheel to a 5V power supply and use an oscilloscope to measure between A+and GND. Slowly rotate the handwheel and you should see a 0-5V square wave (TTL) or a -2.5V~+2.5V differential (line driven). If there is no output, first check if the encoder grating disk is broken (with abnormal noise during rotation) or if the LED light source is aging.

Phase detection: Measure both A and B signals simultaneously, with A phase leading B phase by 90 ° during forward rotation; When reversing, B-ultrasound A. If the phase is incorrect or the duty cycle deviation is too large (normally should be 50% ± 10%), the encoder or signal processing circuit is faulty.

Insulation resistance: When measuring the circuit to the outer shell with a 500V megohmmeter, it should be ≥ 20M Ω. If it is lower than this value, it indicates that there is water ingress or wire damage inside, and there is a risk of leakage.

Troubleshooting of rotary switch and contact parameters

The iPHD series operation box includes multiple rotary switches: axis selection switch, magnification switch E-Stop、 Enable switches, jog buttons, etc. The electrical lifespan and rated values of different switches vary greatly.

3.1 Axis selection and magnification knob

Rated value: maximum voltage 30V DC, current 50mA, mechanical life ≥ 25000 times.

Typical faults: Unclear knob positioning, increased contact resistance leading to CNC misidentification of axis number or magnification.
