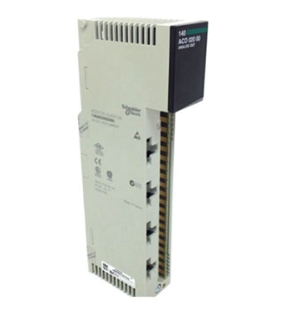

Schneider Modicon Quantum 140ACO02000 Analog Output Module

Schneider Modicon Quantum 140ACO02000 Analog Output Module

Product basic information

Product positioning: It is an analog output module belonging to Schneider Modicon Quantum automation platform, with 4 output channels and an output signal type of 4-20 mA 12 bit bipolar current. It is suitable for analog control of external devices in industrial automation systems. The document was released on July 13, 2022.

Core logo: As a Green Premium product, it complies with sustainable development standards and has passed certifications such as CE, FM Class 1 Division 2, cUL, etc., meeting industrial environmental compliance requirements.

Core technical specifications

（1） Output and precision parameters

Category specific parameters

Output configuration includes 4 analog outputs, requiring 4 output word addresses; Output range 4-20 mA, corresponding to 0-4096 counts, 12 bit resolution

Accuracy Performance - Absolute Accuracy Error: ± 0.20% of full scale at 25 ° C (77 ° F)

-Linearity: ± 1 LSB

-Temperature drift: ± 0.004%/° C at full scale, maximum ± 0.007%/° C

The response speed update time is 3 ms, and the establishment time to reach the final value ± 0.1% is 900 µ s

Fault detection supports 4-20 mA circuit open circuit fault detection

（2） Electrical and Power Consumption

Circuit and power supply: Circuit voltage is 12-30 V DC, external power supply requires 12-30 V DC; Maximum voltage drop<30 V at 20 mA output

Bus and power consumption: Bus current requirement is 480 mA, maximum power consumption is 5.3 W

Channel isolation: Channel isolation between 500 V AC (47-63 Hz), 750 V DC withstand for 1 minute

（3） Environmental adaptability

Working temperature: 0-60 ° C (32-140 ° F)

Storage temperature: -40-85 ° C (-40-185 ° F)

Relative humidity: 95% (without condensation)

Working altitude: ≤ 5000 m (16404.2 ft)

Electromagnetic compatibility: In the frequency range of 80-2000 MHz, the anti electromagnetic field strength is 9.14 V/m (equivalent to 10 V/m), which complies with the IEC 801-3 standard

Physical and installation properties

Size and weight: module net weight 0.66 pounds (0.3 kg); Package 1 (PCE type) measures 1.89 inches (4.8 cm) in height, 6.50 inches (16.5 cm) in width, and 12.40 inches (31.5 cm) in length; Package 2 (S03 type) contains 7 products, weighing 8.01 pounds (3.635 kg), with dimensions of 11.81 inches (30.0 cm) x 11.81 inches (30.0 cm) x 15.75 inches (40.0 cm)

Installation adaptation: The module format is standard and compatible with Modicon Quantum series 2, 3, 4, 6, 10, and 16 slot racks (corresponding rack size drawings provided)

Local indication: Equipped with multi-color LED indicator lights -1 green LED (bus communication activated), 1 red LED (external fault), 4 green LEDs (corresponding to channel open), 4 red LEDs (corresponding to channel fault)

Ordering and logistics information

Category details

Product Category 18155-QUANTUM I/O&POWER SUPPLIES Category

Order identification discount plan PC21, Global Trade Item Code (GTIN) 3595861126572

Packaging specifications: Each package contains one product, with a packaging weight of 16.12 ounces (457.0 g); S03 combination packaging includes 7 units

The logistics attribute has a country of origin of France and does not support returns

Environmental Protection and Compliance

Environmental certification:

RoHS compliance: Actively comply with the EU RoHS directive (products beyond the scope of EU RoHS laws) and provide an EU RoHS declaration; Comply with Chinese RoHS regulations and provide a Chinese RoHS declaration; Contains RoHS exemption information, product does not contain mercury

REACh: Provide a REACh declaration that does not contain substances of high concern (SVHC) exceeding the threshold

Special Reminder: Compliant with Proposition 65 in California, USA, warning that "the product may contain lead and lead compounds that are known to cause cancer, birth defects, or other reproductive hazards." For more information, please visit www.P65Warning.ca.gov

Waste disposal: According to WEEE requirements, when scrapped in the EU market, specific waste collection channels must be used for disposal, and it is prohibited to put it into ordinary garbage cans

Environmental document: Provide product environmental profile and end of life information
