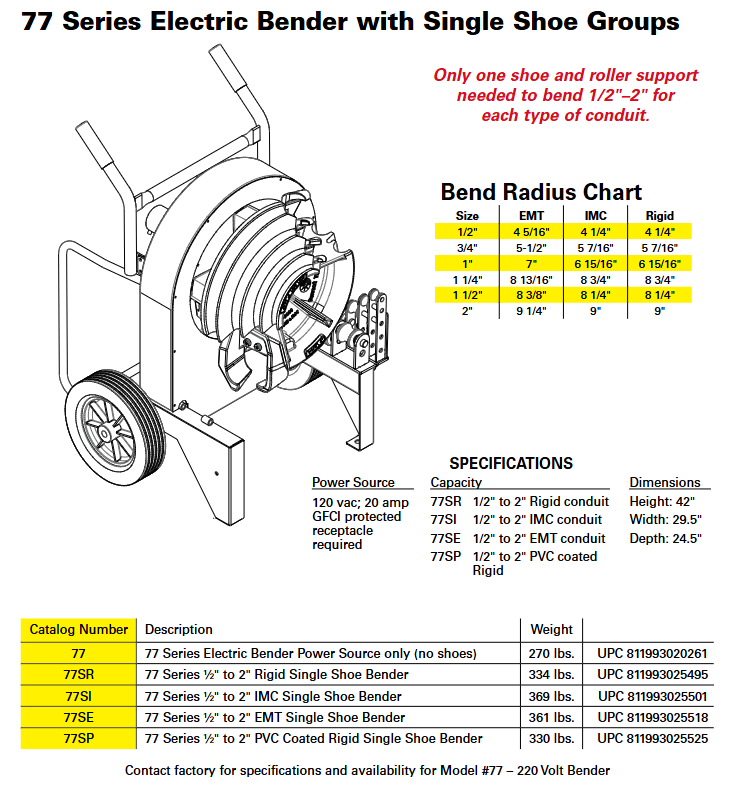

Product Overview

The Current Tools 77 series electric pipe bending machine is a professional equipment designed specifically for industrial pipeline installation. It features "single shoe adaptation to multiple specifications, sturdy structure, and easy maintenance", and can meet the bending needs of different types of pipelines (EMT, IMC, Rigid, PVC coated Rigid) ranging from 1/2 "to 2". It is widely used in construction, electrical installation, and other scenarios. The product is manufactured in the United States, with strict quality control and a two-year warranty. The core electrical components are the same as the 747 Omni of the same brand ™ The pipe bending machine is interchangeable, reducing maintenance costs.

Product model and core configuration

（1） Host model classification

Host model, compatible with pipeline type, including component weight, UPC code

77 without (power unit only) electric power source (without boots and roller bracket) 270 lbs 811993020261

77SR 1/2 "-2" Rigid Pipe Power Unit+Rigid Single Shoe+Rigid Roller Bracket 334 lbs 811993025495

77SI 1/2 "-2" IMC pipeline power unit+IMC single boot+IMC roller bracket 369 lbs 811993025501

77SE 1/2 "-2" EMT pipeline power unit+EMT single boot+EMT roller bracket 361 lbs 811993025518

77SP 1/2 "-2" PVC coated Rigid pipe power unit+PVC coated Rigid single boot+corresponding roller bracket 330 lbs 811993025525

（2） Single boot model and components

All single boot sets include "single boot+roller bracket+metal storage box" and are compatible with Greenlee ®  five hundred and fifty-five ®  The classic pipe bending machine has the following specific configuration:

Shoe set model, compatible with pipeline type, component details (including model), weight of each component, total UPC code

700SR 1/2 "-2" Rigid 1. Single boot (2-3000); 2. Roller bracket (2-4000); 3. Metal storage box (8-0501) single boot 51 lbs; Roller bracket 13 lbs; Storage box 36 lbs 811993025419

700SI 1/2 "-2" IMC 1. Single boot (2-3000); 2. Roller bracket (2-4100); 3. Metal storage box (8-0501) single boot 51 lbs; Roller bracket 48 lbs; Storage box 36 lbs 811993025426

700SE 1/2 "-2" EMT 1. Single boot (2-3100); 2. Roller bracket (2-4200); 3. Metal storage box (8-0501) single boot 43 lbs; Roller bracket 48 lbs; Storage box 36 lbs 811993025433

700SP 1/2 "-2" PVC coated Rigid 1. Single boot (2-3200); 2. Roller bracket (2-4300); 3. Metal storage box (8-0501) with a single boot weighing 47 lbs; Roller bracket 13 lbs; Storage box 36 lbs 811993025440

Special note: When bending 1 1/2 "and 2" Rigid aluminum pipes, an IMC single shoe roller bracket (model 2-4100) is required.

Core technical parameters

（1） Basic parameters

Parameter category specific specifications

Power requirement: 120V AC, 20A GFCI protective socket (220V version requires consultation with the factory)

Equipment dimensions: height 42 ", width 29.5", depth 24.5“

The working temperature is not clearly marked (suitable for industrial conventional environments)

Warranty period of two years

（2） Bending radius specifications (classified by pipeline size)

Pipeline size EMT bending radius IMC bending radius Rigid bending radius

1/2" 4 5/16" 4 1/4" 4 1/4"

3/4" 5 1/2" 5 7/16" 5 7/16"

1" 7" 6 15/16" 6 15/16"

1 1/4" 8 13/16" 8 3/4" 8 3/4"

1 1/2" 8 3/8" 8 1/4" 8 1/4"

2" 9 1/4" 9" 9"

Core product features

Structural design advantages:

No PC board design: using simple and reliable electrical components to reduce the probability of electronic failures and improve equipment stability.

Detachable handle: supports doggle bends, suitable for pipeline forming requirements in complex installation scenarios.

Non inflatable wheels: convenient for equipment movement and reduce on-site maintenance frequency.

Compatibility and maintainability:

Shoe set compatibility: All single boots and roller mounts can be adapted to Greenlee ®  five hundred and fifty-five ®  Classic pipe bending machine enhances the versatility of accessories.

Component exchange: Main electrical components and Model # 747 Omni ™ The pipe bending machine is interchangeable, reducing the cost of spare parts procurement.

Easy to maintain: With a simple structure and convenient troubleshooting, basic maintenance can be completed without the need for professional skills.

Manufacturing and Quality:

Made in the United States: Following strict industrial production standards to ensure equipment durability and service life.

Two year warranty: covering the core components of the host, providing users with long-term use guarantee.
