Core functions and protocol support

Supporting protocols: Can run COMLI, MODBUS RTU, Siemens 3964R protocols, and also supports custom serial communication.

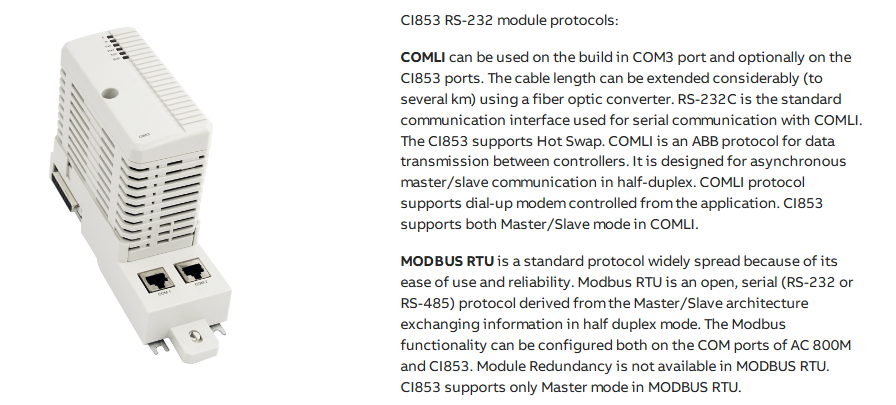

COMLI: It can be used on the built-in COM3 port and CI853 port, based on the RS-232C standard, supports asynchronous master-slave half duplex communication, supports dial-up modem control, and CI853 supports master/slave mode in this protocol.

MODBUS RTU: an open-source serial protocol based on a master-slave architecture for half duplex communication. It can be configured on the COM port of AC 800M and CI853. CI853 only supports master mode in this protocol and has no module redundancy.

Siemens 3964R: Can be used on the built-in COM3 port and CI853 port, requiring a standard RS-232C/485 communication channel.

Features: Supports hot swap and can be used in conjunction with HI controllers.

Basic information and parameters

The product code is 3BSE018103R1 (CI853K01), with 2 channels and a transmission speed of 75-19200 b/s. It supports line redundancy and module redundancy.

Up to 12 units can be connected on the CEX bus, with an RJ-45 female connector (8-pin) and a typical 24V power consumption of 100 mA.

Environment and Certification

The working temperature range is+5 to+55 ° C (+41 to+131 ° F), and the storage temperature range is -40 to+70 ° C (-40 to+158 ° F).

The protection level is IP20 (according to EN60529, IEC 529), with CE mark, ABS, BV, DNV-GL, LR classification certification, and complies with RoHS (Directive/2011/65/EU (EN 50581:2012)) and WEEE (Directive/2012/19/EU) standards.

Size and weight

Height 185 mm (7.3 in.), width 59 mm (2.3 in.), depth 127.5 mm (5.0 in.), including base weight 700 g (1.5 lbs).

Specific industrial protocol scenarios

Siemens equipment compatibility: Supports Siemens 3964R protocol and can communicate with Siemens equipment that uses this protocol. It is suitable for hybrid control systems in factories that have both ABB and Siemens equipment, ensuring collaborative work between different brands of equipment.

Custom communication requirements: It can support custom serial communication, meet the non-standard communication protocol requirements of some special industrial equipment, and provide flexibility for equipment integration in specific production processes, such as data exchange of certain customized production equipment.

High reliability demand scenario

Redundancy design application: Supports line redundancy and module redundancy, suitable for industrial scenarios that require high communication reliability, such as power systems, large chemical plants, etc. When a communication line or module fails, it can automatically switch to the redundant line or module to ensure uninterrupted communication.

Hot swappable support: Modules can be plugged and unplugged without interrupting system operation, facilitating equipment maintenance and replacement without shutting down the production line, improving system availability, and suitable for industrial scenarios of continuous production, such as automotive manufacturing production lines.
