Product overview

ABB CP405 is an industrial grade touch screen control panel designed specifically for discrete automation and various industrial HMI (Human Machine Interface) applications, suitable for industrial environments that require intuitive operation and monitoring. It adopts 7-inch TFT graphical display and resistive touch screen, which needs to be programmed and operated with CP400PB Panel Builder 400 software to achieve complex control logic and data visualization functions.

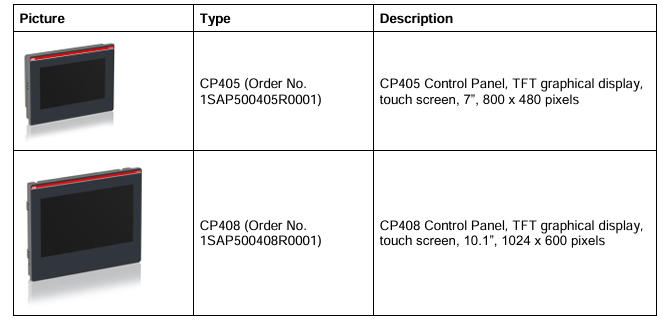

The order number of this product is 1SAP500405R0001, which complies with multiple international standards, including EMC Directive 2004/108/EC, RoHS Directive 2011/65/EC, etc. It has CE certification and can operate reliably in industrial environments.

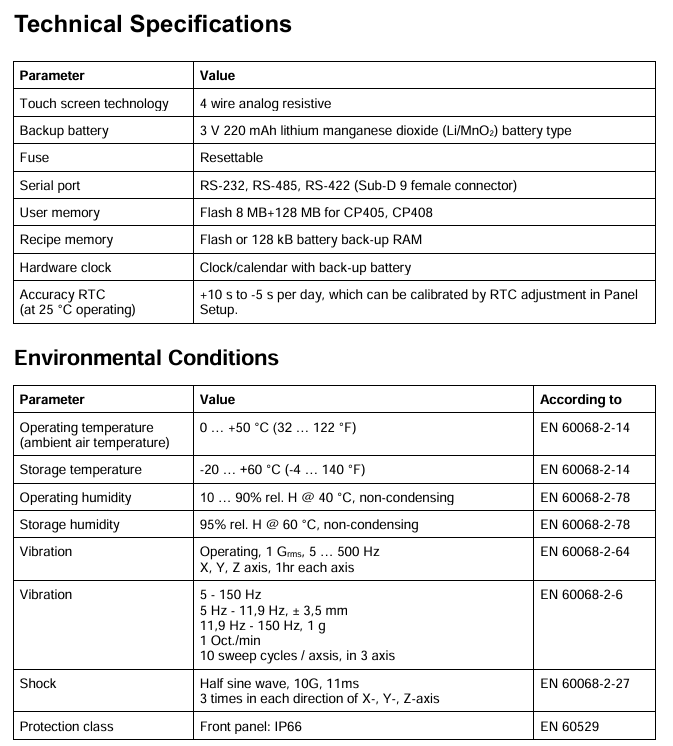

Technical Parameter

Display and Touch

Screen specifications: 7-inch WVGA TFT LCD display screen with a resolution of 800 × 480 pixels, supporting 65536 colors, and capable of presenting various data and graphics clearly.

Touch screen: Adopting a 4-wire analog resistive touch screen, supporting over 1 million touch operations to ensure long-term reliability.

Backlight: LED backlight with a brightness of 250 cd/m ², with a backlight lifespan of up to 20000 hours at 25 ° C, and the brightness can be adjusted through the touch panel.

**Viewing angle * *: In industrial indoor environments, the vertical viewing angle is 140 ° and the horizontal viewing angle is 130 °, making it easy to view screen content from different angles.

Storage and Clock

User memory: Contains 8 MB NOR Flash and 128 MB NAND Flash, providing ample space for application and data storage.

Recipe Memory: Supports Flash storage or 128 kB battery backup RAM for convenient storage and retrieval of various recipe data.

Real time clock: Equipped with hardware clock/calendar function, powered by a 3 V 220 mAh lithium manganese dioxide (Li/MnO ₂) battery. Even when not in use and the ambient temperature is 20 ° C, the battery capacity can still maintain 95% after 5 years, ensuring accurate clock operation.

Interface and power supply

Serial port: equipped with RS-232, RS-485, RS-422 serial ports (Sub-D 9 female connector), can communicate with PLC or other controllers.

USB port: 1 USB Type A port, used to connect typical peripherals such as printers; 1 USB Type B port for programming.

Power supply: Input voltage is 24 VDC ± 10%, maximum power consumption is 10 W.

Weight: The net weight is 0.55 kg, and the total weight is 0.75 kg.

Environment and Protection

Working environment: The working temperature range is 0...+50 ° C (32... 122 ° F), and the working humidity is 10... 90% relative humidity (no condensation at 40 ° C), which can adapt to various environmental conditions in industrial sites.

Storage environment: The storage temperature range is -20...+60 ° C (-4... 140 ° F), and the storage humidity is 95% relative humidity (no condensation at 60 ° C), making it convenient for product storage and transportation.

Protection level: The front panel protection level is IP66 (requires correct installation), which can effectively prevent dust and water from entering.

Anti interference capability: Meets multiple electromagnetic compatibility standards, such as electrostatic discharge immunity testing (8 kV air discharge, 4 kV contact discharge), radiated RF electromagnetic field immunity testing, etc., to ensure stable operation in complex electromagnetic environments.

Functional Features

Software support

Run CP400PB Panel Builder 400 Runtime software, which supports offline and online simulation, facilitating program development and debugging.

It has rich HMI functions, including data acquisition, alarm processing, scheduler, recipe management, user and password management, etc., which can meet the diverse needs of industrial control.

Supports multilingual applications, making it easy to create and manage multilingual applications to meet the usage needs of different regions around the world, including Far Eastern languages.

Provide powerful scripting languages for automated HMI applications, and script debugging capabilities can improve application development efficiency.

Communication ability:

Support communication with AC500/AC500eCo PLC, Motion drivers and other devices;

Recommend using TK407 communication cable (order number 1SAP500467R0001) to connect AC500 series PLC.

Durability:

Backlight lifespan of 20000 hours (at 25 ° C);

The front panel film has a lifespan of 10 years in an environment without direct sunlight at 25 ° C.

Installation and Connection

Installation requirements:

Panel opening size: CP405 is 191.5 × 138 mm, CP408 is 259.5 × 201.5 mm;

Ensure that the installation surface is flat and the gasket is well sealed to maintain IP66 protection.

Wiring:

Power supply: Connect 24 VDC through terminal and ground (terminal 3);

Serial port pin definition: Supports RS-232 (TxD/RxD), RS-485 (±), RS-422 (TxD ±/RXD ±).

Battery maintenance: The built-in non rechargeable lithium battery is used for clock backup and must be disposed of according to local regulations.

Operation and Settings

Panel Settings: Configure display brightness, touch calibration, date and time, communication parameters, etc. through the "Panel Setup" menu.
