Eaton IQ500 Series Multifunctional Power Mete

来源: | 作者:FAN | 发布时间 :2026-03-10 | 13 次浏览: | Share:

Eaton IQ500 Series Multifunctional Power Meter: Complete Technical Guide for Intelligent Power Monitoring

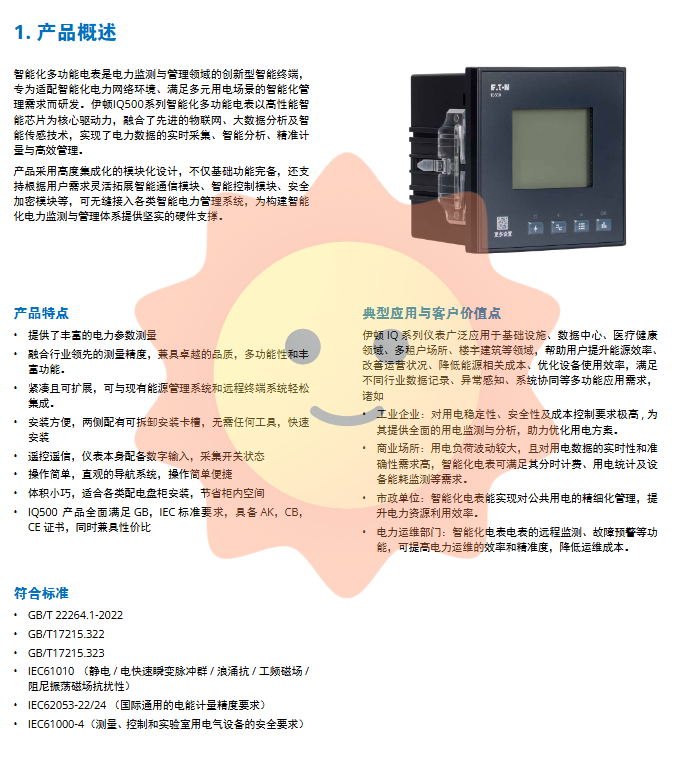

New Era of Intelligent Power Monitoring: IQ500 Product Overview and Technical Positioning

In today's era of digital transformation sweeping across various industries, intelligent management of the power system has become a key link in improving energy efficiency and ensuring power supply reliability. Eaton, as a global leader in intelligent power management, has launched the IQ500 series intelligent multifunctional electric meter with its century long accumulation of electrical technology, which is an innovative response to this trend.

The IQ500 series power intelligent monitoring instrument is an intelligent terminal device designed specifically for medium and low voltage power systems. It is driven by high-performance intelligent chips and integrates advanced IoT, big data analysis, and intelligent sensing technologies to achieve real-time collection, intelligent analysis, precise measurement, and efficient management of power data. This product adopts a highly integrated modular design, which not only has complete basic functions, but also supports flexible expansion of intelligent communication modules, intelligent control modules, security encryption modules, etc. according to user needs. It can seamlessly integrate into various intelligent power management systems, providing solid hardware support for building an intelligent power monitoring and management system.

The application scenarios of Eaton IQ500 are extremely wide, from industrial enterprises with strict requirements for electricity stability and safety, to commercial places with large fluctuations in electricity load, to municipal units that require refined management of public electricity, and power operation and maintenance departments that pursue improvement in operation and maintenance efficiency. IQ500 can provide customized power monitoring solutions. It helps users improve energy efficiency, operational conditions, reduce energy related costs, optimize equipment utilization efficiency, and meet the multifunctional application needs of different industries in data recording, anomaly perception, system collaboration, and other aspects.


Compliance with model system and standards

2.1 Product Model Description

The IQ500 series adopts a concise and clear model coding system, with the basic model being IQ500A2, corresponding to the order number IQ500A2001. This model system facilitates quick identification and selection by users, ensuring accuracy in procurement and application.

2.2 Follow the standard system

IQ500 strictly follows authoritative domestic and international standards in the design, production, and testing processes to ensure product performance, safety, and reliability

National standard (GB/T):

GB/T 22264.1-2022 (Installed Digital Display Electrical Measuring Instruments)

GB/T17215.322 (Special Requirements for AC Measuring Equipment)

GB/T17215.323 (Special Requirements for AC Measuring Equipment)

International Electrotechnical Commission (IEC) standards:

IEC61010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use)

IEC62053-22/24 (internationally recognized accuracy requirements for electrical energy measurement)

IEC61000-4 (Electromagnetic Compatibility Series Standards)

The product has obtained AK certificate (based on IEC62053-22/24, IEC61000-4) and CB certificate (based on IEC61010), indicating that its performance and safety have been internationally recognized.


Core technical features and functional architecture

3.1 Product Function Panorama

As a powerful power monitoring instrument, IQ500's functional architecture can be divided into six core modules:

Monitoring function: comprehensively collect operating parameters of the power system, including three-phase phase voltage and average value, three-phase line voltage and average value, three-phase current and zero sequence current, three-phase active/reactive/apparent power, three-phase power factor and system power factor, system frequency and other key indicators.

Electricity metering: Implement multi-dimensional electricity metering, including total active/reactive/apparent electricity metering, active/reactive/apparent electricity metering for each phase, total active/reactive electricity metering in both forward and reverse directions, cumulative reactive electricity metering in four quadrants, and time-based multiple rate electricity metering. The device can record electrical measurements for 12 transfer cycles.

Power Quality Analysis: In depth analysis of power quality indicators, covering three-phase voltage/current imbalance, 2-31st harmonic component occupancy rate of voltage/current, total distortion rate of voltage/current harmonics, effective value of voltage/current fundamental wave, fundamental power and fundamental power factor, fundamental active/reactive power, etc.

Demand and Extreme Value Statistics: Real time statistics of three-phase current, total active/reactive/apparent power demand, recording the maximum demand for the current settlement cycle in a timely manner, and traceable to the maximum demand records for three transfer cycles. Simultaneously record the maximum/minimum values and occurrence time of each power parameter.

Event recording and alarm: Supports out of limit alarm detection (upper/lower limit monitoring), can monitor parameters such as voltage, current, active/reactive/apparent power, power factor, frequency, etc. Each monitoring object can generate out of limit SOE and return SOE, with a maximum of 32 out of limit alarm events recorded.

Input/output control: equipped with 4 passive switch inputs, capable of recording up to 32 switch SOE events; Supports 2-channel relay control output, enabling remote control and linkage protection.

3.2 Detailed explanation of time-sharing billing function

IQ500 has powerful time of use billing capabilities to meet the refined management needs under complex electricity pricing policies

Flexible configuration of rates and time periods: up to 4 rates, 12 time periods, 8 time period tables, 12 annual time zones, 90 public holidays can be set, and a weekly holiday time period table can be set.

Priority execution mechanism: Prioritize the execution of the time period table used for public holidays, followed by the time period table used for weekly holidays, and finally execute the time period table used for each time zone.

Dual switching mechanism: It has two sets of time zone tables, two sets of daily time period tables, and two sets of public holiday tables, and can automatically switch at set time points to adapt to seasonal or policy based electricity price adjustments.

3.3 Data Freeze Function

IQ500 supports multiple data freezing modes, providing a foundation for data analysis and auditing:

Periodic timed freezing: Based on the set freezing time, achieve timed freezing of electricity data on a monthly, daily, or hourly basis.

Instant Freeze: Immediately generate a freeze record after receiving the instant freeze command through communication.

Agreement freeze: When two sets of time zone tables switch, two sets of daily time period tables switch, or two sets of public holiday transitions occur, an agreement freeze is triggered once.

Freeze content: including total active power, total reactive power, and total active and reactive power data for each phase.

Storage capacity: The device can record 12 frozen records.

Technical indicators and performance parameters

4.1 Working Parameters

Power characteristics:

Working power supply: 85-265VAC or 85-265VDC (wide voltage input range, suitable for different on-site power supply conditions)

Power consumption: ≤ 2W (low-power design, reduces power supply burden)

Environmental adaptability:

Working temperature: -25 ℃~+70 ℃ (suitable for harsh industrial environments)

Storage temperature: -40 ℃~+85 ℃ (meets transportation and long-term storage needs)

Humidity condition: 95% non condensing (suitable for high humidity environments)

Mechanical characteristics:

Dimensions: 96 × 96 × 78mm (width × height × depth), in compliance with DIN96 × 96 standard

Weight: Segmented LCD display module

Installation method: Panel hole installation, hole size 91 × 91mm

Protection level: Panel IP52, shell IP20 (front panel dustproof and waterproof, internal anti solid foreign object)

4.2 Input/output characteristics

Voltage input:

Rated value: 220VAC

Measurement range: 20VAC~264VAC

Extended measurement range (via PT): 0-42000V

Current input:

Rated value: 5A or 1A (two specifications are optional)

Measurement range: 5A specification 0.05-6A; 1A specification 0.01-1.2A

Continuous overload capacity: 1.2 times the rated current

Instantaneous overload capacity: 20 times rated current, duration<1s

Extended measurement range (via CT): 0-6000A

Frequency characteristics:

Rated value: 50Hz or 60Hz (configurable)

Measurement range: 45-65Hz

Switch input:

Type: Passive Node Optical Isolation Input

Isolation voltage: 1500VDC

Relay output:

Capacity: 250V/5A AC or 30V/5A DC

Purpose: Remote control, alarm output

Transmission output (optional):

Signal: 4-20mA

Load resistance: ≤ 600 Ω

Isolation voltage: 500VDC

4.3 Measurement accuracy

IQ500 achieves industry-leading accuracy levels in all measurement dimensions:

Parameter accuracy level measurement range

Voltage level 0.2 0~42000V

Current 0.2 level 0-6000A

Power factor 0.5 level 0 ≤ | COS φ | ≤ 1

Active power level 0.5 0~756000kW

Reactive power level 0.5 0~756000kvar

Visual power level 0.5 0~756000kVA

Electricity measurement level 0.5 0~9999999.9kWh

Frequency 0.02Hz 45-65Hz

Harmonic S level 2-31st order

4.4 Electromagnetic compatibility performance

IQ500 has adopted various anti-interference measures in the design process, which can operate stably in complex power system environments. Its electromagnetic compatibility performance has reached the international advanced level:

Test project standard code level

Electrostatic discharge immunity GB/T 17626.2-2018 Level 4

Radio frequency electromagnetic field radiation immunity GB/T 17626.3-2016 Level 3

Electrical Fast Transient Pulse Group Immunity GB/T 17626.4-2018 Level 4

Surge immunity GB/T 17626.5-2019 Level 4

Radio frequency conducted immunity GB/T 17626.6-2017 Level 3

Power frequency magnetic field interference test GB/T 17626.8-2006 Level 4

Damping oscillation magnetic field interference test GB/T 17626.10-2017 Level 4

The electrostatic discharge, electrical fast transient pulse group, and surge immunity all reach level 4 (the highest level), ensuring reliable operation in harsh electromagnetic environments.


Communication and networking capabilities

5.1 Communication Interface

IQ500 comes standard with one RS485 communication interface and adopts optical isolation design to ensure communication reliability and anti-interference ability.

5.2 Communication Protocol

Supports two mainstream communication protocols, MODBUS-RTU and DLT645-2007:

MODBUS-RTU: The most widely used communication protocol in the industrial field, facilitating seamless integration with various PLCs, SCADA systems, and energy management platforms.

DLT645-2007: Communication protocol standard for electric energy meters in China's power industry, meeting the regulatory requirements of the power sector for electric energy data collection.

5.3 Communication speed

Supports multiple communication speeds to choose from: 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, to meet different communication distances and reliability requirements.

5.4 System Integration Capability

IQ500 can be connected to computer monitoring systems to achieve remote data collection, parameter setting, control operations, and other functions. It is an ideal terminal device for building intelligent power monitoring systems. Through standard communication protocols, it is easy to access various energy management systems (EMS), building automation systems (BAS), and industrial automation systems.


Installation and Wiring Guide

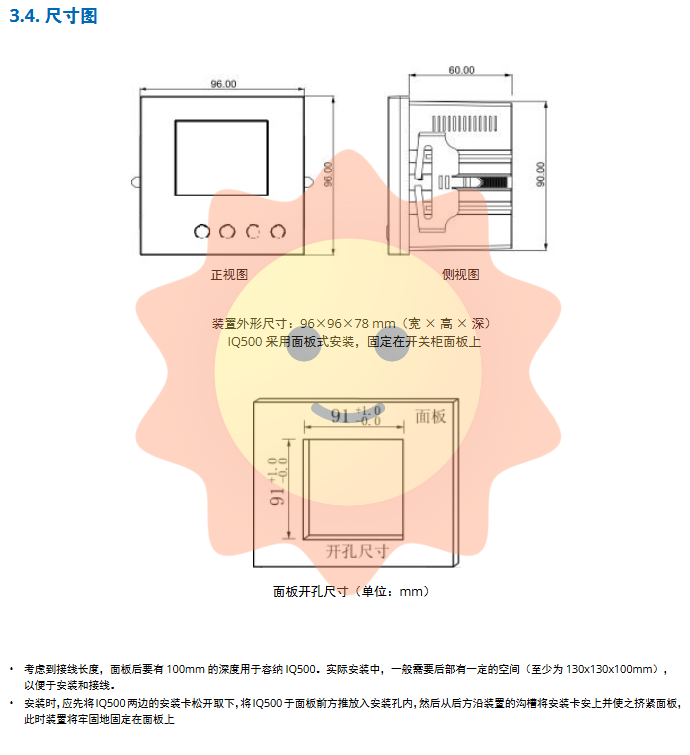

6.1 Mechanical Installation

IQ500 adopts the standard 96 × 96mm panel hole installation method, and the installation process is simple and fast:

Installation steps:

Open a 91 × 91mm square hole on the switchgear panel

Release and remove the installation cards on both sides of IQ500

Push IQ500 into the installation hole from the front of the panel

Install the installation card along the groove of the device from the rear

Push the installation card tightly to squeeze the panel, and the device will be firmly fixed

Space requirements:

Depth requirement behind the panel: ≥ 100mm (considering wiring length)

Suggested installation space: ≥ 130 × 130 × 100mm (convenient for installation and wiring operations)

6.2 Wiring System Method

IQ500 supports multiple wiring methods to adapt to different power system structures:

Three phase four wire 3CT (3P4W 3CT): Suitable for common three-phase four wire power supply methods in low-voltage distribution systems

Three phase three wire system 3CT (3P3W 3CT): suitable for three-phase three wire system, using 3 current transformers

Three phase three wire system 2CT (3P3W 2CT): suitable for three-phase three wire system, using 2 current transformers (two watt meter method)

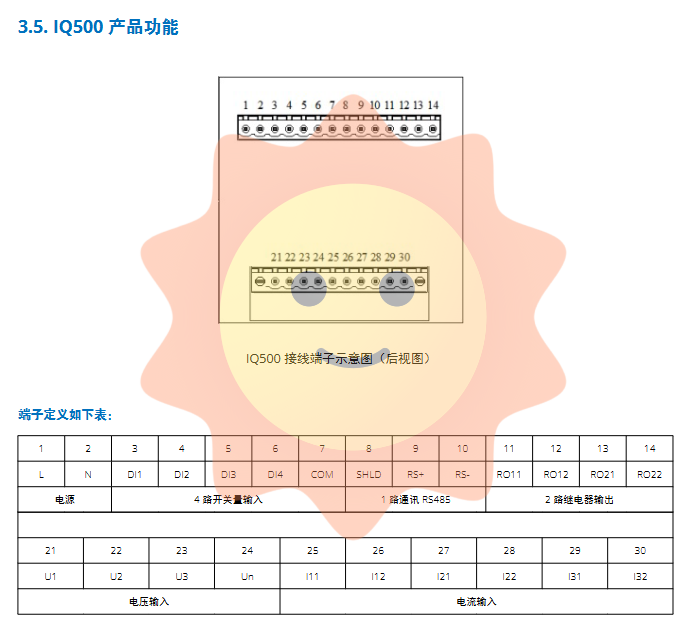

6.3 Detailed Explanation of Terminal Definition

The wiring terminals at the rear of IQ500 are arranged clearly and the functional zoning is clear:

Power terminal (1-2):

1: L (live/positive)

2: N (neutral/negative)

Switch input terminal (3-7):

3: DI1 (1st switch input)

4: DI2 (2nd switch input)

5: DI3 (3rd switch input)

6: DI4 (4th switch input)

7: COM (Public End)

8: SHLD (Shielded Ground)

RS485 communication terminal (9-11):

9: DR+(RS485 A+/positive terminal)

10: RS - (RS485 B -/negative terminal)

11: Empty

Relay output terminals (12-17):

12: RO11 (1st relay normal start)

13: RO12 (common terminal of the first relay)

14: Empty

15: RO21 (2nd relay normal start)

16: RO22 (2nd relay common terminal)

17: Empty

Voltage input terminals (21-24):

21: U1 (A-phase voltage)

22: U2 (B-phase voltage)

23: U3 (C-phase voltage)

24: Un (voltage neutral point)

Current input terminal (25-30):

25: I11 (A-phase current input)

26: I12 (A-phase current outflow)

27: I21 (B-phase current input)

28: I22 (B-phase current outflow)

29: I31 (C-phase current input)

30: I32 (C-phase current outflow)

6.4 Wiring precautions

The voltage input should be connected through a fuse to ensure safety

The secondary side of the current transformer must not have an open circuit, and should be short circuited before wiring

The communication line should use shielded twisted pair cables, with the shielding layer grounded at one end

The switch input is a passive node and requires external power supply

The output capacity of the relay is limited, and large loads need to be expanded through intermediate relays

Human Computer Interaction and Operating Interface

7.1 Display Characteristics

IQ500 is equipped with a dedicated LCD display module, which has the following characteristics:

High definition: segmented LCD display, clear and reasonable information layout

Backlight illumination: Combined with bright backlighting, it enables operators to accurately read data even in poor lighting conditions

Rich information: can display multiple power parameters simultaneously, reducing page flipping operations

7.2 Convenience of Operation

Humanized operation mode: The operation logic conforms to intuition, and the learning curve is smooth

Intuitive navigation system: clear menu structure, simple and easy parameter settings

Quick data retrieval: commonly used data is displayed on the homepage, reducing operational steps

7.3 Indicator lights and status indicators

The front panel is equipped with status indicator lights, which can intuitively display information such as operating status, communication status, alarm status, etc., facilitating on-site inspection and fault diagnosis.


Application scenarios and customer value

8.1 Typical application areas

industrial enterprise:

Industrial enterprises have extremely high requirements for electricity stability, safety, and cost control. IQ500 provides comprehensive electricity monitoring and analysis, helping enterprises optimize their electricity plans, identify high energy consuming equipment, implement precise energy-saving renovations, and reduce production costs.

Commercial premises:

Commercial places such as shopping malls, office buildings, and hotels experience significant fluctuations in electricity load, requiring high real-time and accurate electricity data. IQ500 meets the needs of time of use billing, electricity statistics, and equipment energy consumption monitoring, helping commercial users achieve refined energy management.

Municipal units:

Municipal lighting, public facilities and other electricity consumption points are numerous and difficult to manage. IQ500 achieves refined management of public electricity, improves the efficiency of power resource utilization, and reduces fiscal expenditures.

Data Center:

As an energy intensive facility, data centers have extremely high requirements for power supply reliability and PUE energy efficiency indicators. IQ500 provides comprehensive power quality monitoring and energy consumption analysis to ensure the power supply quality of IT equipment and optimize the energy consumption of refrigeration systems.

Power operation and maintenance department:

The remote monitoring and fault warning functions of IQ500 can improve the efficiency and accuracy of power operation and maintenance, transform passive repair into active operation and maintenance, reduce operation and maintenance costs, and enhance power supply reliability.

8.2 Customer Value Points

Energy efficiency improvement:

By real-time monitoring and analysis of power data, abnormal energy consumption can be detected, energy-saving opportunities can be identified, targeted energy-saving measures can be formulated, and continuous improvement of energy efficiency can be achieved.

Improvement in operational status:

Fully grasp the operation status of the power system, timely identify potential problems, prevent faults, improve power supply reliability, and ensure production and operation continuity.

Cost reduction:

Accurately measuring the electricity consumption of each circuit and time period, providing a data foundation for internal accounting and cost allocation; Reduce basic electricity expenses through load management and demand control; Reduce energy consumption per unit of output value through energy efficiency optimization.

Equipment optimization and utilization:

Analyze the operating load curve of the equipment, evaluate the equipment utilization rate, guide the reasonable configuration and upgrading of the equipment, and avoid energy waste caused by "big horses pulling small cars".

Decision data support:

Based on long-term accumulated historical data, load forecasting, capacity planning, energy efficiency benchmarking and other analyses are conducted to provide scientific decision-making basis for energy management and equipment investment.


Analysis of Product Advantages and Competitiveness

9.1 High precision measurement

Voltage and current achieve a precision of 0.2 level, while power and electrical energy achieve a precision of 0.5 level, meeting the strictest measurement requirements and laying the foundation for precise accounting and refined management.

9.2 Comprehensive functional integration

Integrating monitoring, metering, power quality analysis, demand statistics, event recording, control output and other functions, one meter can be used for multiple purposes, reducing system investment costs.

9.3 Strong anti-interference ability

The electromagnetic compatibility performance reaches level 4 and operates stably in harsh industrial electromagnetic environments, ensuring data reliability and system availability.

9.4 Easy installation and maintenance

Compact size (96 × 96 × 78mm) suitable for installing various types of distribution panel cabinets, saving space inside the cabinets; Self locking panel installation requires no tools and can be quickly installed; Detachable installation card slot design for easy maintenance and replacement.

9.5 Complete standard certification

Fully meet the requirements of GB and IEC standards, possess AK, CB, and CE certificates, ensure product quality and safety, and meet the bidding and application needs of domestic and foreign projects.

9.6 Cost effectiveness advantage

Providing comprehensive functionality and high performance while maintaining a competitive price is an ideal choice for pursuing a balance between performance and cost.

  • UNIOP eTOP20C-0050 Color HMI Touch Panel Data
  • UNIOP MD00R-02-0045 Text-Based Display Module
  • UNIOP eTOP05-0045 Operator Interface
  • UNIOP ETOP11-0050 HMI Color Operator Interface Data
  • UNIOP eTOP306 Industrial Touch Panel
  • UNIOP CP04F-04-0045 HMI Panel
  • UNIOP ETOP308U301 HMI Touch Panel
  • UNIOP MD00R-02-0045 Operator Panel
  • UNIOP ePALM10-0061 Handheld Teach Pendant
  • UNIOP CP05R-04-0045 HMI Operator Panel
  • UNIOP MD02R-04-0045 Text-Based Operator Module
  • UNIOP CP02R-04-0021 Compact Operator Panel
  • UNIOP CP04F-04-1945 Industrial HMI Control Panel
  • UNIOP ECT-16-0045 Communication Module Data Sheet
  • UNIOP EPALM10-0061 Handheld HMI Technical Specifications
  • UNIOP ERT-16-0042 Remote Terminal Unit
  • UNIOP ePAD04-0046 HMI Controller
  • UNIOP BKDR-16 Operator Interface Display
  • UNIOP MKDR-04-004 Control Unit Panel
  • UNIOP ETOP515U3P1 HMI Touch Panel
  • AMAT 0190-15779 Advanced Controller Module
  • Applied Materials AMAT 0010-23715 Mechanical Assembly
  • AMAT 0190-14502 Communication Interface Module
  • AMAT 0195-14157.RMA Power Distribution Module
  • Applied Materials AMAT 0021-84842 Precision Component
  • AMAT 0190-37519 DC Power Supply
  • AMAT 0100-71267 RF Generator Module
  • ALSTOM V4561484-0100 Analog Input Module
  • ALSTOM PIB903 Process Interface Board
  • ALSTOM 029.202.781 Protection Relay
  • ALSTOM 029.148.924 Enhanced Motor Relay
  • ALSTOM 029.148.906 Motor Protection Relay
  • ALSTOM 029.147.908 Transformer Protection Relay
  • ALSTOM 029.144.456 Advanced Feeder Relay
  • ALSTOM 029.144.440 Feeder Protection Relay
  • ALSTOM P40 AGILE MiCOM P141 Feeder Protection Relay
  • ALSTOM I/OBE2 12004-104-00 V1.0.0 I/O Interface Module
  • ALSTOM V4561983-0100 Industrial Control Module
  • ALSTOM VOOB8-B 12004-106-04 V1.0.0 Output Interface Board
  • ALSTOM VPS 12004-102-03 V1.0.0 Voltage Processing Board
  • ALSTOM POS1846 TRVC062333000 CP00000310 Position Control Module
  • ALSTOM DSI1817 TRVC062335000 CP00003934 Digital Input Module
  • ALSTOM CMP1838 TRVCO62345000 CP00005202 Processor Module
  • ALSTOM STO1726KO1 Integrated Control Module
  • ALSTOM I/OBUS2 12004-103-01 VER:V1.2.0 Communication Interface
  • ALSTOM 730475-D ELEMENTS-F2 Cabinet Heater
  • ALSTOM N897163510Q / N897163050Q MODEM and N897163100U Interface Unit
  • ALSTOM N897066 AOVD Analog Output Module
  • ALSTOM CMU 42015-115-00 Communication Unit
  • ALSTOM NRD108028 Digital Protection Relay
  • ALSTOM 42011-106-00 ITC_VIOM_VIOC VER.A01 Interface Card
  • ALSTOM N897093511D DIAGNOSTICA N897093400H Interface Unit
  • ALSTOM N895609510K N895609010R E32OUT Digital Output Module
  • ALSTOM MLU VER.A01 Main Logic Unit
  • ALSTOM NRD109475 8RDA44670G01 SA44670.E Control Module
  • ALSTOM VIIB16-C 12011-105-00 Interface Board Module
  • ALSTOM VCS232 590.043158 Control System Module
  • ALSTOM V0701596-001102 Industrial Control Module
  • ALSTOM N895313512X N95313012D SUP-AL Control Module
  • ALSTOM 12004-102-01 VPS Board Ver.C Power Control Board
  • ALSTOM NRD108034 8RDB44674G01 SA44674.C Control Card
  • ALSTOM N897092520B N897092057Y TRENO N897092500E
  • ALSTOM NRD108033 8RDC44667G01 SA44667.C Control Circuit Board
  • ALSTOM TRVC062105000 TRVC070938000 Series Specification
  • ALSTOM SDK-C0147 12004-101-00 SBS04M17C Control Module Technicals
  • ALSTOM N895313512X Digital Output Module
  • ALSTOM P70035W82V Feeder Protection Relay
  • ALSTOM N897164624A Digital Input Module
  • ALSTOM N897164611M Power Supply Module
  • ALSTOM N897164610L Communication Interface Module
  • ALSTOM N70032702L Protection Relay Module for Power Systems
  • ALSTOM MVAJ21L1GB0771B Voltage Protection Relay
  • ALSTOM MFAC34N1AA0001A Overcurrent Protection Relay
  • ALSTOM MCTI40N1AB0751G Current Differential Protection Relay
  • ALSTOM MCGG22L1CB0753E Overcurrent Protection Relay
  • ALSTOM MVAW 11B1AB0513A Trip Circuit Supervision Relay
  • ALSTOM MVTU 11K1CD0751G Voltage Transformer Supervision
  • ALSTOM MVAJ27L1FB0784D High Speed Tripping Relay Guide
  • ALSTOM MAVS01L1AB0501D Voltage Selection Relay Documentation
  • ALSTOM MVAW11B1AB9007A Trip Circuit Supervision Relay
  • ALSTOM MFAC14K1AA0001A Feeder Protection Relay
  • ALSTOM MCGG62N1CB0753F Generator Protection Relay
  • ALSTOM MAVS01L1AB0751D Protection Relay
  • ALSTOM PIB1201A 3BEC0067 Interface Module
  • ALSTOM V4555724-0100 Voltage Protection Relay
  • BENTLY 1900/65A-01-01-03-00-01 Monitor
  • BENTLY 3500/42-01-00 Proximitor Monitor
  • BENTLY 3500/54-03-00 Temperature Monitor
  • BENTLY 163179-02 Accelerometer
  • BENTLY 3500/94 145988 Display
  • Bently Nevada 1X35668 Replacement Internal Component Analysis
  • Bently Nevada 3500/22M 138607/01 Transient Data Interface
  • Bently Nevada 3500/40M 135489-04 Proximitor Monitor Module
  • Bently Nevada 3500/40M 125680-01 Proximitor Monitor
  • Bently Nevada 3500/15 127610-01 Power Supply Module
  • Bently Nevada 1900/65A-00-01-01-01-01 Machinery Monitor
  • Bently Nevada 3500/65 145988-02 Temperature Monitor
  • Bently Nevada 330876-03-50-00-00 Proximity Probe
  • BENTLY 3500/93 135785-02C System Display Module
  • BENTLY 3701/55 323174-01 ADAPT Input/Output Module
  • BENTLY 3500/42M 140734-99 Modification Module
  • BENTLY 3701/55 289761-01 ADAPT Emergency Shutdown Device
  • BENTLY 3500/42M 140734-02 Proximitor Seismic Monitor
  • BENTLY 3500/15 114M5330-01 Power Supply Module
  • BENTLY 3500/92 136180-01 Communication Gateway
  • BENTLY 3500/93 135799-01 LCD Display Module
  • BENTLY 3500/22 Transient Data Interface Module
  • BENTLY 9200-01-01-10-00 General Purpose Monitor
  • BENTLY 3500/65 145988-02 Temperature Monitor
  • BENTLY 1900/65A 172323-01 General Purpose Monitor
  • BENTLY 3500/22M 138607-01 Transient Data Interface
  • BENTLY 149986-01E 3300 XL 8mm Proximity Probe
  • BENTLY 1900/65A-01-01-03-00-01 General Purpose Monitor
  • BENTLY 136719-01 3500/92 Communication Gateway I/O
  • BENTLY 3500/22-01-01-00 Transient Data Interface Module
  • BENTLY 3500/22M 288055-01 Transient Data Interface
  • BENTLY 131151-01 3500/50 Tachometer I/O Module
  • BENTLY 1900/65-00-01-03-01-01 General Purpose Monitor
  • Bently Nevada 3500/54 133396-01 Overspeed Detection Monitor
  • Bently Nevada 3500/45 176449-04 Position Monitor
  • Bently Nevada 3500/42 140471-01 Proximitor Monitor
  • Bently Nevada 3500/94 147663-01 VGA Display Module
  • Bently Nevada 3500/42M 140482-01 Proximitor Monitor
  • BENTLY 3500/53 133396-01 Relay Module (Alternate Version)
  • BENTLY 3500/20 125744-01 Rack Interface Module
  • BENTLY 3500/53 133388-01 Relay Module
  • BENTLY 3500/15 114M5335-01 Power Supply Module
  • BENTLY 3500/40M 140734-01 Proximitor Monitor Module
