Honeywell Model FS20X Multi-Spectrum Fire and Flame Detector UV/Dual IR/VIS

Honeywell Model FS20X Multi-Spectrum Fire and Flame Detector UV/Dual IR/VIS

Product Overview

FS20X is the latest generation of high-tech multispectral (UV/dual IR/VIS) fire and flame detectors, belonging to the FSX series of advanced technology photoelectric flame detectors. It is based on the highly successful and reliable SS4 detector development, achieving a huge leap in integrating infrared and ultraviolet sensing technologies, and has a validated ultraviolet sun blind sensor. Compared with traditional UV/IR detectors, FS20X responds faster to fires over a wider temperature range without false alarms, and has a longer detection range.

Core Features

Advanced sensing technology: using patented WideBand IR ™  The combination of infrared technology and ultraviolet technology, equipped with visible light sensors to optimize false alarm elimination, and a validated ultraviolet sun blind sensor.

Performance parameters: Detection range exceeding 60 meters (200 feet) (for a 0.1 square meter (1 square foot) heptane reference flame under extremely high sensitivity settings), field of view at a 90 ° horizontal cone (off-axis ± 45 °), selectable detection sensitivity (extremely high (60 meters), high (45 meters), medium (30 meters), low (15 meters)).

Intelligent function: Dual microprocessors ensure high-level fault safe operation and fast and reliable performance; Equipped with a real-time clock that can accurately record event times; FirePic ™  Can store up to 6 pre fire event data; Event logs can record up to 200 events with dates and timestamps.

Communication and output: Built in RS-485 ModBus communication function, non isolated 4-20mA analog output (sink or source), with alarm, fault, and fire verification relays.

Other features: automatic optical path and electronic self-test; The patented electronic module is used for component protection and adopts plug-in termination for easy on-site installation; There are two 25mm conduit inlets or two three-quarters "NPT inlets; Low power consumption, high resistance to radio frequency interference and electromagnetic interference; Obtained multiple certifications such as FM, ATEX/IECEx, INMETRO, CU-TR, etc., meeting SIL 2 requirements, optional certification to EN54-10:2002, with FM 3260 performance.

Advantages and Applications

advantage

Capable of detecting hydrocarbon and non hydrocarbon fuel fires under all environmental conditions, with a wide operating temperature range, unaffected by arc welding, and good false alarm elimination effect.

Low maintenance, stable operation, fault diagnosis, real-time graphics (RTGs) display, and FirePics download can be performed through PC software and interface module (FSIM) ™  And event logs, suitable for various application scenarios.

Application scenarios: including refineries and oil production facilities, offshore platforms, turbine/compressor casings, acetylene processing and storage facilities, oil and gas pipelines and pumping stations, LNG/LPG loading and unloading facilities, natural gas and CNG plants, ethanol, methanol and IPA production and storage facilities, crude oil and gasoline storage and oil depots, aircraft hangars, hydrogen plants and storage facilities, paint and solvent storage facilities, chemical production, storage and loading and unloading facilities, power plants, silane gas storage facilities, etc.

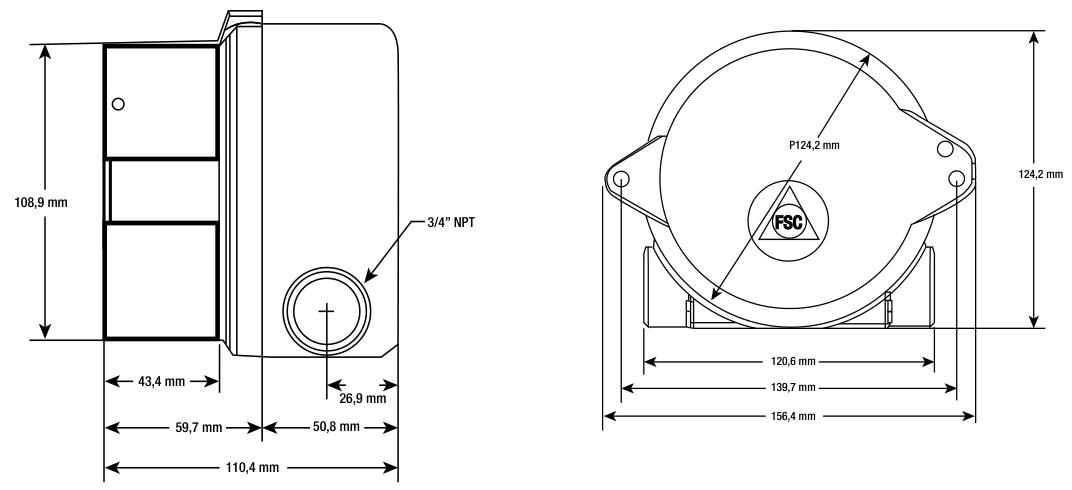

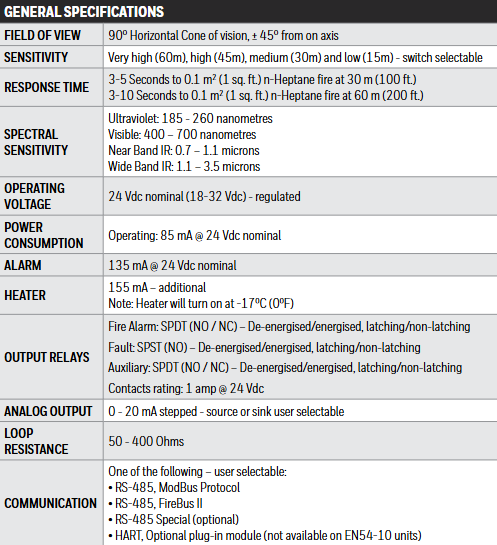

Technical specifications

Project, details

Response time: 3-5 seconds for a 0.1 square meter (1 square foot) n-heptane flame at a distance of 30 meters (100 feet); Response time of 3-10 seconds for a 0.1 square meter (1 square foot) n-heptane flame at a distance of 60 meters (200 feet)

Spectral sensitivity: UV: 185-260 nanometers; Visible light: 400-700 nanometers; Near band infrared: 0.7-1.1 micrometers; Wide band infrared: 1.1-3.5 microns

Working voltage: nominal 24 Vdc (18-32 Vdc) - stabilized voltage

Power consumption operation: 85 mA at 24 Vdc nominal; alarm: 135 mA at 24 Vdc nominal; heater: additional 155 mA (note: heater turns on at -17 º C (0 º F))

Output relay: Fire alarm: SPDT (NO/NC) - power-off/power on, locked/non locked; Fault: SPST (NO) - Power off/on, locked/unlocked; Auxiliary: SPDT (NO/NC) - power-off/power on, locked/unlocked; Contact rating: 1 ampere at 24 Vdc

Analog output: 0-20 mA stepped - source or sink can be selected by the user

Loop resistance 50-400 ohms

Communication: One of the following can be selected by the user: RS-485, ModBus protocol; RS-485，FireBus II； RS-485 dedicated (optional); HART， Optional plugin module (not applicable to EN54-10 devices)

Visual indicator: Green LED: Power supply; Red LED: Alarm; Yellow LED: Fault

Temperature range: Operating: -40 to+85 º C (-40 to+185 º F); Storage: -55 to+110 º C (-67 to+230 º F)

Humidity range: 5-98% relative humidity, no condensation

Vibration: reaching or exceeding MilSpec 810C method 514.2, curve AW12

Wiring: 2.5 mm ² (14 AWG) to 0.326 mm ² (22 AWG); Recommend using shielded cables

Conduit inlet: Standard: Two M25 or two three-quarters "NPT

Shell material: Copper free powder coated aluminum or 316 stainless steel

Shell type: 4X, IP66, and NEMA 4

Certification: FM, ATEX/IECEx, INMETRO, CU-TR, China EX and other certifications, SIL rating: FMEDA can be provided upon request, FS20X certification is 1175a/01 (LPCB), CPR 0832-CPR-F0515
