HONEYWELL Sensepoint XCD Gas Detector

In the field of industrial safety and environmental monitoring, the reliability, accuracy, and ease of maintenance of gas detection equipment are directly related to personnel safety and production continuity. The Sensepoint XCD gas detector ("XCD" pronounced as "Exceed") launched by Honeywell is a high-performance fixed gas detector widely used in hazardous area gas monitoring in industries such as petrochemicals, natural gas, water treatment, metallurgy, etc. due to its modular design, multiple sensor options, non-invasive magnetic rod operation, and international explosion-proof certification. This article will provide a comprehensive and in-depth professional interpretation of the product's technical architecture, sensor types, electrical parameters, installation specifications, calibration process, and fault diagnosis.


Product Overview and Technical Positioning

Sensepoint XCD is a three wire 4-20mA gas detector consisting of a transmitter and a pluggable sensor cartridge, supporting the detection of combustible gases, toxic gases, and oxygen. Its design balances flexibility and safety, suitable for installation environments in Zone 1 or Zone 2 hazardous areas (international standards) and Class I Division 1 or Division 2 (North American standards).

The core design philosophy of this product includes:

Modular structure: The transmitter and sensor are connected in a plug-in manner, and the sensor can be disassembled without power supply (following safety regulations), making it easy to quickly replace on site.

Non invasive operation: Activate the menu outside the transmitter glass window through a magnetic wand, and complete configuration, calibration, and status queries without opening the cover, greatly simplifying the maintenance process.

Multiple output options: Standard 4-20mA analog output (optional source or drain), optional Modbus RTU digital communication, meeting various interface requirements with PLC, DCS, or gas alarm controllers.

Three sets of programmable relays: built-in three sets of relays( 5A@250VAC )It can be configured as alarm 1, alarm 2, and fault output respectively, supporting multiple modes such as normally open/normally closed, power on/off, latch/non latch, etc., making it easy to link external devices such as sound and light alarms, fans, or shut-off valves.


Safety certification and applicable standards

Sensepoint XCD has obtained multiple international and regional certifications to ensure its compliance in different regions

Certification type standard/mark applicable area

ATEX II 2 GD Ex d IIC T6/T5 Gb, Ex tb IIIC T85 ° C Db Europe

IECEx Ex d IIC T6/T5 Gb, Ex tb IIIC T85 ° C Db International

UL Class I, Division 1 & 2, Groups B, C, D; Class II, Division 1&2, Groups E, F, G North America

China GB Ex Ex d IIC T4 China

China Measurement Instrument Type Approval PA (Type Approval) China

Korea KTL Ex d IIC T6/T4 Korea

Performance standards EN60079-29-1 (flammable gases), EN50104 (oxygen), EN45544 (toxic gases) European

In addition, the product complies with ship certifications such as MED (Marine Equipment Directive), ABS (American Bureau of Shipping), CCS (China Classification Society), BV (French Classification Society), etc., and is suitable for marine engineering and ship applications.


Sensor technology and detection range

Sensepoint XCD supports multiple sensing technologies, and users can choose the corresponding sensor probe based on the target gas:

1. Combustible gas sensor

Catalytic Beam: Suitable for common combustible gases such as methane and propane, with a range of 0-100% LEL and a typical lifespan of 36 months. Anti poisoning design enhances stability in environments containing silicon, sulfur, and other substances.

Infrared absorption spectroscopy (NDIR): suitable for gases such as methane, propane, carbon dioxide, etc., with a range of 0-100% LEL or 0-2%/5% Vol, not affected by silicide and sulfide poisoning, with a typical lifespan of over 5 years.

2. Toxic gas sensor

Electrochemical Cell: Suitable for carbon monoxide (0-500ppm), hydrogen sulfide (0-50ppm), hydrogen (0-1000ppm), nitrogen dioxide (0-10ppm), etc. Typical lifespan ≥ 24 months, affected by temperature, humidity, and exposure gas concentration.

3. Oxygen sensor

Electrochemical formula: Range 0-25% Vol, used for monitoring environments with oxygen deficiency (<19.5%) or oxygen enrichment (>23.5%). It should be noted that oxygen sensors are not suitable for monitoring inert environments.

The sensor probe has a built-in recognition chip, and the transmitter can automatically identify the sensor type and range, simplifying the configuration process.

Electrical parameters and wiring specifications

1. Power requirements

ATEX/IECEx/AP version: Supply voltage 16-32Vdc (nominal 24Vdc)

UL/CSA version: Supply voltage 12-32Vdc (nominal 24Vdc)

Maximum power consumption: 5W @ 24Vdc

Start surge current: typical value<800mA, it is recommended to measure with an actual power supply before installation

2. Analog output

Output type: 4-20mA, can be selected as Source or Sink through an internal dip switch

Load resistance: maximum 250 Ω

Special current state:

≤ 1mA: System malfunction

2mA: Start or inhibit state (Inhibit)

3.5mA: Below the lower range limit

4-20mA: Normal measurement

22mA: Over range

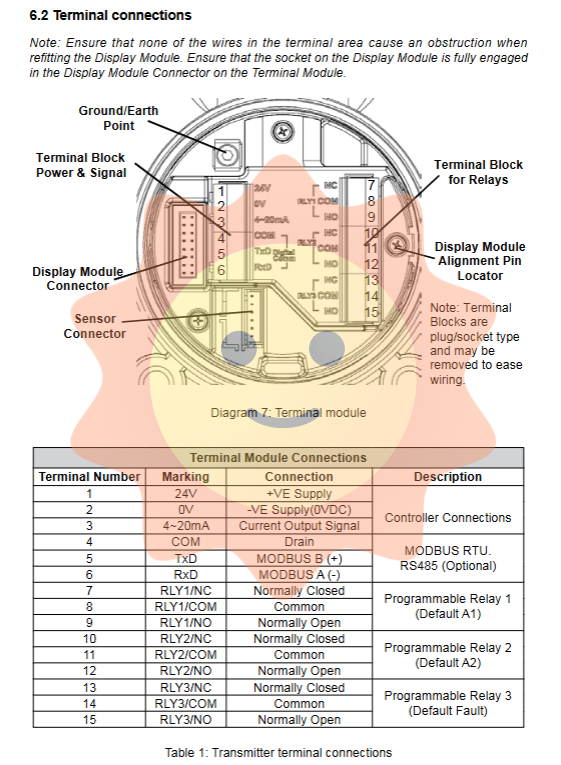

3. Wiring terminals

The internal terminal module of the transmitter provides 15 wiring positions, mainly including:

Terminal 1, 2:24V+, 0V power supply

Terminal 3: 4-20mA signal output

Terminal 4: Common Terminal (COM)

Terminals 5 and 6: Modbus RTU (RS485) A/B line (optional)

Terminal 7-15: The normally open, normally closed, and common terminals of three sets of relays

4. Cable selection and distance calculation

For a 24Vdc power supply system, it is necessary to ensure that the minimum voltage reaching the transmitter meets the requirements. The cable length is affected by the wire diameter and resistance. The example calculation is as follows:

Controller output voltage 24V, detector minimum voltage 16V (ATEX version), allowable voltage drop 8V

Detector working current=5W/16V ≈ 312.5mA

Maximum circuit resistance=8V/0.3125A=26 Ω (13 Ω per core)

Taking a 1.5mm ² cable (resistance 12.7 Ω/km) as an example, the maximum single core length is approximately 13 Ω/12.7 Ω/km, which is approximately 1023 meters.

5. Grounding and shielding

The equipment is equipped with grounding terminals both inside and outside, with internal grounding as the main grounding and external grounding as the auxiliary connection

The cable shielding layer should only be grounded at a single point at the controller or detector end to avoid the formation of ground loop interference


Installation and mechanical structure

1. Installation method

The Sensepoint XCD transmitter is integrated with a mounting plate, which can be directly fixed to the wall or installed on a 40-80mm diameter riser or horizontal pipe through a pipe mounting bracket (SPXCDMTMB). Ensure that the sensor sinter is facing downwards during installation to maintain an IP66 protection level.

2. Environmental adaptability

Temperature range: -40 ° C to+75 ° C (slightly different depending on certification and sensor type)

Humidity range: Continuous 20-90% RH, intermittent 10-99% RH (non condensing)

Pressure range: 80-120kPa (electrochemical sensor) or 90-110kPa (catalytic and infrared sensor)

Protection level: IP66 (weather protection cover must be installed correctly)

3. Explosion proof sealing requirements

When using conduit installation, each cable entry must have a seal fitting installed within 18 inches (457mm). If the sensor is installed remotely, additional sealing components need to be added at the sensor wiring entrance.


Display interface and magnetic rod operation

Sensepoint XCD is equipped with a high brightness LCD display with backlight color indication:

Green constantly on: normal operation

Red flashing: gas alarm

Yellow flashing: device malfunction

The display screen can simultaneously show gas concentration (numbers and bar charts), range units, alarm status, and menu information.

Magnetic rod operation is achieved through three sensing areas:

Short press (≤ 2 seconds): Enter the menu or confirm the option

Long press (≥ 3 seconds): return to the previous level or exit

Three operating modes:

Monitoring Mode: Normal measurement state

Configuration Mode: Set parameters such as range, alarm value, relay action, and suppression current, which can be password protected

Review Mode: View current configuration parameters and cannot be modified

Calibration and maintenance

1. Calibration frequency

Honeywell recommends conducting a gas response test (Bump Test) or comprehensive calibration every 6 months, with the specific frequency determined based on on-site gas exposure, sensor type, and regulatory requirements.

2. Zero point calibration and range calibration

The calibration process requires the use of specialized calibration caps (Gassing Cap, P/N: S3KCAL) and standard concentration gases. The recommended flow rates for different gas types are as follows:

Flammable (catalytic): 1.0-1.5 L/min

Flammable (infrared): 0.4-0.6 L/min

Toxic gas: 0.5-1.0 L/min

Oxygen: 0.5-1.0 L/min

Special precautions:

For hydrogen sulfide sensors, zero calibration must use 20.9% Vol oxygen compressed air, and nitrogen or background air must not be used

The infrared methane/carbon dioxide sensor must undergo range calibration immediately after zero calibration

After calibration is completed, the device will automatically reset the "calibration expiration" warning counter

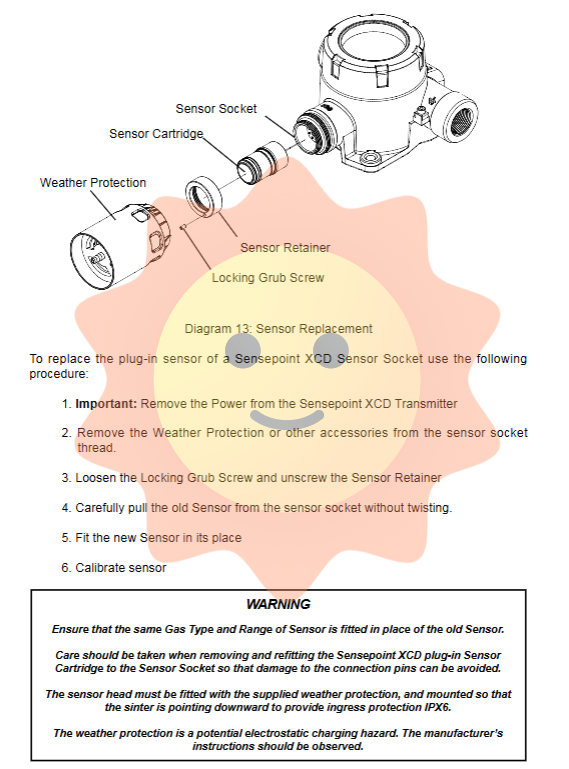

3. Sensor lifespan and replacement

Catalytic combustion sensor: typical lifespan of 36 months (may be shortened due to toxic substances)

Infrared sensor: with a typical lifespan of over 5 years

Electrochemical sensor: Typical lifespan ≥ 24 months (depending on application)

When replacing the sensor, the transmitter power must be disconnected to ensure that the new sensor model and range are consistent with the original sensor.


Fault codes and diagnosis

Sensepoint XCD provides fault diagnosis information through display screen and current output:

Code Description Suggested Actions

Perform zero and range calibration upon expiration of W-01 calibration

The temperature of the W-02 transmitter exceeds the limit and will be cleared after the temperature is restored

W-04/W-05 over range (catalytic only) cleared after confirming no gas leakage

F-01 internal I2C communication fault, power off and restart. If it still exists, replace the transmitter

F-02 sensor failure, replace sensor

F-03 zero drift too large, re execute zero calibration

F-04 sensor model mismatch replaced with correct sensor model

F-06 Power Supply Voltage Low Check for Voltage Drop between Power Supply and Cable


Accessories and Selection

Sensepoint XCD offers a wide range of accessories to adapt to different application scenarios:

Accessory model description

S3KCAL calibration cap, used for calibrating gas inlet

SPXCDWP standard weather protection cover, essential for outdoor installation

SPXCDCC gas collection cone, used for detecting gases lighter than air

SPXCDDMK duct installation kit, suitable for HVAC systems

SPXCDMTMB pipeline installation bracket

SPXCDSDP sunshade/rain cover, suitable for tropical or strong sunlight environments

SPXCDMAG Magnetic Rod (Standard)

SPXCDTMF/TMT/TMO replacement terminal module (differentiated by gas type)

SPXCDDMF/DMT replacement display module (differentiated by gas type)

SPXCDMBUS Modbus Communication Module (optional)


Typical application scenarios

Petrochemical industry: Monitor combustible gases (methane, propane) and toxic gases (H ₂ S, CO) in process unit areas, tank areas, and loading and unloading areas.

Natural gas transmission and distribution: Installed in urban gate stations, pressure regulating stations, and compressor unit areas to monitor natural gas leaks.

Water treatment and sewage treatment plants: Monitor H ₂ S, methane, and oxygen concentrations to ensure the safety of workers.

Metallurgy and steel industry: monitoring CO, H ₂, O ₂, used in areas such as blast furnaces, coke ovens, gas holders, etc.

Ship and Ocean Engineering: Compliant with classification society certification, used for gas monitoring in engine rooms, pump rooms, and storage tank areas.

HVAC and commercial buildings: Monitor CO ₂ or refrigerant leaks in air conditioning systems through duct installation kits.
