In building automation and HVAC systems, the reliability, control accuracy, and installation flexibility of actuators directly affect the operational efficiency and maintenance costs of the system. Honeywell's Modutrol IV series 61 and 62 motors, as high-end representatives in its actuator product line, are widely used in commercial and industrial building air door and valve control scenarios due to their floating point control capability, spring reset option, built-in feedback potentiometer, and robust mechanical structure. This article will provide a comprehensive and in-depth professional interpretation of the technical specifications, model composition, electrical characteristics, feedback mechanism, installation and commissioning, and accessory systems of these two series of motors.

Product positioning and technological advantages

The Modutrol IV series 61 and 62 motors belong to a three wire floating point control actuator, suitable for use with SPDT (Single Pole Double Throw) or floating point output controllers. Its core advantages are reflected in the following aspects:

Dual series parallel design: Series 61 is a standard floating-point control motor, while Series 62 adds an electrically isolated feedback potentiometer on this basis, which can provide axis position indication and support slave control (slaving) Series 90 motor or external control circuit rebalancing.

Spring reset and non reset options: Some models have built-in spring reset mechanisms, which can automatically restore the motor to the preset normal position in case of power failure, suitable for safety first application scenarios.

NEMA 3 protection level: The integrated junction box with liquid tight conduit joints can provide reliable rain and dust protection, meeting outdoor installation requirements.

Dual output shaft design: All models come standard with dual output shafts (slotted and tapped at both ends), supporting the drive of valve linkages from the power or auxiliary end, suitable for flexible configuration of normally open or normally closed valves.

On site adjustable stroke: The stroke can be adjusted on-site within the range of 90 ° to 160 °, adapting to the stroke requirements of different dampers and valves, and the midpoint of the stroke remains unchanged during the adjustment process.

Auxiliary switch and cam standard configuration: All models are equipped with auxiliary switch cam, and auxiliary switch kits can be installed on site to achieve auxiliary equipment control based on motor position.

Model Naming Rules and Selection Guidelines

The Modutrol IV series 61 and 62 motors adopt a systematic model coding method, allowing users to quickly identify product characteristics based on application needs. Taking the standard model as an example, its naming convention is as follows:

M: Modutrol motor

61/62:61 is floating-point control, 62 is floating-point control with feedback potentiometer

8/9:8 indicates 150 lb in non spring reset or 60 lb in spring reset; 9 represents 300 lb in non spring reset

2/4/5:2 indicates dual output shafts and normally closed spring reset; 4 represents non spring reset; 5 represents normally closed spring reset

A/B/C/D/E/F: Number and configuration of auxiliary switches, A is 0 auxiliary switches, B is 1, C is 2, D/E/F corresponds to different configuration combinations

For example, M6184 represents Series 61, 150 lb in torque, non spring reset, dual output shaft. M6284 represents Series 62, 150 lb in torque, non spring reset, dual output shaft.

Feedback mechanism and potentiometer characteristics (Series 62)

The core differentiation advantage of Series 62 motors lies in their built-in electrical isolation feedback potentiometer, which provides axis position signals for slave control or external circuit rebalancing. According to different models, feedback characteristics are divided into the following categories:

1. Linear feedback model (suffix - F)

Typical models: M6274F1009-F, M6284F1070-F, M6294F1009-F, etc

Feedback characteristics: Linear resistance between terminals T-G is 0-10k Ω, linear resistance between T-Y is 10-0k Ω, and constant resistance between Y-G is 10k Ω

Applicable scenarios: Analog control systems that require linear position feedback

2. Nonlinear feedback model (suffix - S)

Typical models: M6284D1000-S, M6284A1030-S, M6285C1001-S, etc

Feedback characteristic: The resistance curve is non-linear and suitable for slave control with Series 90 motors

Special configuration: Some models (such as M6284A1071-S) have built-in sensitivity adjustment function, which can optimize control response

3. Slave control resistor configuration

When Series 62 is used as the main motor to control multiple Series 90 slave motors, corresponding shunt resistors need to be configured according to the number of slaves. The document provides two resistance meters, corresponding to symmetrical and asymmetrical motor configurations, with resistance values ranging from 3500 Ω to 600 Ω, depending on the number of slaves and motor type.

Electrical parameters and control characteristics

1. Power supply and power consumption

The Modutrol IV series 61 and 62 motors support multiple power supply methods, and users can choose to use built-in transformers or external 24V power supply. The typical power consumption is as follows:

Model power consumption (VA)

M6184A 15

M6184B 10

M6184D 15

M6184F 15

The built-in transformer model (such as 50017460-001) supports 24/120/230V multi voltage input and outputs 24V to the motor control circuit, greatly improving on-site adaptability.

2. Control mode

Adopting three wire floating point control (Series 60), three states of "forward rotation hold reverse" are achieved through the combination of R-W/R-1 and R-B/R-2 terminals. The Series 62 model has added a feedback potentiometer to the control system, which can transmit real-time axis position information to the controller.

3. Torque and timing characteristics

The torque level is closely related to the timing, as follows:

Timing time (seconds) 90 ° stroke torque (lb in) 160 ° stroke torque (lb in)

15/30 75 (spring reset) 150 (spring reset)

30/60 60 (spring reset)/35 (non reset) 120 (spring reset)/70 (non reset)

60/120 300 (non reset) 600 (non reset)

120/240-150 (non reset)/300 (non reset)

It should be noted that the "breakaway torque" is the instantaneous maximum torque and is only used to overcome occasional stuck loads. Continuous operation under this condition is strictly prohibited.

Mechanical structure and installation requirements

1. Axle end load capacity

Single end maximum load: 200 lb (90.8 kg)

Maximum combined load: 300 lb (136 kg)

2. Environmental adaptability

Maximum ambient temperature: 150 ° F (66 ° C), suitable for 25% duty cycle

Minimum ambient temperature: -40 ° F (-40 ° C)

Protection level: compatible with liquid tight conduit joints, junction box meets NEMA 3 requirements

3. Installation precautions

The motor must be installed horizontally, and the output shaft should be kept in a horizontal direction

It is strictly prohibited to manually or forcefully rotate the motor shaft with the help of tools, otherwise it will damage the gear set and travel limit contact points

If installation is required in a non vertical position outdoors, a 4074ERU waterproof kit must be added

In high salt spray environments, the installation base and screws should be made of galvanized or cadmium plated materials, avoiding the use of stainless steel or brass

4. Adaptation bracket usage

220738A adapter bracket: can raise the motor shaft by 0.75 inches (19 mm) to match the shaft height of the old Modutrol motor

Applicable scenarios: Q607 external auxiliary switch, all damper linkages, valve linkages except Q5001

Travel adjustment and auxiliary switch setting

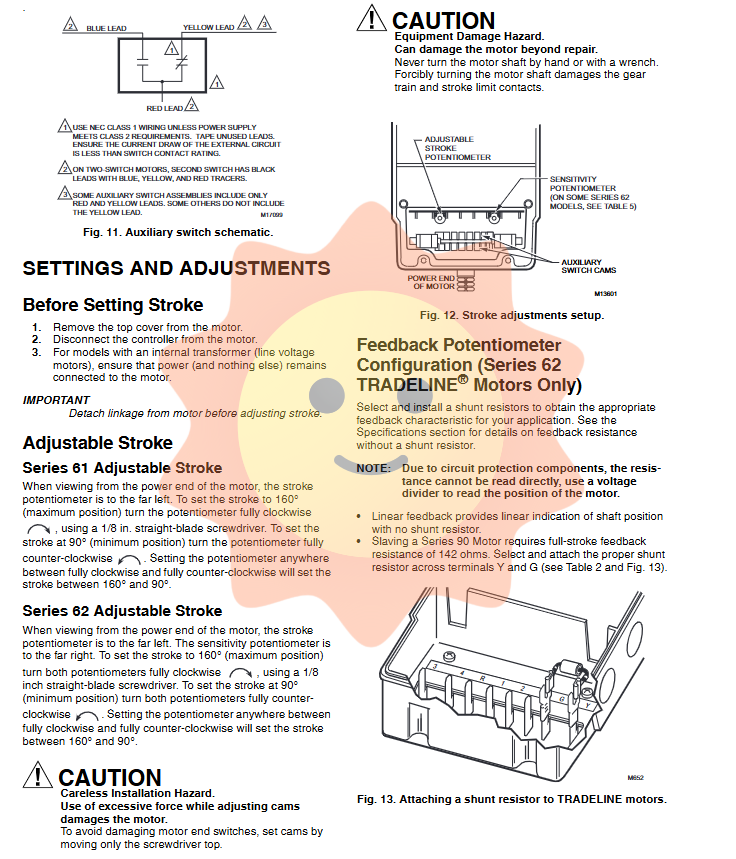

1. Travel Adjustment (Series 61)

The travel potentiometer is located on the left side of the motor power end

Clockwise rotation to maximum: 160 ° stroke

Rotate counterclockwise to minimum: 90 ° stroke

The middle position can achieve any travel setting between 90 ° and 160 °

2. Travel Adjustment (Series 62)

The travel potentiometer and sensitivity potentiometer need to be adjusted synchronously

Both clockwise: 160 ° stroke

Both counterclockwise: 90 ° stroke

3. Auxiliary switch adjustment

The auxiliary switch is driven by a cam, which can be set to a 1 ° or 10 ° action difference

When adjusting, use a 1/8 inch straight screwdriver to rotate the cam slot by slot, avoiding the use of force

The action relationship between switch contacts R-B and R-W varies with the difference setting and needs to be verified according to the actual control logic

Accessory System and Application Expansion

The Modutrol IV series 61 and 62 motors offer a wide range of accessory options to meet diverse application needs

Accessory model and function description

220736A/B internal auxiliary switch kit (1 or 2 switches), can be installed on-site

220738A adapter bracket, lifting shaft height 0.75 inches

220741A screw terminal adapter, replacing quick connect terminals

221455A/7617ADW infinitely adjustable crank arm, supporting downward rotation to avoid interference with the motor base

4074ERU waterproof kit, providing NEMA 3 protection for non vertical installation

50017460-001/-003 Built in transformer, supports 24/120/230V input

Q100/Q5001 valve connecting rod assembly, used to connect V51 butterfly valve or water/steam valve

Q605 damper connecting rod, including motor crank arm

Q607 external auxiliary switch

Q181 auxiliary potentiometer, used to control 1-4 Series 90 slave motors

ES650-117 explosion-proof shell, suitable for explosive environments, needs to be used in conjunction with 7617DM coupling

Typical application scenarios

Variable air volume system: Control the opening of the air valve in the VAV box to achieve precise temperature regulation in the area.

Fan coil unit and air handling unit: cooperate with water valve actuator to regulate the flow of cold and hot water.

Industrial ventilation system: Drive large-sized dampers in smoke exhaust or fresh air systems.

Safety priority application: The spring reset model automatically restores the valve or damper to a safe position when power is cut off.

Slave control system: Series 62 serves as the main motor and synchronously controls multiple Series 90 slave motors through feedback potentiometers and shunt resistors.

Replacement and renovation project: Seamless replacement of old M644, M944, M945 series equipment by adapting brackets and various linkage components, reducing upgrade costs.

Key points for debugging and troubleshooting

1. Series 62 feedback signal verification

Apply 5-10V DC to terminal Y-G and measure the T-G voltage

For a 160 ° motor, the output voltage should be between 4% and 96% of the input voltage

For a 90 ° asymmetric motor, the output voltage ranges from 4% to 56%

For a 90 ° symmetrical motor, the output voltage ranges from 24% to 76%

2. Slave control configuration

The master motor and slave motor must be either symmetrical or asymmetrical

The main motor must be of the - S model and a shunt resistor must be installed between T-G and T-Y as required

Install a shunt resistor between R-B and R-W in the slave motor

Suggest no more than 6 subordinate units

3. Vibration impact

Unlike early Modutrol motors, the Modutrol IV series is insensitive to vibration and is suitable for installation environments with high levels of vibration. But when replacing old systems with R927C or R9107A relays, it is recommended to remove the relays and old motors and directly use Series 90 motors for integrated transformation.
