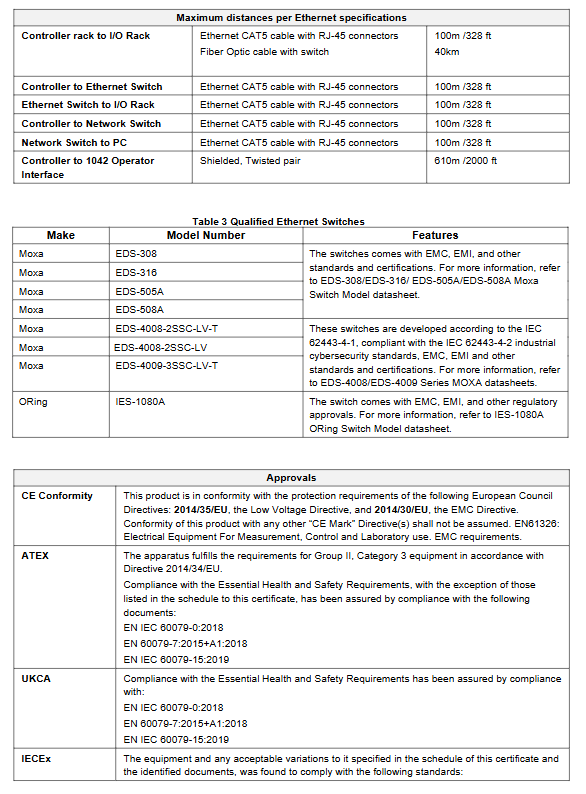

Honeywell ControlEdge HC900 Controller Troubleshooting Manual

Ensure that the RS485 port of the controller is configured in "modem" mode (not "direct") and the timeout is set to 30 seconds or more (due to dialing delay).

Use the AT command to test the modem initialization string (e.g. "AT&F0").

In Designer, select "Communication" ->"modem" and enter the other party's phone number. If frequently disconnected after connection, reduce the baud rate to 9600.

Preventive maintenance recommendations

To minimize unplanned downtime, it is recommended to develop and implement the following maintenance plan (with cycles adjusted based on the severity of the operating environment):

Quarterly:

Test redundant CPU switching (manually triggered, verify no interference).

Measure the input voltage and ripple of all power modules.

Check the LED status of all I/O modules and record any abnormal flashing.

Generate a report using "Diagnostics" ->"I/O Health" in Designer.

Every six months:

Hot plug each I/O module (during planned downtime), clean the gold fingers and reinsert to remove the oxide layer.

Calibrate key analog input channels (verify the engineering values corresponding to 4mA and 20mA using a precision signal source).

Backup the controller configuration to two independent media (network driver and USB).

Every year:

Replace the CPU battery (even if low voltage is not reported, TL5903 is designed to have a lifespan of 5 years, and it is recommended to replace it preventively for 3 years).

Upgrade the firmware to the latest stable version (download from Honeywell official website, follow the upgrade guide).

Check all grounding resistances (frame grounding should be less than 1 Ω).
