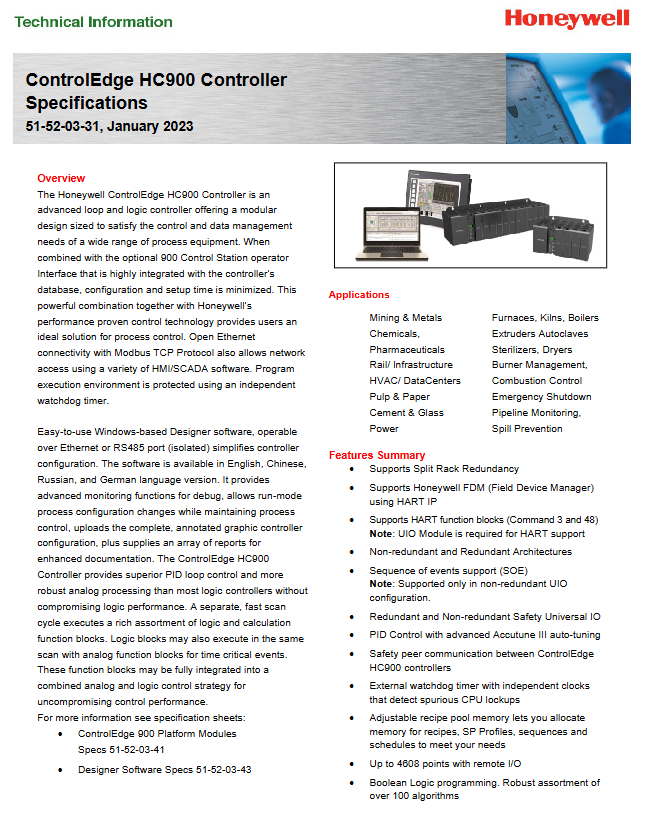

The Honeywell ControlEdge HC900 is a modular controller that integrates loop regulation and logic control, widely used in mining, metal, chemical, pharmaceutical, power, and combustion management fields. It supports both non redundant and redundant architectures (Split Rack Redundancy), and provides rich analog/digital I/O modules, HART function blocks, as well as flexible Ethernet (Modbus TCP) and serial communication capabilities. Although the platform is known for its high reliability and ease of use, there may still be issues such as CPU redundancy switching failure, I/O channel signal loss, communication interruption, or configuration damage during long-term continuous operation.

This article systematically elaborates on the diagnostic process and standard troubleshooting steps for various common faults based on the hardware structure, redundancy mechanism, I/O characteristics, and communication protocol of the ControlEdge HC900 controller, combined with practical maintenance experience. All operations mentioned in the article must be carried out by engineers with SIL2 safety knowledge and experience using Honeywell Designer software, and strictly comply with on-site safety regulations.

Review of System Core Components and Redundant Architecture

Before starting troubleshooting, it is necessary to review the key components and operating principles of the HC900 system, which will help understand the subsequent diagnostic logic.

CPU module: including C30, C50 (non redundant), C70 (dual network port), and C75 (redundant CPU). All CPUs are based on a 32-bit PowerPC architecture, with battery backed DDR2 memory (64 MB for C30/C50 and 128 MB for C70/C75), and support ECC error checking. The program execution environment is protected by an independent watchdog timer.

Redundant architecture: The C75 redundant system uses independent controller racks (without local I/O), with two C75 CPUs powered by independent power modules and interconnected through redundant switching modules (RSMs). The main controller (Lead) synchronizes the operating data to the backup controller (Reserve) every scanning cycle, and performs undisturbed switching when the main controller fails, RSM key switch is switched, or function block instructions are triggered.

I/O system: Supports local racks (4/8/12 slots) and remote I/O racks (connected through dedicated Ethernet ports using copper or fiber optic cables). The I/O module includes general-purpose analog inputs (8 channels, compatible with thermocouple/RTD/voltage/current), high-level analog inputs (16 channels), analog outputs (4/8/16 channels), digital inputs (16/32 channels), digital outputs (16/32 channels), relay outputs, and pulse/frequency/quadrature encoder modules. Important feature: Supports hot swapping (inserting or removing modules during system operation, automatically recognized and configured by the controller).

Communication interface: Each CPU provides Ethernet 10/100Base-T ports (C70/C75 dual ports), supporting Modbus TCP、OPC、HART IP、Peer-to-Peer（UDP）。 The isolated RS-485 port supports Modbus RTU master or slave mode, with a maximum baud rate of 115200.

Alarm and Event: The controller supports up to 360 alarm points (divided into 30 groups) and 64 event points, with a timestamp resolution of 1 second. Some configurations support high-resolution SOE (1 ms), but it is only valid in non redundant UIO configurations.

Typical fault diagnosis and troubleshooting

The following fault scenarios are organized based on the high incidence problems on site, providing symptoms, possible causes, and detailed handling steps for each item.

3.1 C75 Redundant CPU Switching Failure or Uninterrupted Switching Interruption

phenomenon

After the main controller fails (such as power loss, CPU internal error), the backup controller does not automatically take over, and the process loses control.

When manually switching through the RSM key switch, the Lead status indicator light does not change, or the output briefly jumps after switching.

The redundancy status function block in the Designer software displays "Reserve NOT synchronized" or "Communication loss".

Possible reasons:

The redundant synchronization link (dedicated Gigabit Ethernet port or backplane connection) between two C75 CPUs is physically disconnected.

The real-time operating system or application version of the backup controller is inconsistent with that of the main controller.

The battery of the backup controller has been depleted, resulting in the loss of dynamic data and the inability to receive synchronized data from the main controller.

The mode switch on RSM is mistakenly placed in the "Force" or "Disable" position.

The I/O communication network (remote rack) is interrupted, causing the backup controller to be unable to obtain complete I/O status.

Exclusion steps:

Check physical connection: Confirm that the redundant Ethernet ports (usually Port 2) of two C75 CPUs are directly connected using standard CAT5e jumpers (or through dedicated redundant switches, but Honeywell recommends direct connection). Observe the port LED, which should flash to indicate activity.
