Honeywell ControlEdge HC900 Controller Troubleshooting Manual

Replacing faulty power modules: For redundant configurations (using expansion racks to install two power supplies), a single power module can be replaced while the system is running. Unplug the input connector of the faulty module, then release the locking screw to remove the module. After inserting the new module, power it on again and observe the LED turn green. Non redundant systems (single power supply) must be shut down and replaced.

Check load current: Calculate the total power consumption of all I/O modules. The maximum output of a power module is 60W. If it approaches the upper limit, consider adding redundant power supplies or removing non essential modules. Real time power load percentage can be viewed in the "System Monitor" of Designer.

Temperature check: HC900 allows an ambient temperature of 0-60 ° C (for some modules such as 16 channel AI, the temperature level is T6, with a maximum of 60 ° C). Use an infrared thermometer to measure the temperature inside the cabinet. If it exceeds 60 ° C, install a fan or air conditioner.

3.5 Configuration loss or controller failure to start

phenomenon

After the controller is powered on, the "Run" LED does not light up, and all I/O module outputs are in a safe state (configured fault safety value).

When the Designer software attempts to connect, it prompts "Controller contains no configuration" or "Configuration checksum error".

The low battery voltage alarm had already appeared but was ignored.

Possible reasons:

After the backup battery is depleted and the main power supply is interrupted, the configuration in the dynamic memory is lost.

User configuration damage in Flash memory (rare, possibly caused by static electricity or firmware upgrade interruption).

CPU module hardware failure.

Exclusion steps:

Download configuration again from PC: If the configuration file (*. cde) was previously saved, use Designer to download it via serial port or Ethernet. Attention: Before downloading, place the CPU in "Program" mode (via the key switch on the RSM or through software selection). After downloading, switch to 'Run'.

Attempt to upload without backup: If the PC file is lost but there is still configuration in the controller Flash (only battery loss), you can try to recover it through the "Upload from Controller" function in Designer. Check 'Upload full configuration including text descriptions'. Attention: The uploaded file may lack some comments, but the functional blocks and I/O configuration are complete.

After resetting to factory settings, reconfigure: If the upload fails, you can perform a full controller erase. Select "Controller" ->"Erase Configuration" through Designer, and then manually reconfigure (or import previously exported CSV point tables). For SIL2 security configuration, it is recommended to only use validated backup files and not to recreate the configuration in production.

Configuration migration after replacing CPU module: If the CPU is physically damaged, move the SD card (if any) or external storage on the old CPU to the new CPU. HC900 does not support direct insertion and removal of SD card migration configuration, and must be downloaded through Designer. After replacing C75, redundant synchronization needs to be performed again.

Best practice: After each configuration modification, use the "Export" function to save the configuration as. cde and. pdf documents and archive them on the engineering server. Set up periodic (monthly) automatic upload of configurations to network locations (via Designer scripts).

Advanced diagnostic tools and techniques

4.1 Utilizing Function Blocks for Online Diagnosis

HC900 provides rich diagnostic function blocks that can be embedded in control strategies to monitor health status in real-time:

System Monitor Block: Output CPU load, scan cycle, battery voltage, redundancy status, and I/O bus error count.

Redundancy Status Block: Provides primary and backup roles, synchronization status, and switch counters.

Rack Monitor Block: Monitor the communication quality and module presence of each I/O rack.

Modbus Device Block: When acting as a Modbus master, it can read the status register of the slave station and detect the number of communication failures.

After creating these functional blocks in Designer, their output values can be displayed on the 900 Control Station operator interface for easy daily inspections.

4.2 Event Log Analysis

The controller can store up to 5000 events (SOE) or 360 alarms internally. The "Event Log" view in Designer allows filtering by time, priority, and type. Common key events:

Event code description suggests actions

E011 Redundant link loss check for redundant cables

E045 I/O module removed check hot plug record

E102 Battery Low: Replace the battery within 48 hours

E207 Modbus TCP Connection Dropped Check Network or Restart Communication

E301 Watchdog reset CPU abnormal reset, firmware upgrade

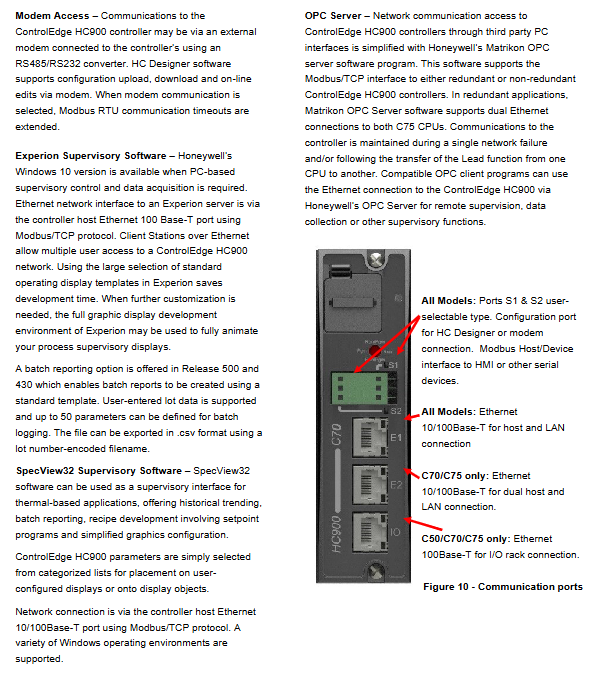

4.3 Remote access and modem troubleshooting

For unmanned stations, HC900 supports remote diagnosis through an external modem (RS485 to RS232, connected to standard telephone lines or cellular modules). Key points for troubleshooting:
