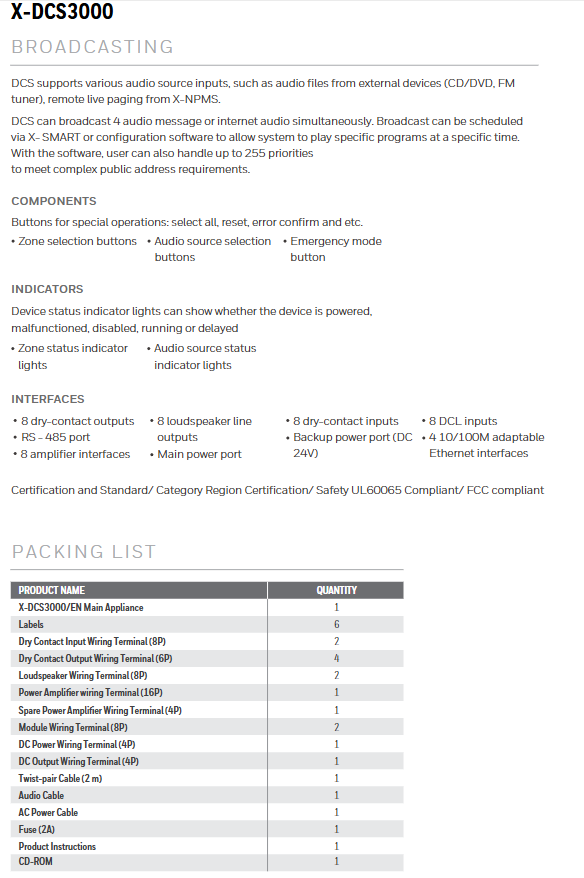

Honeywell X-DCS3000 Digital Integrated System Manager

Solution:

Install X-ND100 noise detectors in each workshop and connect them to DCL input.

Configure AVC curve: For every 5 dB increase in noise, the output increases by 3 dB (upper limit+12 dB).

Set a daily ringtone schedule (for work, lunch break, and after work) through software configuration.

Connect the X-NPMS paging microphone, and the machine maintenance team leader can make targeted calls to the designated workshop.

6.3 Hotel Conference Center

Requirement: Multiple conference rooms should play different audio sources independently, while the background music in the lobby should not be interrupted. Need to support remote volume control.

Solution:

Using 4 Ethernet interfaces, connect multiple regional expansion units to achieve 32 partitions.

Each conference room is equipped with a wall mounted volume controller (which controls the attenuator through dry contact output).

Connect the recording output port to a digital recorder to record all conference broadcasts.

Common troubleshooting and engineering maintenance

7.1 Device cannot start, Power light does not light up

Possible reasons:

The main power fuse is blown

The main power supply is not connected or the voltage is abnormal

Backup power supply connected but voltage too low (<21.5V)

Solution steps:

Check if the AC input socket has 220V.

Open the fuse holder, check if the T2AL 250V fuse is blown, and replace it with a fuse of the same specification if necessary.

Measure the backup power terminal voltage, which should be between 21.5-28.5V.

If the main power supply still does not start after recovery, try using only the backup power supply to troubleshoot the main power module.

7.2 Fault reported on a certain speaker circuit

Performance: The corresponding area indicator light turns red, and the system generates a fault contact output.

Troubleshooting:

Disconnect the output terminal of the speaker and measure the resistance of the circuit with a multimeter.

The DC resistance of a normal 70V constant voltage circuit (with multiple speakers connected in parallel) is usually several ohms to tens of ohms.

If the resistance is 0 Ω → short circuit in the circuit; If it is infinite, the circuit will break.

Check if the transformer and volume switch on the circuit are damaged.

After repairing, press' Error Confirm 'to clear the alarm.

7.3 Over temperature protection for a certain amplifier channel

Reason:

Load exceeding limit (connected to speakers exceeding 250W)

Poor heat dissipation of the cabinet

The ambient temperature exceeds 55 ° C

handle

Check the actual load power of the channel (the sum of the rated power of all connected speakers should not exceed 80% of the rated power of the amplifier).

Clean the ventilation filter of the cabinet to ensure sufficient space in front and behind the equipment.

Reduce the ambient temperature or increase the exhaust fan.

7.4 Intermittent network audio

Possible reasons:

Ethernet switch congestion or broadcast storm present

The network cable is too long (over 100 meters) or of poor quality

IP address conflict

solve:

Assign X-DCS3000 and network audio devices to independent VLANs and isolate the broadcast domain.

Use Cat5e or higher shielded Ethernet cables to ensure a single segment distance of ≤ 90 meters.

Log in to the configuration software and check the network packet loss rate (<0.1% is normal).

7.5 Emergency triggering does not activate evacuation voice

Troubleshooting:

When the dry contact output of the fire alarm controller is confirmed to be closed, there is a voltage change at the corresponding DCS dry contact input terminal (using a multimeter).

Check if the input port in the configuration software is associated with the correct evacuation voice file (MP3/WAV).

Confirm that the evacuation priority (usually up to 255) has not been blocked by other tasks.

Try manually pressing the Emergency button on the panel to verify if the voice playback is working properly. If it is normal, it indicates an input configuration error.

Installation and wiring safety regulations

Power wiring: The main power supply must use power cords that comply with local electrical regulations (including AC power cords). It is recommended to use copper core flexible wires with an area of 2.5mm ² or more and install a 15A fuse for backup power cords.

Speaker circuit: 70V constant voltage circuit must not be shared with low-voltage control lines (such as RS-485) to avoid inductive interference. All horn polarities must be consistent to avoid phase cancellation.

Dry contact input: When used for fire linkage, it is recommended to use shielded cables with a single ended grounding of the shielding layer to prevent accidental triggering.

Grounding: The rear panel of the equipment provides a grounding terminal, which must be reliably connected to the cabinet grounding strip, and the grounding resistance should be less than 4 Ω.

Heat dissipation: 1U space should be reserved above and below, and the side air inlet should not be blocked. The ambient temperature shall not exceed 50 ° C.

Laser/Safety: Although this device does not have a laser, there are fuses and high-voltage capacitors inside. After power failure, you need to wait for 1 minute before operating.
