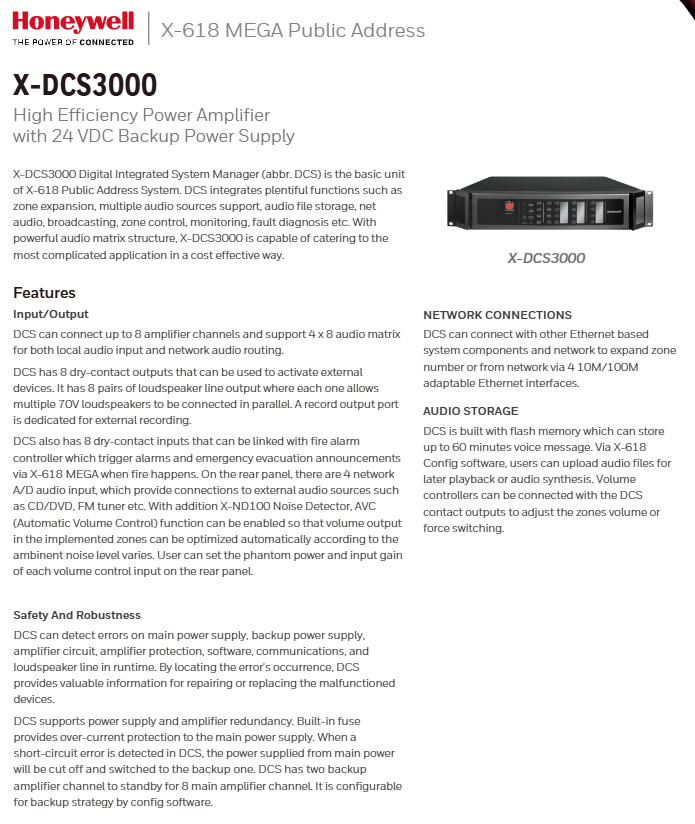

Honeywell X-DCS3000 Digital Integrated System Manager

Deep analysis of core functions

4.1 Audio Storage and Timed Broadcasting

DCS is equipped with 1GB of flash memory (606MB of which is used to store audio files), which can store up to 60 minutes of voice messages (WAV format). Users upload audio files through X-618 Config software for:

Automatically play on a scheduled basis (such as end of work ringtones and midday music)

Emergency evacuation voice synthesis (such as "Attention, there is a fire alarm now, please evacuate from the nearest exit")

Multilingual information carousel

Combined with X-SMART scheduling software, it can achieve weekly/daily scheduled broadcasting plans, supporting up to 255 priority levels, suitable for multi-level broadcasting needs of large venues.

4.2 Network Audio and Partition Expansion

Through 4 Ethernet interfaces, X-DCS3000 can:

Connect other X-DCS3000 units and expand the system to a maximum of 256 broadcast partitions.

Receive real-time calls from the X-NPMS network paging microphone.

Integrate into the building automation network and trigger designated broadcasts through third-party systems such as BMS.

Network audio routing capability: The system can simultaneously play 4 different audio streams (such as background music in Zone A, fire evacuation in Zone B, manual notifications in Zone C, and timed announcements in Zone D), with each zone independently selecting the audio source.

4.3 Automatic Volume Control (AVC)

When connecting the X-ND100 noise detector to the DCL input channel, the AVC function is automatically enabled. The detector monitors the environmental noise level in real-time (such as airport waiting halls and workshops), and the DCS dynamically adjusts the output volume of the corresponding broadcast zone based on the preset noise compensation curve. For example:

Environmental noise 65 dB → output+0 dB

Environmental noise 80 dB → output+6 dB

Environmental noise 90 dB → output+10 dB

This ensures that the broadcast information is always audible without causing disturbance to the public during quiet hours.

4.4 Fault self diagnosis and status indication

During the operation of X-DCS3000, the following items are continuously monitored, and any abnormalities are immediately alerted through panel indicator lights, dry contact outputs, network messages, and other means:

Main power supply voltage and fuse status

Backup power supply voltage

Temperature, overcurrent, short circuit, and DC offset of each amplifier channel

Power amplifier protection status (overheating, overvoltage)

Software watchdog and communication link

Open/short circuit of 8-channel speaker circuit

Fault information can be located in specific channels, greatly reducing maintenance and troubleshooting time. For example, the "Zone Status" indicator light on the panel will display whether the corresponding speaker circuit is normal, with red indicating a fault.

Front panel operation and status interpretation

5.1 Region selection button

The 8 area selection buttons correspond to 8 speaker output channels. It can be selected individually or in bulk for broadcasting or muting.

5.2 Sound source selection and emergency mode

Audio source selection button: Select the audio source (AUX 1~3, network audio, built-in voice, etc.) currently used for broadcasting.

Emergency mode button: One click trigger for emergency evacuation of the entire area, with the highest priority, ignoring any current broadcasts.

5.3 Status indicator lights

Meaning of indicator lights

The main power supply of the Power device is normal

Backup DC power supply in progress

Fault system detects faults (amplifier, circuit, power supply, etc.)

Disabled: The corresponding channel has been disabled by software

Running is broadcasting

Delay broadcast delay start (priority waiting)

5.4 Special operation keys

Select All: Quickly operate on all regions.

Reset: Clear the fault latch status (the fault needs to be resolved first).

Error Confirm: Mute the fault buzzer and confirm the alarm.

Typical Engineering Applications and Deployment Suggestions

6.1 Rail Transit Platform Broadcasting System

Requirement: The platform area requires three levels of broadcasting: background music, train arrival announcement, and emergency evacuation announcement. Require that the main power supply can still operate for at least 30 minutes when it fails, and that a single amplifier failure does not affect the overall performance.

Solution:

Using X-DCS3000 as the main controller, connect 4 250W main power amplifiers to drive 8 station zones (each amplifier pushing 2 zones).

Configure two 250W backup power amplifiers using an N: 1 redundancy strategy.

The main power supply is taken from the station power supply, and the backup power supply is connected to a 48V battery pack (reduced to 24V).

Connect the dry contacts of the fire alarm system, and when the fire alarm signal is triggered, automatically play pre recorded evacuation voice and forcefully cut off all background music.

6.2 Large Factory Workshops

Requirement: In high noise environments (85-95 dBA), automatic volume compensation is required. At the same time, timed ringing and machine maintenance team paging are required.
