IFM CR2530 Intelligent Controller Guide

3. Separate signal and power lines for wiring

It is absolutely forbidden to bundle power and signal wires together in the same harness. The wiring must be separated, and all power and grounding wires should be gathered in a star shape to a common grounding point. If prefabricated cables are used, unused core wires should be cut and insulated, and it is not allowed to form suspended loops, otherwise coupling interference will occur.

Special reminder: Do not short-circuit different pins inside the plug (linking of connections in the plug), as this may cause equipment damage or personal injury.

4. Special requirements for resistor input

The IN04 and IN05 of CR2530 support resistance inputs (such as PT1000 and potentiometers). To ensure measurement accuracy (16 Ω~30k Ω, accuracy ± 2% FS), each resistive sensor must use an independent grounding return line (i.e. three wire connection method) and cannot share a common ground wire, otherwise line resistance errors will cause reading drift.

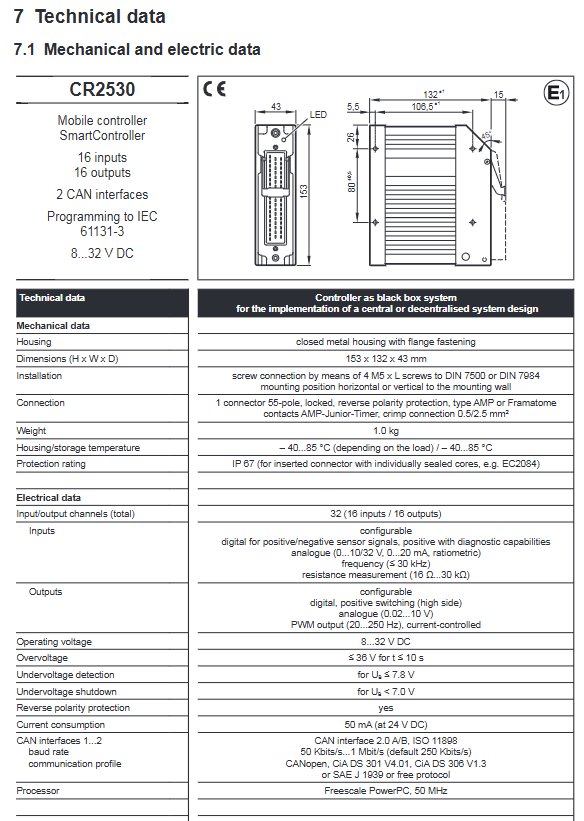

Detailed explanation of input-output characteristics - selection and fault prediction

1. Analog/digital composite input (IN00~03)

These four channels can be configured as:

Current input 0~20 mA (input impedance 390 Ω)

Voltage input 0~10 V or 0~32 V (input impedance>50 k Ω)

Proportional voltage input (following the supply voltage)

Attention: The input filter has a default cutoff frequency of 35 Hz and can be programmed to adjust to a maximum of 1 kHz. If measuring rapidly changing signals (such as hydraulic pressure transients), remember to increase the sampling frequency.

Common faults: When the input is open or short circuited to ground, the diagnostic function can detect a voltage<1 V; when short circuited to power, a voltage>0.95 UB triggers an alarm.

2. Digital/frequency input (IN12~15)

Supports frequency inputs up to 30 kHz (such as Hall sensors, encoders). Input threshold: conduction level>0.35~0.48 UB, turn off level<0.29 UB.

Tip: This type of input does not have a short-circuit or disconnection diagnosis function, so protection must be done on the external circuit (such as series current limiting resistors or fuses).

3. Digital/PWM output (OUT00~15)

All outputs are high side driven (B1 type), with a switching voltage of 8~32 V DC and a continuous current of 0.02~2A per channel (OUT12~15 can reach 4 A/channel, but limited by the total current of the output group).

Key protective features:

Integrated inductive load freewheeling protection (no external diode required).

Diagnostic function:

Wire breakage detection: It is only determined by feedback voltage when the output is turned off (Uout>27.5% VBB indicates wire breakage).

Short circuit detection: Only judged when the output logic is ON (Uout<93.5% VBB indicates a short circuit to ground).

Overcurrent protection: When the total current of the output group exceeds about 12 A (continuous 9 A), the driver automatically shuts off.

PWM output: frequency 20-250 Hz, duty cycle 1-1000% (resolution 1%). For current controlled output, the target current can be set to 0.02~2A with an accuracy of ± 1.5% FS.

Special note: OUT08 and OUT09 can be used as both digital outputs and analog voltage outputs (0.2~10 V, load current<5 mA). If the analog output is mistakenly connected to a high current load, it will damage the internal DAC.

Programming and Debugging - From Zero to Running

1. Programming environment

CR2530 uses CoDeSys V2.3 programming system (compliant with IEC 61131-3). Users can download the free version, but they need to register on the IFM official website (which provides a download area). Supports five languages: IL, LD, FBD, SFC, and ST.

Essential documents:

CoDeSys V2.3 Programming Manual (including online help)

SmartController System Manual (also available for online assistance)

Download path: www.ifm.com → Data Table Search → CR2530 → "More Information".

2. Interpretation of Status Indicator Light (LED)

There is a red/green dual color LED on the front of the controller, which means the following (note: the user program may change the color/flashing mode, the following is the default behavior):

Meaning of LED status

Constant extinction without working voltage

Red/green flashing once for initialization or reset check

Green 5 Hz, operating system not loaded

Green 2 Hz application running (RUN)

Green light application stop (STOP)

Red 5 Hz application stopped due to undervoltage

Red constant light system malfunction (fatal error)

On site troubleshooting:

If the LED turns red at 5 Hz, immediately check if the power supply voltage is below the threshold value (triggered by undervoltage monitoring).

If the LED is constantly red, you need to try downloading the firmware again or contact IFM for repair.

3. First power on and program download

After power on, the controller will perform internal self check (checksum testing, watchdog, temperature monitoring). If the self-test passes, the LED will flash green (waiting for program) or green 2 Hz (program already exists).

Before downloading the program through CoDeSys's CAN or serial port (requiring a dedicated programming cable), it is necessary to ensure that:
