IFM CR2530 Intelligent Controller Guide

The power supply of the controller is stable (VBBs s, VBB1, and VBB2 have all been correctly connected).

The shielding layer of the programming cable is grounded at one end.

If using a CAN interface, the terminal resistance needs to be matched (usually 120 Ω).

Common fault modes and troubleshooting

Possible causes and solutions for the phenomenon

The controller has no response, the LED is constantly off, the power supply is not connected, or the VBB s fuse is burnt out to measure the voltage at Pin 10; Check the 2A fuse.

LED red 5 Hz power supply voltage is below the allowable range (undervoltage). Measure the battery voltage (12/24 V system) and check the charging system; If using an external power source, confirm that its output is stable.

A certain analog input reading jumps or is inaccurate. The signal line is not shielded or has common ground interference. A shielding layer (single ended grounding) is installed; Use an independent power source; Check if the requirement for a separate return line for resistor input is met.

The output cannot drive large loads (such as solenoid valves) beyond the total current limit of the output group (12 A peak, 9 A continuous). Calculate the sum of all output loads. If it exceeds the limit, group power supply or use external relays.

Output a diagnostic report of "short circuit overcurrent", but the actual load without short circuit is low impedance (such as incandescent lamps with extremely low cold resistance). Connect a current limiting resistor in series at the output end or use a soft start strategy instead; Check if the cold current of the load exceeds 2 A/channel.

Frequency input count abnormal input level mismatch (sensor is NPN open drain) CR2530 input is high side effective (>0.35 UB), NPN output needs to pull up resistor to VBB.

CAN communication failure, terminal resistance loss or inconsistent baud rate. Measure the resistance between CAN_S and CAN_L, which should be 60 Ω; Check the baud rate setting in programming.

Practical steps for replacing discontinued Woodward/Honeywell modules

Function mapping: Detailed recording of all I/O points (analog, digital, PWM frequency, etc.) of the original controller, as well as their range and driving capability. Compare the technical data of CR2530 to confirm whether each channel is compatible (for example, if the original output is 4A and CR2530 has a maximum of 2A per channel, an external power relay or contactor is required).

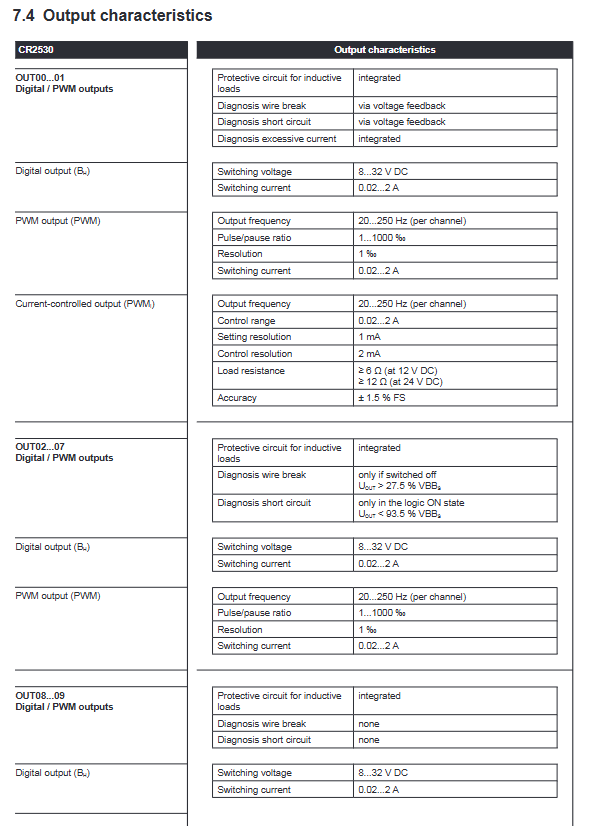

Electrical adaptability: When the original system voltage is 12V, note that the PWM output load resistance of CR2530 should be at least 6 Ω; If the impedance of the original actuator is too low, a power resistor needs to be connected in series.

Programming logic porting: Using CoDeSys ladder diagrams or ST language to reconstruct the original PLC or hard wired logic. Pay special attention to implementing functions such as timing, watchdog, and fault diagnosis in the original system through software.

Grounding system modification: The original system may not have used star grounding, and CR2530 has strict requirements for this. Before installing a new controller, it is necessary to clean the grounding bolts and re lay the grounding busbar.

Test verification: First disconnect all actuators, connect only sensors, and run simulated operating conditions to confirm that the input signal is correct. Then conduct a no-load test on the output logic (such as using LED instead of solenoid valve). Finally, conduct a trial run with load, monitor the temperature of the controller and the total current of the output group.

Maintenance and scrapping

The controller is maintenance free (no user replaceable parts). Do not open the casing, otherwise it will lose warranty and may cause danger. When scrapping, it is necessary to comply with local electronic waste disposal regulations (such as the WEEE directive). All certification documents (CE, E1, etc.) can be downloaded from the ifm official website.
