Emerson MVME5100 Series VME Bus Processor Module

ECC and fault protection: The main memory supports ECC error checking, NVRAM with battery backup, watchdog timer, and multi-dimensional fault detection (such as memory errors and bus anomalies) to reduce the risk of business interruption;

Adaptation to harsh environments: With a wide temperature range and anti vibration design, it meets the requirements of harsh scenarios such as national defense and aerospace. Its MTBF exceeds 100000 hours, making it suitable for long-term unmanned applications.

2. Flexible I/O and expansion capabilities

Dual I/O mode compatibility: The P2 interface supports two jumper configuration modes:

-PMC mode: compatible with MVME2300/2400, connecting PMC slot I/O to P2 backplane, suitable for peripheral backend connection;

-IPMC mode: Compatible with legacy MVME761/MVME712M adapter modules through IPMC761/IPMC712 modules, supporting traditional I/O such as SCSI, parallel ports, and multiple serial ports;

PMC expansion flexibility: Dual PMC slots support custom peripherals (such as dedicated communication cards and acquisition cards), which can be further increased in number with PMCSPAN expansion modules to meet complex I/O requirements;

Multi interface coverage: Native supports dual Ethernet and dual serial ports, and can be expanded to add SCSI, synchronous serial ports, parallel ports, and adapt to various types of peripherals such as industrial sensors, storage devices, and upper computers.

3. Software and ecological compatibility

Firmware and Debugging: Built in mature firmware monitoring program (PPCBug), supports power on self-test, hardware diagnosis, operating system boot, provides debugging tools and fault location functions, simplifies development and maintenance;

Operating system support: Compatible with multiple types of embedded operating systems, including Wind River VxWorks, Green Hills Integrity, Linux (third-party cooperative version), and adaptable to different real-time and functional requirements;

Legacy device compatibility: By using IPMC modules and adapter boards (MVME761/MVME712M), the I/O interfaces of traditional devices can be reused, reducing upgrade costs.

Typical application scenarios

Defense aerospace: shipborne/airborne computing units, radar signal processing, relying on their anti vibration, wide temperature characteristics, and high reliability;

Industrial automation: large-scale machine tool controllers, distributed control system (DCS) core units, utilizing their multi I/O and real-time operating system support;

Medical equipment: high-end imaging equipment (such as CT, MRI), clinical diagnostic instruments, requiring stable computing power and medical grade safety compliance;

Testing and Measurement: Automated Testing System (ATE), which extends and adapts various testing modules through PMC to achieve multi parameter acquisition and analysis.

Ordering and Supporting Information

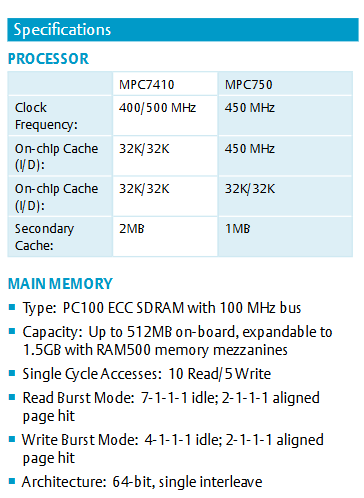

1. Core models (taking 5E series as an example)

MVME51005E-0161/0163 MPC750（450 MHz），512MB ECC SDRAM，17MB Flash，1MB L2  Cache, for Scanbe/IEEE 1101 panels respectively

MVME51105E-2161/2163 MPC7410（400 MHz），512MB ECC SDRAM，17MB Flash，2MB L2  Cache, for Scanbe/IEEE 1101 panels respectively

MVME51105E-2261/2263 MPC7410（500 MHz），512MB ECC SDRAM，17MB Flash，2MB L2  Cache, for Scanbe/IEEE 1101 panels respectively

2. Key supporting modules

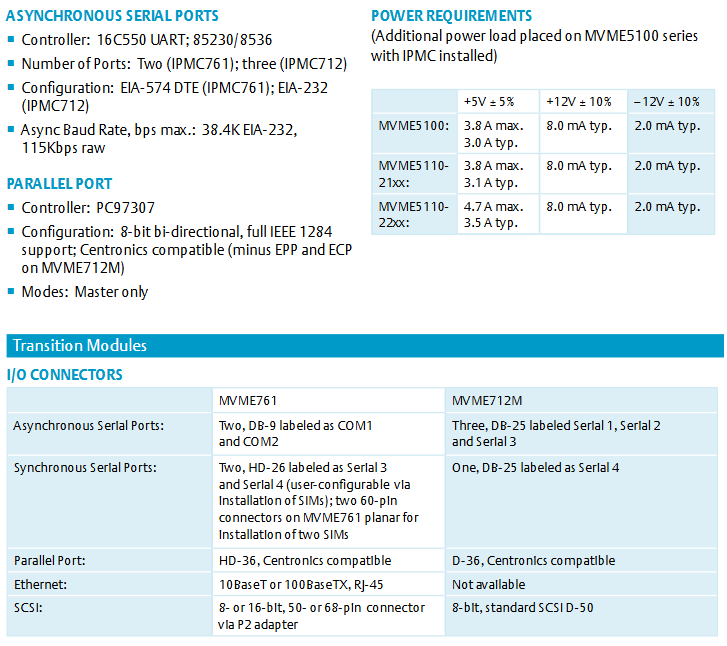

IPMC Expansion Module - IPMC7616E-002: Supports 8-bit SCSI, parallel ports, 2 asynchronous+2 synchronous/asynchronous serial ports

-IPMC7126E-002: Supports 8-bit/ultra wide SCSI, parallel ports, 3 asynchronous+1 synchronous/asynchronous serial ports

Adapter Module - MVME7616E-001: Includes DB-9/HD-26 serial port, HD-36 parallel port, RJ-45 Ethernet

-MVME712M6E: Includes DB-25 serial port, D-36 parallel port, 50 pin SCSI port

Memory expansion RAM5006E series: 128MB/256MB/512MB ECC SDRAM mezzanine module (in top and bottom stacked versions)

Serial port adaptation SIM232DCE6E/SIM232DTE6E: EIA-232 DCE/LTE serial port interface module
