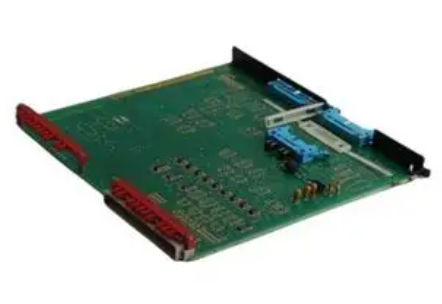

ALSTOM N897164610L Pulse Output Module

ALSTOM N897164610L Pulse Output Module

Communication and interface parameters

Communication protocol support: Supports multiple common communication protocols, such as Modbus protocol, for data exchange and collaborative work with other devices. Through the Modbus protocol, it is easy to connect with devices such as PLCs and upper computers, receive control commands, and provide feedback on the working status of modules, achieving centralized control and monitoring of the entire automation system.

Interface type: Equipped with standard electrical interfaces, such as [interface type, such as RS-485 interface, etc. These interfaces have good universality and compatibility, making it easy to connect with various external devices. For example, the RS-485 interface can achieve long-distance data transmission, has strong anti-interference ability, and can meet the data communication needs in complex industrial environments.

Functional Features

Precise pulse control: capable of generating high-precision pulse signals at a predetermined frequency and number of pulses, and can accurately control the start, stop, speed, and position of external devices. For example, in positioning mode, mechanical components can be accurately moved to preset positions.

Multiple working modes: According to different application scenarios, it has multiple working modes, such as positioning mode, speed mode, and torque control mode. In speed mode, the speed of the actuator is determined by controlling the pulse frequency; In torque control mode, the motor current is controlled by pulse signals to control the output torque.

Signal isolation and amplification: To ensure the stability and reliability of the signal, it usually has signal isolation function, which can prevent external interference from affecting the system, and amplify the pulse signal to meet the driving requirements of different loads.

High reliability design: Using high-quality electronic components and advanced manufacturing processes, it has strong anti-interference ability and stability, and can operate stably for a long time in harsh industrial environments, ensuring the reliable operation of the system.

Application area

Industrial automation: In production lines, it can be used to control the movement of robotic arms, the start stop and positioning of conveyor belts, etc., achieving automation and precise control of the production process. For example, in the automobile manufacturing production line, controlling the robotic arm to perform component assembly work.

Numerical Control Machine Tool: Used to control the precise positioning and movement of machine tool tools, achieve high-precision machining of workpieces, and improve machining quality and efficiency. On a CNC milling machine, the path of the tool is precisely controlled through a pulse output module to process

Complex shaped parts.

Robot control: It can accurately control the joint movements of robots, achieve precise movements such as positioning, grasping, and operation, and is widely used in industrial robots, service robots, and other fields.

Packaging Machinery: Used in packaging production lines to control precise measurement, filling, and packaging operations of materials, such as precise cutting of continuous feed, accurate counting and positioning of packaged items, etc., to improve packaging efficiency and quality.

Working principle

This module is usually used in conjunction with control systems such as programmable logic controllers (PLCs). The PLC sends instructions to the ALSTOM N897164610L pulse output module according to the preset program and logic. After receiving the instructions, the module generates pulse signals of corresponding frequency, pulse number, and duty cycle according to the instructions. These pulse signals are transmitted to external devices such as stepper motors, servo motors, etc., to control the movement and operation of the equipment.
