Emerson Electric Power Absolute Vibration Sensor (PR 9266/.. And PR 9268/..)

F: | Au:FAN | DA:2025-08-21 | 699 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

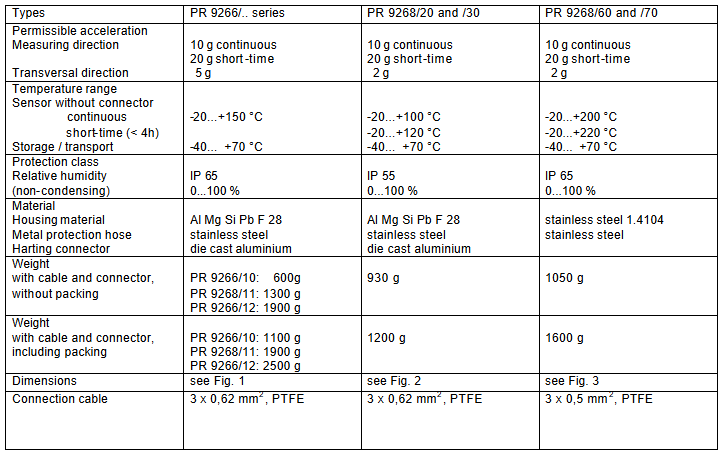

Temperature range (sensor without connector, continuous/short time (<4h)/storage and transportation): -20...+150 ° C/-20...+170 ° C/-40...+70 ° C -20...+100 ° C/-20...+120 ° C/-40...+70 ° C -20...+200 ° C/-20...+220 ° C/-40...+70 ° C

Protection level/relative humidity (non condensing): IP 65/0... 100% IP 55/0... 100% IP 65/0... 100%

Materials (shell/metal protective hose/Hart connector): Al Mg Si Pb F 28/stainless steel/die cast aluminum Al Mg Si Pb F 28/stainless steel/die cast aluminum stainless steel 1.4104/stainless steel/die cast aluminum

Weight (with cables and connectors, unpackaged/including packaging): PR 9266/10:600g/1100g; PR 9266/11：1300g/1900g； PR 9266/12：1900g/2500g 930g/1200g 1050g/1600g

Connecting cable: 3 x 0.62 mm ², PTFE, 3 x 0.62 mm ², PTFE 3 x 0.5 mm ², PTFE


Ordering Instructions

The order model format is PR 926X/X-XX0, and the meanings of each part are as follows:

The PR 9266 series corresponds to the number "6", and the PR 9268 series corresponds to the number "8".

Base type: 0 for no base, 1 for triangular base, 2 for cubic base.

Measurement direction: PR 9268/20 is vertical, PR 9268/30 is horizontal, PR 9268/60 is vertical (high temperature 200 ° C), PR 9268/70 is horizontal (high temperature 200 ° C).

Cable length: 0 is 3m, 1 is 5m, 2 is 8m, and 3 is 10m.

Cable end (only PR 9268/60 and/70 with Hart connector): 0 is Hart connector, 1 is open cable end.

Flexible metal protective tube: 0 with strap, 1 without strap.
