Emerson S-series Mass Connection Solutions

（2） Key functional characteristics

Signal adaptation and connection flexibility:

Analog Channel: Supports 4-20mA HART signals, and 2-wire/4-wire devices can independently select wiring methods according to channels to meet different on-site instrument requirements.

Discrete channel: DI supports 24V DC dry contacts and isolation signals, DO supports 24V DC high side output and no voltage contacts, fuse position can be switched by jumper to output types, suitable for various discrete devices.

Maintenance convenience:

Circuit disconnection: The blade type disconnection design of the AI/AO board can be directly connected to the testing equipment, and the replaceable fuse of the DI/DO board is convenient for cutting off the on-site power supply without interrupting the overall process.

Status indication: The yellow LED displays the real-time on/off status of discrete channels, which can quickly locate the problematic channel in case of a fault and simplify the troubleshooting process.

Fault detection and safety design:

The terminal fault detection function of DI/DO Plus board, combined with Plus I/O card, can monitor the power and cable status in real time. When abnormal, the diagnostic system automatically marks it, reducing the time for troubleshooting.

Onboard isolation design: DI board on-site wiring and I/O card circuit optical isolation (1000VDC test for 2 seconds), DO board relay contacts are isolated from the system (250V AC, 3600VDC test) to ensure system safety.

Hardware specifications and compatibility

（1） Universal environmental specifications (all connection boards)

Category parameter details

Working temperature -20~70 ° C (when the DO board is above 60 ° C, it needs to be downgraded to 3A/channel)

Storage temperature -40~85 ° C

Relative humidity 5%~95% (no condensation)

Pollutant level ISA-S71.04-1985 G3 level (with conformal coating)

Protection level IP20

Anti impact 10g half sine wave (continuous for 11ms)

Vibration 2~13.2Hz (1mm peak to peak), 13.2~150Hz (0.7g)

（2） Core component dimensions and electrical specifications

Component type size (length x width x height, mm) Key electrical parameters

AI/AO Plus board 118.06 × 109.78 × 60.52 channel type: 4-20mA HART; 16 channels

DI board 102.82 × 110.05 × 44.1 channel type: 24V DC dry contact/isolation; Conduct detection>2mA, shutdown detection<0.25mA; input impedance 5k Ω; on-site power supply 24V DC ± 10% (typical 75mA, maximum 100mA)

DO Plus board 133.3 × 109.75 × 60.52 channel type: 24V DC high side/relay contact; Output rated 5A/channel (250V AC/24V DC), board maximum 10A; on-site power supply 24V DC ± 10% (maximum 10A)

Round ribbon cable with a length of 6m and a wire specification of 0.14mm ² (26 AWG); 20 needles (50 threads/25 pairs), 48 needles (50 threads/25 pairs); Working temperature -20~70 ° C

（3） System compatibility

I/O card adaptation: Only supports DeltaV S series traditional I/O cards, including single redundant/redundant 32 channel DI/DO cards, 16 channel AI/AO Plus cards, which need to be ordered together with the connection board (refer to the "S Series Traditional I/O Product Manual" to confirm the model).

Software requirements: The fault detection function needs to be paired with the DeltaV diagnostic system, and the I/O card parameter configuration is completed in the DeltaV resource manager. There are no additional software version requirements (compatible with mainstream DeltaV versions).

Ordering information and spare parts

（1） Core Product Order List (Some Key Models)

Product Category Description Model Remarks

Connection board kit AI/AO Plus large-scale connection solution (1 board) - needs to be ordered as a set with the S series 16 channel AI/AO Plus card, refer to the I/O card PDS to confirm the complete model

DI Large scale Connection Solution (2 boards) - To be ordered as a complete set with S series single redundant 32 channel DI card

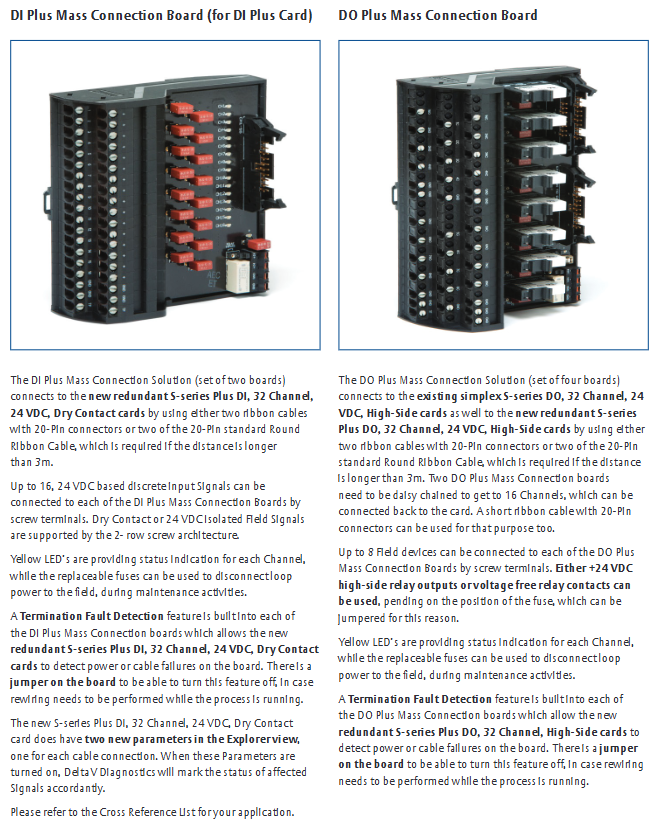

DI Plus Large scale Connection Solution (2 boards) - To be ordered as a complete set with S-series redundant 32 channel DI Plus card

DO Plus Large scale Connection Solution (4 boards) - To be ordered as a complete set with S series single redundant/redundant 32 channel DO cards

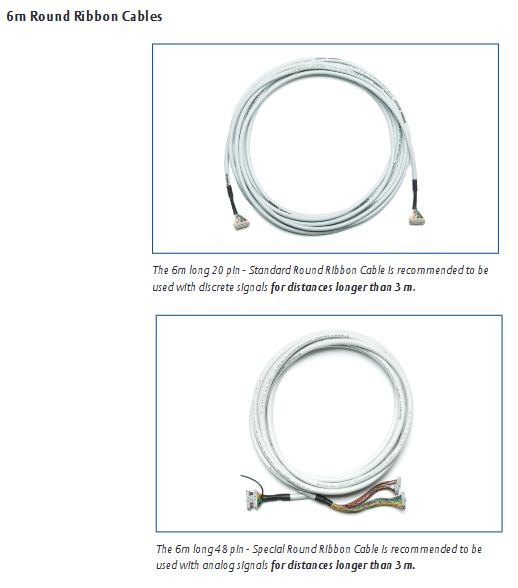

Circular ribbon cable 20 pin circular ribbon cable (6m, 2 pieces/set) SE4000L6P20 discrete signal cross cabinet connection, needs to be ordered separately

48 pin special circular ribbon cable (6m, 1 piece) SE4000L6P48 analog signal cross cabinet connection, needs to be ordered separately

（2） Spare parts information

Spare parts description, model, and remarks

AI/AO Plus connection board KJ4007X1-BD1 single block replacement

DI connection board KJ4007X1-BA1 single block replacement

DI Plus connection board KJ4007X1-BB1 single block replacement

DO Plus Connection Board KJ4007X1-BC1 Single Block Replacement

DI board main fuse (125V AC/1A, 10 pieces/box) KJ4007X1-DB1 compatible with DI/DI Plus board

DI board channel fuse (125V AC/160mA, 10 pieces/box) KJ4007X1-DA1 compatible with DI/DI Plus board

DO board main fuse (125V AC/10A, 10 pieces/box) KJ4007X1-DD1 compatible with DO Plus board

DO board channel fuse (250V AC/5A, 10 pieces/box) KJ4007X1-DC1 compatible with DO Plus board
