Core positioning and core advantages

The DeltaV S series large-scale connectivity solution is an efficient cabling system designed specifically for S series traditional I/O cards, enabling fast and reliable connections between field devices and DeltaV single redundant/redundant high-density I/O cards. Its core advantages can be summarized as seven key features:

Fast and error free cabinet wiring: Single redundant/redundant high-density I/O cards are connected to large-scale connection boards through ribbon cables, which can be completed within seconds without the need for tools, eliminating the need for additional cross wiring inside the cabinet and significantly reducing labor costs and wiring error risks.

Modular design enhances reliability: The connection board adopts modular signal splitting (up to 16 signals per block), which is more stable compared to traditional solutions, reduces the impact of single point failures on the overall system, and improves the reliability of the wiring system.

Reducing terminal footprint: Integrating all components required for cabinet wiring into a single connection board, combined with flexible installation methods (adapted to different cabinet layouts), significantly optimizes cabinet space utilization and reduces overall equipment footprint.

Significantly reduce manual workload: achieve flexible connection between I/O cards and connection boards based on 1:1 ribbon cables, without the need for additional cross wiring; On site equipment is directly connected to the connection board through screw terminals, simplifying the wiring process and shortening the construction period.

Significant cost reduction: Ready made ribbon cables (up to a maximum length of 3m) can be used inside the cabinet, and 6m standard circular ribbon cables can be used for cross cabinet connections, eliminating the need for customized special cables and reducing material costs; The reduction of labor and time costs further compresses overall investment.

Full signal type circuit disconnection function: The analog (AI/AO) connection board adopts a blade type disconnection design with 2mm test holes, which does not require interruption of the process when maintaining or calibrating 4-20mA circuit signals; The DI/DO connection board achieves on-site circuit power disconnection through replaceable fuses, facilitating maintenance operations.

Discrete signal terminal fault detection: When the DI/DO Plus connection board is paired with the new Plus I/O card, the DeltaV diagnostic function can detect power or cable faults; The onboard jumper supports disabling this function during process operation, facilitating rewiring and ensuring flexibility in troubleshooting and maintenance.

Core components and functional details of the product

（1） Core hardware components

Component Name Adaptation I/O Card Type Function Description Key Features

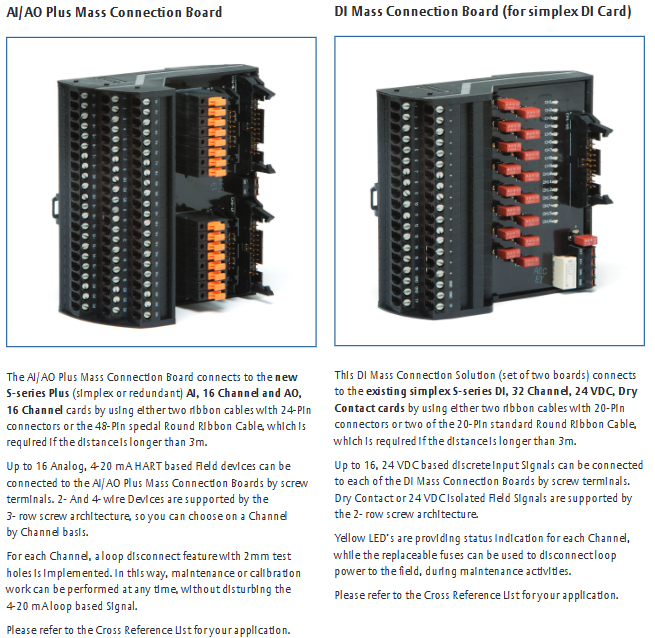

AI/AO Plus large-scale connection board S series Plus single redundant/redundant 16 channel AI/AO card connects 4-20mA HART field devices with 16 channels of I/O cards, supporting 2-wire/4-wire devices (3-row screw terminals, channel level optional); Circuit disconnection function with 2mm test holes per channel; Connect the I/O card through a 24 pin ribbon cable (≤ 3m) or a 48 pin special circular ribbon cable (>3m)

DI Large scale Connection Board (Single Redundancy) S Series Single Redundancy 32 Channel 24V DC Dry Contact DI Card Connection 24V DC Discrete Input Signal (Dry Contact/Isolation Signal) Each set includes 2 boards, each with 16 channels (2 rows of screw terminals); Yellow LED channel status indicator; Replaceable fuse (used to disconnect the on-site power supply during maintenance); Connect the I/O card through a 20 pin ribbon cable (≤ 3m) or a 20 pin standard circular ribbon cable (>3m)

DI Plus large-scale connection board (redundant) S series redundant 32 channel 24V DC dry contact DI Plus card connects 24V DC discrete input signals, supports fault detection. Each set includes 2 boards, each with 16 channels (2 rows of screw terminals); Equipped with all the features of DI large-scale connection board, and additionally integrated terminal fault detection function (detecting power/cable faults); Onboard jumper can disable fault detection (used for wiring during operation); The I/O card resource manager view contains 2 fault detection parameters, and when enabled, the diagnostic system automatically marks abnormal signals

The DO Plus large-scale connection board S series single redundant/redundant 32 channel 24V DC high side DO card connects discrete output devices (24V DC high side relay output/no voltage relay contacts). Each set contains 4 boards, and every 2 daisy chain connections achieve 16 channels (screw terminals); Yellow LED channel status indicator; Replaceable fuses (disconnect power during maintenance); Integrated terminal fault detection function (with redundant DO Plus card); Onboard jumper can disable fault detection; Connect the I/O card through a 20 pin ribbon cable (≤ 3m) or a 20 pin standard circular ribbon cable (>3m)

All connection plates of circular ribbon cables (in cross cabinet scenarios) enable long-distance connection of 20 pins (discrete signal, 6m) and 48 pins (analog signal, 6m) across cabinets; Supports working temperature range of -20~70 ° C, wire specification of 0.14mm ² (26 AWG), compliant with ISA-S71.04-1985 G3 anti-corrosion standard
