Honeywell SPS series intelligent position sensor

F: | Au:FAN | DA:2025-09-08 | 775 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

Certification and installation are the same as 35mm configuration; Recommended magnet: neodymium iron boron, magnetic field strength of 10000 Gauss

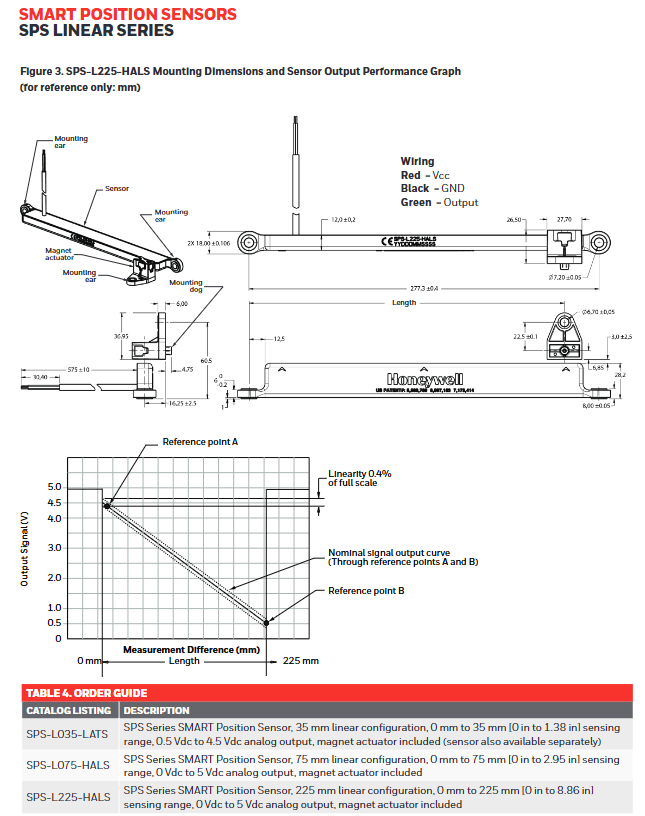

3. 225mm configuration (analog type: SPS-L225-HALS)

Specification category parameter details

Sensor characteristic detection range: 0-225mm; power supply voltage: 6-24Vdc; Power supply current: maximum 34mA; output type: stabilized voltage type; Minimum position output: typical 4.5Vdc; Maximum position output: typical 0.5Vdc; Full range span: typical 4VDC; Sensitivity: -17.07 to -18.49mV/mm (negative slope, typical -17.78mV/mm); Linearity: ± 0.4% full-scale output; Resolution: 140 μ m; Update rate: 400 μ S; Reverse polarity, startup time consistent with 75mm configuration

The connector and working environment are the same as the 75mm configuration (with the same air gap); Vibration: 10Hz to 2000Hz, 10G (different from the previous two configurations of 20G)

Certification and installation are the same as the first two configurations; Recommended magnet: neodymium iron boron, magnetic field strength 13500 Gauss

In addition, all three configurations require the input impedance of the device reading the analog output to be greater than 100K ohms, and all can output two diagnostic values: one is that when the magnet exceeds the range, the output is ≤ 95% of the power supply voltage; Secondly, in the event of operational errors (such as waiting for bridge measurement timeout, master-slave communication error, EEPROM checksum error, RAM parity error, etc.), the output should be ≥ 5% of the power supply voltage, and it is recommended to indicate the minimum and maximum positions of the magnet in the drawing.

Application Fields

Industrial field: valve position detection, material handling, plastic molding, cutting and slitting, wafer handling, CNC machine tools, etc.

Transportation field: engine gearbox, passenger bus height position detection, vehicle mounted crane external support position detection, heavy equipment accessory recognition, hydraulic cylinder, marine engine, etc.

Aerospace field: Aircraft actuators.

(Note: Some applications may not be applicable to all configurations)

Product portfolio

In addition to the SPS series linear configuration, there are two other configurations: Arc and Rotary.


Ordering Guide

Product catalog number Product description

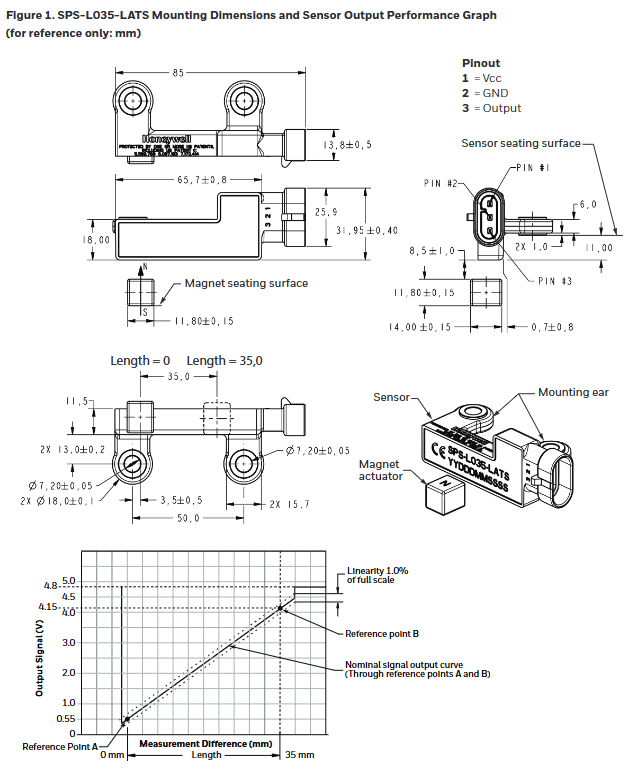

SPS-L035-LATS SPS series intelligent position sensor, 35mm linear configuration, detection range 0-35mm (0-1.38 inches), analog output 0.5-4.5Vdc, including magnetic actuator (sensor can also be purchased separately)

SPS-L075-HALS SPS series intelligent position sensor, 75mm linear configuration, detection range 0-75mm (0-2.95 inches), analog output 0-5VDC, including magnetic actuator

SPS-L225-HALS SPS series intelligent position sensor, 225mm linear configuration, detection range 0-225mm (0-8.86 inches), analog output 0-5VDC, including magnetic actuator
