Siemens 840C 611D Module Replacement Guide

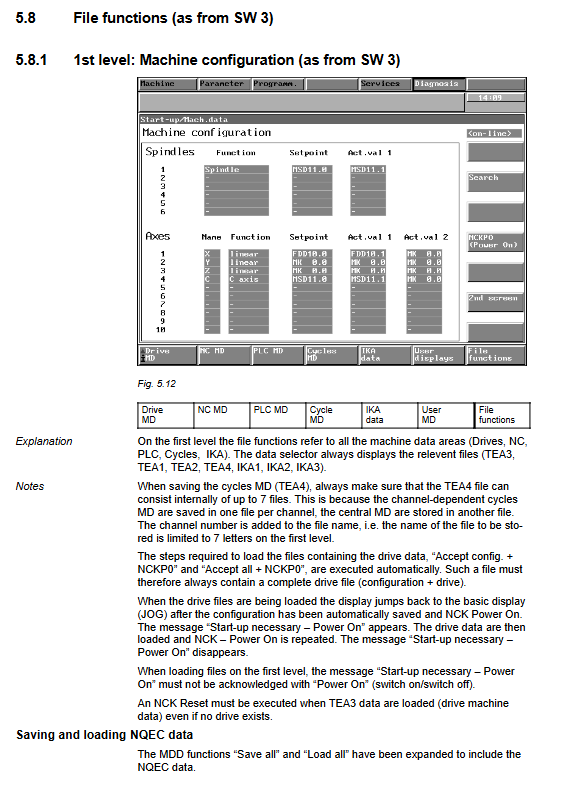

Restore axis/spindle allocation:

Return to the NC area, check and ensure that the set point/actual value allocation data for the axis and spindle have been correctly restored from the backup. The key data such as the logical drive number of the MD 3840/FDD set point must match the "logical drive number" assigned to the axis in your drive configuration. Mismatched mapping is a common cause of axis immobility or runaway.

Axis debugging and optimization: from "active" to "precise"

After the hardware configuration and motor parameters are restored, the shaft can move, but it is far from meeting the machining requirements. The following fine tuning is the core to ensure machining accuracy.

Check control direction and position feedback:

In JOG mode, press the positive direction button and observe the actual direction of movement of the machine tool. If the direction is opposite, it can be corrected by reversing the axis parameter MD 564 * bit 1 (speed setpoint symbol) or bit 2 (actual value symbol). Do not arbitrarily modify the motor wiring.

Ensure that the direction of machine tool movement is consistent with the direction displayed on the screen coordinates. If the direction is correct but the coordinate values increase or decrease in the opposite direction, the symbols in the measurement system parameters MD 364 */368 * should be modified, or the assignment of the measurement system in MD 2000 should be adjusted.

Speed setpoint matching (Tacho compensation):

For digital drivers, this step is usually achieved through precise motor parameters. But as a verification, the axis can be moved at a maximum speed of about 10% in JOG mode.

In the diagnostic/service display area, observe the "speed setpoint [0.01%]" and "speed actual value" of the axis. In an ideal state, the two should be equal.

If not, check the settings of drive MD 1147 (speed limit) and NC MD 280 (maximum shaft speed). Ensure that the maximum speed required by NC corresponds to the speed setpoint of "100%" on the driver side.

Servo gain (Kv factor) and dynamic response optimization:

The Kv factor (NC MD 252 *) directly determines the contour accuracy. Interpolation axes (such as X-Y axes) must have exactly the same Kv factor, otherwise contour errors will occur.

Set an empirical Kv value (e.g. 1666 corresponds to 1 (m/min)/mm), and then execute a quick positioning or arc interpolation program.

Use the "positioning ring" or "speed ring" measurement function of the "servo start application" (driving servo start area) integrated in 840C, or observe the speed setpoint signal through an oscilloscope. If there is a significant overshoot in the speed given signal, it indicates that the Kv factor is too high, and the value of NC MD 252 * should be reduced until a smooth response curve is obtained.

Optimize acceleration (NC MD 276 *). This value sets the acceleration/deceleration rate of the axis. It should be set at a level that prevents the drive from reaching the current limit during acceleration and deceleration, while also meeting the machining cycle time. The "current loop" measurement function in the "Drive Servo Start" can be used to observe whether the actual current hits the top at the end of acceleration.

Reproduction of reference point return function:

This is a function that must be verified after replacing the driver. The establishment of reference points is a prerequisite for all absolute position programming and soft limit effectiveness.

Check the settings of axis parameters MD 560 * bit 6 (automatic direction recognition) and MD 564 * bit 0 (reference point direction).

In the "reference point approximation" mode, manually perform the zeroing operation. Observe the axis movement process: whether it moves rapidly at MD 296 (approaching speed), whether it drops to MD 284 (crawling speed) after encountering the deceleration block, and whether it finally stops at the accurate physical position and triggers the interface signal of "reference point reached".

If the physical stop position does not match the expected value, the parameter MD 240 * (reference point offset value) can be adjusted.

Complex Function Verification: Ensure Complete System Recovery

Modern machine tools heavily rely on advanced functions, and the parameters of these functions are often stored in NCKs rather than drives. However, the replacement of drives may affect their actual performance and must be verified.

Verification of spindle positioning (M19):

If the spindle is involved in positioning or C-axis function, the positioning accuracy of the spindle may be offset after replacing the MSD module.

Execute the M19 instruction. Observe whether the spindle can quickly and accurately stop at the specified angle. The jitter or slowness during the positioning process may be due to gain issues in the position loop.

Check the spindle MD 435 * -442 * (Kv factor during positioning) and MD 478 * -485 * (acceleration and deceleration time constant during positioning). These parameters need to be matched with the dynamic characteristics of the new drive. If there is a fixed angle deviation in the positioning, the parameter MD 459 * (zero mark offset) can be adjusted.
