Honeywell System 57 5704 Control System

Event printing module: Record alarm, fault events, and timestamps for easy traceability and compliance auditing.

Fault diagnosis and common problems

1. Fault codes and troubleshooting

The system displays the "ERxx" fault code through the control card LCD, and the core fault types and handling methods are as follows:

Meaning of fault code, possible causes, handling suggestions

ER97 EEPROM malfunction (configuration data lost) Control card storage chip damaged Replace control card

ER87 signal out of range (above configuration limit), sensor short circuit, high gas concentration. Check the sensor circuit and confirm the gas concentration on site

ER88 signal under range (below the lower limit of configuration) sensor open circuit, wire breakage check sensor wiring, replace faulty sensor

ER83 catalytic sensor bridge current fault sensor aging, excessive line resistance check line resistance (≤ 40 Ω), replace sensor

ER82 sensor lifespan expires, catalytic sensor sensitivity drops below 50%, replace sensor immediately

2. Common operational issues

Engineering card unresponsive: Check the DC input card power supply (18-32V DC) and fuse (10A). If the power supply is normal, try restarting the system;

Alarm not triggered: Confirm that the channel is not suppressed (INHIBIT light off), check if the alarm threshold configuration is correct, and verify the relay wiring;

Analog output abnormality: Check if the analog module (04200-A-0145/0146) is securely plugged in and confirm that the output type (current source/current sink) matches the external device.

Technical parameters and ordering information

1. Core technical parameters

Environmental adaptability: working temperature 0-55 ℃ (ATEX certification system starts at 0 ℃), storage temperature -25-85 ℃, relative humidity 0-90% (no condensation), altitude ≤ 5000m.

Electrical parameters: System power supply 18-32V DC; Control card power consumption 8.3-12.8W (depending on type); Relay contact capacity 5A (AC/DC).

Display and accuracy: Control card LCD display (4-character number+25 segment analog strip), concentration measurement accuracy ± 1% of full range, alarm threshold resolution 1% of full range.

2. Main ordering models

Example description of component type and model

Control card 05704-A-0144 four channel catalytic combustion sensor input card

Control card 05704-A-0145 four channel 4-20mA sensor input card

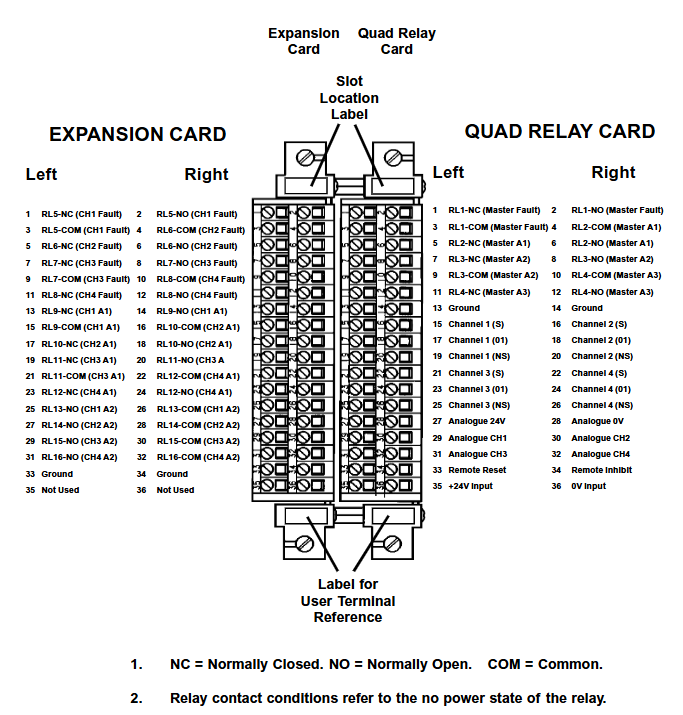

Relay Interface Card 05704-A-0121 Four Relay Interface Card (Basic Version)

Engineering Card 05701-A-0361 System Configuration and Diagnostic Card

AC-DC power supply 05701-A-0405 16 channel 50W power module (upgradable to 200W)

Cabinet 05701-A-0451 8-way wall mounted cabinet (cold-rolled steel plate)
