System Overview

UNITROL ®  5000 is ABB Switzerland UNITOL ®  The most powerful product in the series of excitation systems, the microprocessor based voltage regulator adopts the latest technology, and its research and development integrates over 40 years of semiconductor voltage regulator experience and more than 15 years of microprocessor technology application experience.

Application area

Suitable for static excitation systems (SES) powered by 50Hz, 60Hz, or 16 ²/∝ Hz, with excitation currents ranging from 1000ADC to over 10000ADC.

An automatic voltage regulation system (AVR) suitable for excitation machines, with special functions and power supply frequencies ranging from 16 ²/∝ Hz to 400Hz.

Core features of the system

Highlights of the regulator

Additional regulator redundancy: Dual channel system equipped with backup current regulator.

Digital input processing: three-phase voltage measurement, three-phase current measurement, and digital processing of input values through signal processors.

Additional features: Implemented solely through software solutions, without the need for additional hardware.

Additional Input/Output: Utilizing ARCnet ®  The device can be easily expanded to the required quantity, including both digital and analog types.

Event and error logs: with real-time timestamps, can be remotely queried.

Power section highlights

Power converter redundancy: It can support up to 8 parallel power converters, and its redundancy is completely independent of the regulator configuration.

Intelligent power conversion electronic devices: realize active current balancing between power converters, four quadrant operation (can generate negative excitation current), thyristor current monitoring, fan control and monitoring, fuses, power converter temperature and cooling airflow monitoring, and bridge current display functions.

system communication

Supports the most commonly used protocols for advanced control systems.

A second control panel can be installed in the control room, with a maximum distance of several hundred meters.

The remote diagnosis can be carried out by ABB service office through the Internet using PC software "AVRview".

System configuration

UNITROL ®  The 5000 adopts a modular "building block system" design, with over 80% of the system consisting of system components that have undergone type testing, ensuring higher quality and reducing delivery time.

Structural composition

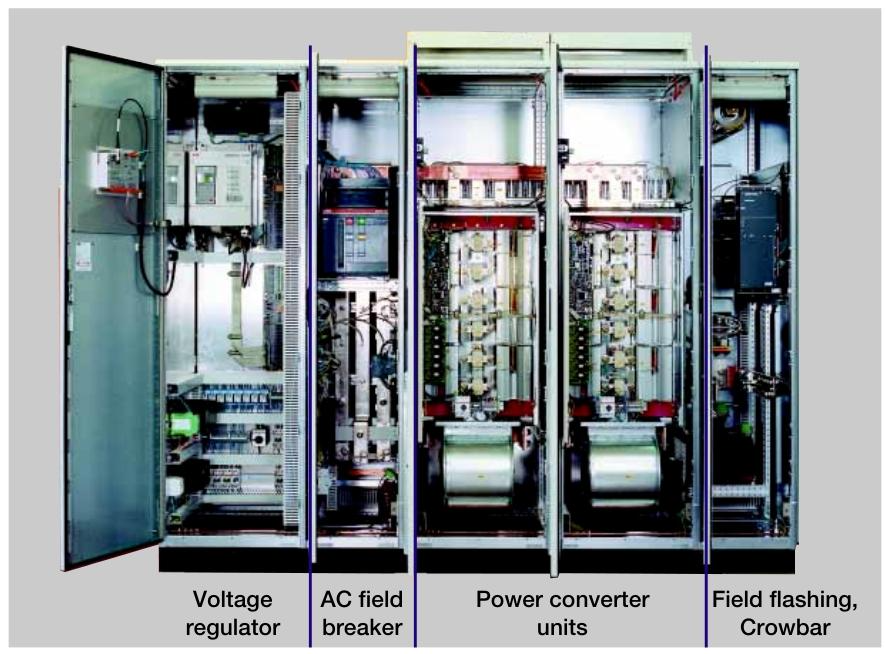

The power section includes one or more thyristor power converters, excitation circuit breakers on the AC or DC side, excitation flicker circuits, and solid-state demagnetization systems with Crowbar.

High availability design

In addition to voltage regulators (AUTO) and excitation current regulators (MAN), independent current regulators (separate devices with independent power supply, measurement, and gate control circuits) can also be used to improve the availability of the excitation system. Due to the tracking control of all inactive regulators, a smooth switch to the backup regulator channel can be ensured in the event of a failure in the active regulator.

Internal Communication and Power Converter

The internal data exchange of the system is carried out through the serial ARCnet bus, and additional interfaces or control panels can be located and operated within thousands of meters through optical links.

Adopting DCS 500 series compact power converters or UNL 13300 and Verithyr power converters, the type and parallel quantity are determined based on the required excitation current, maximum voltage, and maximum duty cycle required by the customer. It also provides options such as natural or forced cooling, redundant fans, and the ability to maintain a power converter during system operation (with a 5-pole isolator).

Software functions

Standard software functions

Regulator functions: including voltage regulator with PID filter (automatic mode), excitation current regulator with PI filter (manual mode), reactive and/or active current droop compensation, multiple limiters, tracking control, power factor/reactive load control, manual limitation, and optional power system stabilizer (PSS), etc.

Protection and monitoring functions: covering multiple functions such as excitation flashing time, overcurrent protection, volt/hertz protection, demagnetization protection, rotor temperature monitoring, etc., and can be classified at three different action levels (fault display only, switching to the second channel or backup regulator, instantaneous excitation trip).

Control function: All standard excitation sequences and interlocks are based on software, using fixed pre programmed function blocks that users can expand through free programming function blocks.

Data recording: The event recorder (fault log) can record up to 100 events and alarms with real-time timestamps, and the data recorder (data log) can record up to 6 measurement signals in real time.

Processor monitoring: After the power is turned on, the processor starts self checking and also has an internal watchdog function to monitor the correct execution of the program.
