UniOP MD02F/R series compact HMI technology explanation and application guide

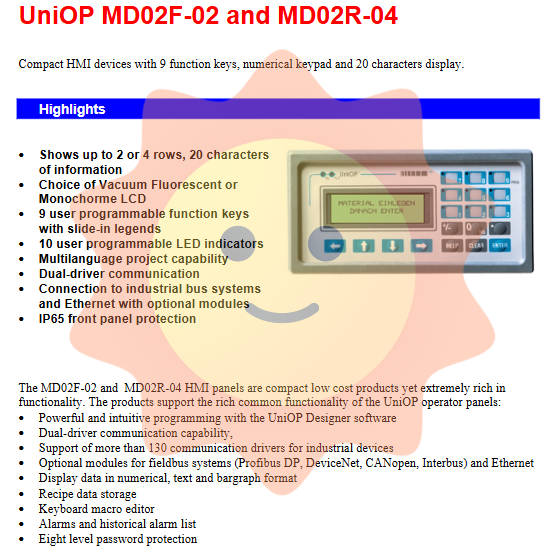

Technical Guide to UniOP MD02F-02 and MD02R-04 HMI Terminals

Introduction to the UniOP MD02 Series

In the landscape of industrial automation, the requirement for compact yet high-functionality Human-Machine Interfaces (HMI) is critical. The UniOP MD02F-02 and MD02R-04 models represent a specialized class of low-cost, feature-rich HMI terminals designed by Sitek S.p.A.. These devices bridge the gap between simple text displays and complex graphical terminals, providing 9 programmable function keys and a dedicated numerical keypad for precise operator control.

Display Technology and Hardware Variants

The MD02 series is bifurcated based on display technology to suit varying ambient light conditions and information density requirements:

MD02F-02 (VFD): Utilizes a Vacuum Fluorescent Display (VFD). It supports a 2-row by 20-character format with a character height of 5 mm. VFD technology is prized in industrial settings for its high contrast and wide viewing angles.

MD02R-04 (LCD): Features a Monochrome Liquid Crystal Display (LCD). This variant doubles the information capacity to 4 rows by 20 characters while maintaining the 5 mm character height. It offers a backlight lifetime of 100,000 hours and software-adjustable contrast.

Communication Architecture and Interoperability

One of the most robust features of the MD02 series is its communication flexibility, designed to integrate into heterogeneous industrial environments:

Dual-Driver Capability: These units support the simultaneous operation of two communication drivers, allowing the HMI to act as a data concentrator between different PLC brands or protocols.

Extensive Protocol Support: With access to over 130 communication drivers, the MD02 series can interface with a vast array of industrial devices.

Fieldbus and Ethernet Integration: While the standard PLC port supports RS-232, RS-422, RS-485, and 20 mA Current Loop, an optional "Aux port" allows for expansion into Profibus DP, DeviceNet, CANopen, Interbus, and Ethernet.

UniNet Networking: The devices function within the UniNet network in both Client and Server modes.

Technical Specifications and Environmental Resilience

Engineered for the factory floor, the MD02 series adheres to stringent hardware standards:

Advanced Software Functionality

Programmed via the UniOP Designer software, the MD02 series offers logic and data handling capabilities usually reserved for larger panels:

Recipe Management: 16 KB of dedicated recipe memory for storing machine parameters.

Alarm Management: Supports up to 1024 alarms with a 256-entry historical event list and dedicated info pages.

Security: Implementation of an eight-level password protection system.

Macro Editor: A keyboard macro editor allows for the automation of complex key sequences.

Physical Installation and Maintenance

The physical footprint is optimized for machine-mount applications. The faceplate dimensions are $195times98~mm$, requiring a cutout of $174times78~mm$. Depending on the specific model (e.g., -0050), the cutout depth requirement is between 74 mm and 82 mm .

For maintenance, the unit includes diagnostic LEDs:

DL (Green): Indicates communication status;  it flashes during errors and remains on during key presses for tactile feedback.

FL (Red): Monitors hardware health;  a blinking light signals a low battery, while a steady light indicates a hardware fault.

Conclusion

The UniOP MD02F-02 and MD02R-04 remain definitive choices for engineers requiring a reliable, compact interface that does not compromise on connectivity or environmental endurance. Their ability to handle complex multi-language projects and diverse fieldbus protocols ensures their longevity in global industrial applications.
