YOKOGAWA Model AIP830 Operation Keyboard for Singleloop Operation

YOKOGAWA Model AIP830 Operation Keyboard for Singleloop Operation

Product Overview

Product Name: AIP830 Single Circuit Operation Keyboard

Applicable equipment: Desktop HIS (each desktop HIS can only be paired with one keyboard)

Core feature: In addition to buzzer alarm, built-in independent USB speaker (sound function)

Hardware core specifications

Specification category specific parameters

Keyboard type: tablet keyboard (with integrated USB speaker sound function)

PC interface type: USB A-type × 2 (requires direct connection to PC); Keyboard operation function: USB 2.0 (full speed, bus powered); Sound function: USB 1.1 (full speed, bus powered)

Power supply parameter input voltage: 5V ± 5% (powered by PC USB port); Maximum current consumption: 1A

Physical characteristic weight: 2.0kg (without VESA bracket), 2.5kg (with VESA bracket); Color: Black (equivalent to Munsell color code N1.5)

Installation category IEC 61010-1 Installation category Class I (not directly connected to the main power supply)

Environmental conditions: working environment: temperature 5-40 ℃, humidity 20-80% RH (no condensation); Storage/transportation environment: temperature -20-60 ℃

VESA bracket requires AIP830 with VESA bracket to be installed in a position with a load-bearing capacity of ≥ 10kg; The bracket hole supports 75mm and 100mm specifications, only compatible with M4 × L10 screws

Cable length 2300 ± 100mm

Compliance requirements

Safety standards: Compliant with CSA and CE Marking (provided that the connected PC is marked with the corresponding certification mark)

EMC Compliance Standards: Compliant with CE Marking, C-Tick Marking, KC Marking (provided that the connected PC is marked with the corresponding certification mark)

Exception: EN 61000-3-2 and EN 61000-3-3 standards in CE Marking are not applicable to AIP830

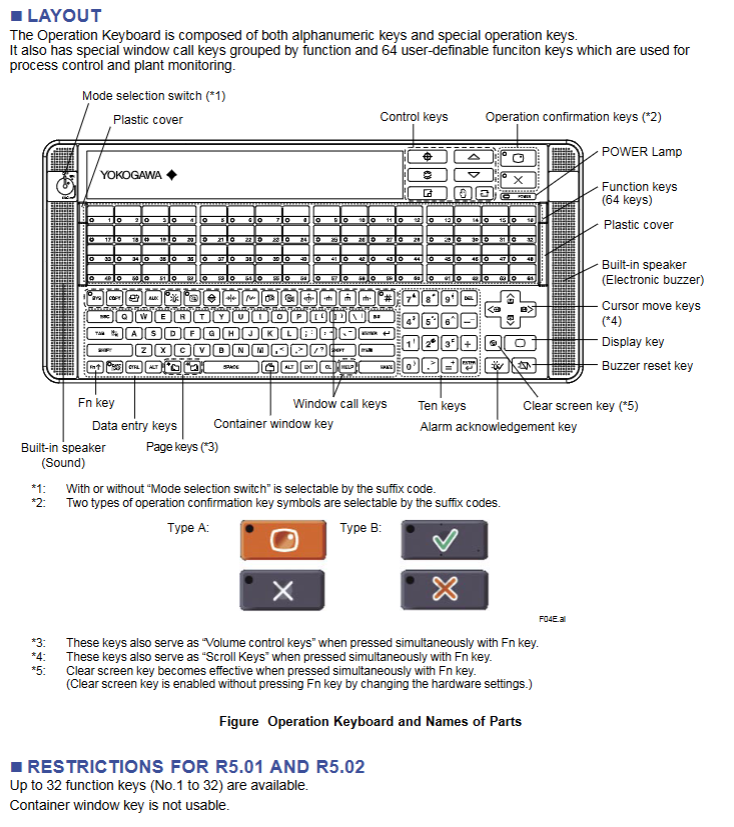

Keyboard layout and functionality

Button composition:

Basic keys: alphanumeric keys, control keys, cursor movement keys, numeric keypad, data input keys

Function keys: 64 user-defined function keys (for process control and factory monitoring), dedicated window call keys (grouped by function)

Special buttons: power indicator light, buzzer reset button, alarm confirmation button, screen clearing button, page flipping button, container window button (some versions are limited)

Optional configuration (selected by suffix code):

Mode selection switch: -0 (none), -1 (yes)

Operation confirmation keys: 0 (Type A), 1 (Type B)

Fn combination key function:

Page up key+Fn: volume control key

Cursor movement key+Fn: scroll key

Clear screen button+Fn: Clear screen function (can be changed to be directly effective without Fn through hardware settings)

Version restrictions (R5.01/R5.02 versions):

Function keys only support the first 32 (numbers 1-32)

Container window key not available

Key issue

Question 1: What are the core hardware parameters (power supply, interface, weight) and usage environment requirements of AIP830 keyboard?

Answer: Core hardware parameters: ① Power supply: Input voltage 5V ± 5% (powered by PC USB port), maximum current consumption 1A; ② Interface: USB A-type × 2 (operation function: USB 2.0, sound function: USB 1.1, both powered by full speed bus); ③ Weight: 2.0kg without VESA bracket, 2.5kg with VESA bracket. Environmental requirements: working temperature 5-40 ℃, humidity 20-80% RH (no condensation); Storage/transportation temperature -20-60 ℃.

Question 2: What are the core features of the AIP830 keyboard's key functions? What are the limitations of R5.01/R5.02 versions?

Answer: Core key features: ① Includes alphanumeric keys, 64 user-defined function keys (for process control and factory monitoring), dedicated window call keys, etc; ② Support mode selection switch (optional), A/B type operation confirmation key (optional); ③ The Fn combination key can achieve volume control, scrolling, and screen clearing functions (screen clearing can be exempted from Fn activation). R5.01/R5.02 version limitations: ① Only supports 32 function keys (numbers 1-32); ② The container window key is not available.

Question 3: What are the compliance standard requirements and model coding rules for AIP830 keyboard?

Answer: Compliance standard requirements: The PC that needs to be connected must be labeled with the corresponding certification mark in order to comply with CSA, CE Marking (safety standards), CE Marking, C-Tick Marking, KC Marking (EMC standards), and EN 61000-3-2/3-3 in CE Marking is not applicable to this product. Model coding rules: ① Main model AIP830; ② Suffix code: -0/-1 (with/without mode switch), 0/1 (A/B type confirmation key), fixed value 1; ③ Option codes:/VESA (with VESA bracket),/EIM (English manual),/JIM (Japanese manual); Ordering requires specifying the model, suffix code, and option code.
