Honeywell portable gas detection

Honeywell portable gas detection

Product Classification and Overview

This guide covers Honeywell's various portable gas detection products, mainly divided into single gas detectors, multi gas detectors, as well as supporting docking, testing and data management equipment, calibration testing and sampling equipment, aiming to provide safe, compliant and efficient solutions for gas detection in different scenarios.

Single gas detector

BW Clip Series

Gas detection: H ₂ S, CO, O ₂, SO ₂ (2-year warranty); H ₂ S, CO (3-year warranty).

General specifications: Size 1.6 x 2.0 x 3.4 inches, weight 3.2 ounces, typical battery life of 2 years (H ₂ S, CO, SO ₂ or O ₂) or 3 years (H ₂ S or CO).

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; Multiple certifications including Class I, Zone 0, Group IIC, etc.

Warranty: 2 or 3 years (under normal use) after activation, plus 1 year warranty (6 months for some models). The 2-year H ₂ S and CO detectors can be extended up to 3 years (limited to 24 months of detector operation time) when using the sleep function.

Features: Maintenance free operation for up to 3 years, no need for calibration, replacement of sensors and batteries. The 2-year H ₂ S or CO detector can extend its service life through a sleep box and is compatible with MicroDock II and IntelliDoX instrument management systems.

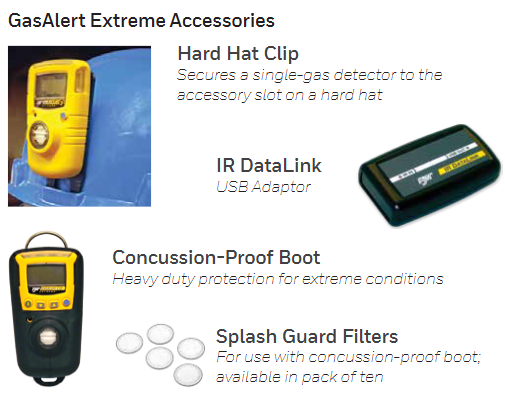

GasAlert Extreme

Detecting gases: H ₂ S, CO, CO-H, O ₂, SO ₂, NH ∝, PH ∝, Cl ₂, ClO ₂, NO, NO ₂, HCN, ETO, O3, etc.

General specifications: Size 1.1 x 2.0 x 3.75 inches, weight 2.9 ounces, typical battery life of 1.5 years.

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; Multiple certifications including Class II, Div. 1, Gr. E, F, G, etc.

Warranty: Full 2-year warranty (including sensors, Cl ₂, NH ∝, O3, ETO, and ClO ₂ sensors for 1 year).

Features: Compact and affordable, capable of monitoring multiple single gas hazards, battery and sensor replaceable on site, multiple tamper proof user options and multilingual display, data recording as standard configuration, easy calibration, compatible with MicroDock II automatic testing and calibration system.

Multi gas detector

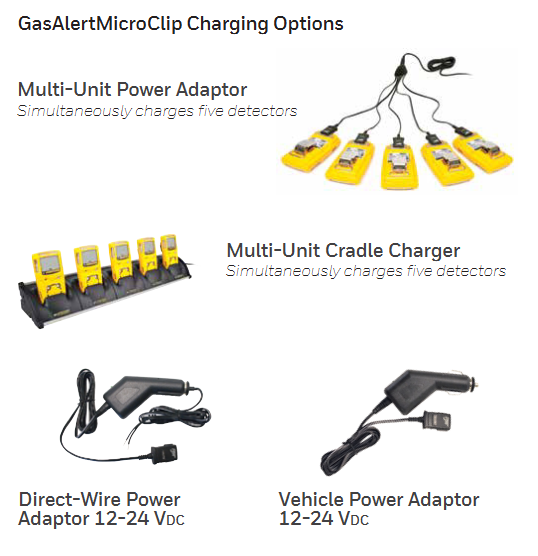

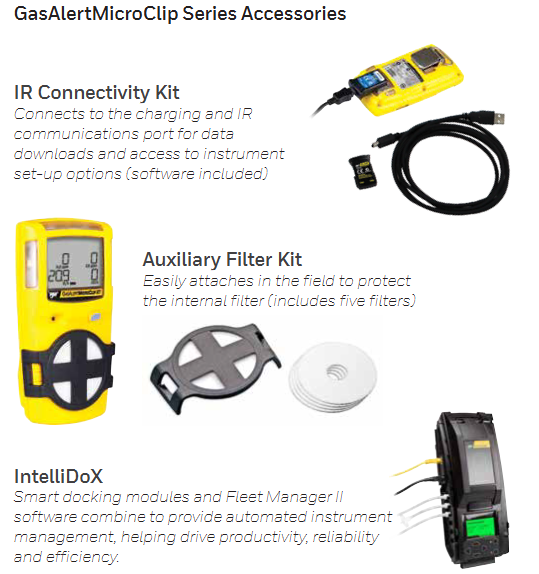

GasAlertMicroClip series

Detecting gases: H ₂ S, CO, O ₂ LEL。

General specifications: Size 4.4 x 2.4 x 1.2 inches, weight 6.7 ounces, operating temperature -4 to+122 ° F, typical battery life of 18 hours (less than 6 hours on charge).

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; ATEX: X g II 1 G Ex ia IIC T4 Ga, etc.

Warranty: GasAlertMicroClip XL comes with a full 2-year warranty (including sensors and batteries); GasAlertMicroClip X3 comes with a 3-year warranty (including all sensors).

Features: Easy to wear, slim and compact, GasAlertMicroClip X3 has longer battery life in cold weather, with green IntelliFlash ™ Blinking, one click operation reduces training time, compatible with MicroDock II and Fleet Manager II software.

BW Clip4

Detecting gases: H ₂ S, CO, O ₂ LEL。

General specifications: Size 4.7 x 2.7 x 1.3 inches, weight 8.2 ounces, operating temperature -4 to+131 ° F, typical battery life of 2 years (continuous operation).

Certification and approval: Class I, Div 1, Group A, B, C, D; Class I, Zone 0, Group IIC, etc.

Warranty: Full 2-year warranty (including all sensors).

Features: Easy to operate, "always on", no need to charge, replace batteries or sensors, low cost of ownership, backed by Honeywell's quality commitment.

GasAlertQuattro

Detect gases: H ₂ S, CO, O ₂, LEL (1-4 gases).

General specifications: Size 5.1 x 3.2 x 1.9 inches, weight 11.15 ounces (with rechargeable battery pack) or 11.92 ounces (with alkaline battery pack), typical battery life AA alkaline battery 14 hours (+68 to 122 ° F), rechargeable battery 20 hours (+68 to 122 ° F), etc.

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; ATEX: X g II 1 G Ga Ex ia IIC T4 Ga, etc.

Warranty: Full 2-year warranty (including all sensors).

Features: Sturdy and reliable, one click operation, flexible power options, graphic LCD display with easily recognizable icons, IntelliFlash provides continuous visual confirmation, suitable for various industrial applications, compatible with MicroDock II system.

GasAlertMax XT II

Detect gases: H ₂ S, CO, O ₂, LEL (1-4 gases).

General specifications: Size 5.1 x 2.8 x 2.0 inches, weight 11.5 ounces, typical battery life of 13 hours (32 ° F), 8 hours (-4 ° F), and 6 hours of charging.

Certification and approval: IECEx: Ga Ex ia IIC T4; Class I, Div. 1, Gr. A, B, C, D, etc.

Warranty: Full 2-year warranty (including all sensors).

Features: Easy to operate, equipped with SmartSample pump, IntelliFlash flashing LED compliance indicator, reliable monitoring of multiple hazards, compatible with MicroDock II automatic testing and calibration system.

GasAlertMicro 5 Series

Detecting gases: VOCs, CO ₂, LEL, H ₂ S, CO, O ₂, SO ₂, PH ∝, NH ∝, NO ₂, HCN, Cl ₂, ClO ₂, O3, etc. (1-5 gases).

General specifications: Size 5.7 x 2.9 x 1.5 inches, weight 13.1 ounces, operating temperature -4 to+122 ° F (PID 14 to+104 ° F), typical battery life of 20 hours (PID/IR 15 hours).

Certification and approval: Class I, Div. 1, Gr. A, B, C, D; ATEX: X g II 1 G Ga Ex ia IIC T4 *, etc.
