Honeywell 3320GHD-4-INT reader

Honeywell Vuquest 3320g stationary scanner

summarize

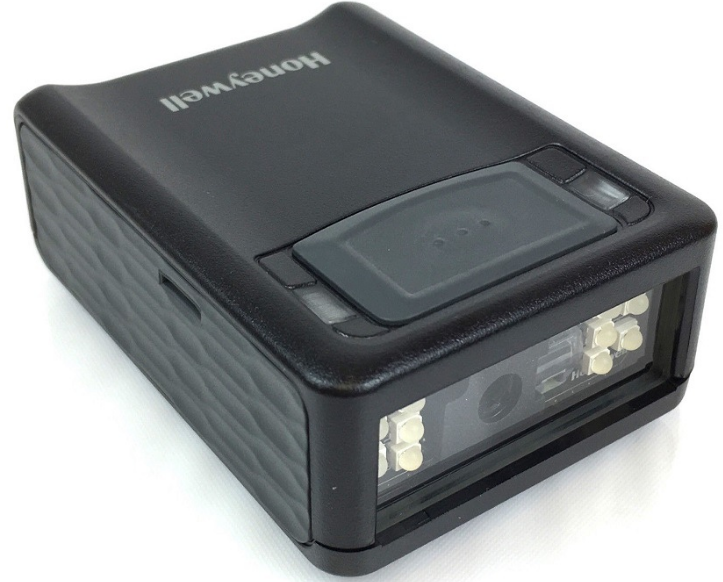

The Honeywell Vuquest 3320g compact area-based imaging scanner provides excellent 1D, PDF and 2D barcode scanning (even on mobile phone and computer screens) and digital image capture. The stylish and elegant design of the scanner integrates with the retail environment to provide superior performance scanning for all printed barcodes, as well as digital barcodes for smart devices.

Intelligent interface design

This intelligent multi-interface design supports all popular interfaces in one device, replacing time-consuming processes with automatic interface detection.

Non-laser amplitude modulation

Non-laser amplitude modulation provides accurate scanning indications, creating a customer-friendly operating environment while removing the risk of eye injury.

Easily scan bar codes on the screen

Just like print and paper versions, bar codes can be easily scanned directly from a mobile device or computer screen.

Flexible certificate

The flexible certificate solution meets current scanning needs and can be upgraded with certificate purchases in the future.

Product Details

Designed with the customer in mind, the unobtrusive lighting reduces the annoying after-effects typically associated with lighting used in image-based Vuquest 3320g scanners.

The TotalFreedom™2.0 second generation development platform supports decoding and formatting plug-ins that can be loaded directly into Vuquest 3320g scanners, extending scanner capabilities and enabling businesses to quickly support their own or newly developed barcode systems. Controlling the ability to trigger external devices such as buzzers, photos, or lighting via external I/O functions allows the Vuquest 3320g scanner to enter new markets that were once the exclusive domain of expensive industrial products.

The Vuquest 3320g compact regional imaging scanner is small in size and features an ergonomic thumb start button and clearly visible leds to provide you with a reliable handheld or wearable scanning solution. The Vuquest 3320g scanner adds universal mount and rugged presentation mode scanning, making it the ideal fixed mount scanning solution for light industrial applications and newsstands.

Physical parameter

Volume (length x width x height)

73 mm x 51 mm x 26 mm

weight

77 g (2.7 oz)

terminating

15-POS D-Sub connector

Electrical parameter

Input voltage

5VDC ± 0.25V

Operating power

2.3W (450mA@5V)

Standby power

0.45W (90mA@5V)

Host system interface

USB, RS-232 and keyboard ports

Environmental parameter

Operating temperature

-20°C~50°C (-4°F~122°F)

Storage temperature

-20°C~70°C (-4°F~158°F)

humidness

5%~95% relative humidity, no condensation

Drop resistance

Able to withstand a drop from a height of 1.5 m

Environmental seal class

IP53

Light level

0 ~ 100,000 lux (9,290 foot-candles)

Scanning performance

Scanning mode

2D image (838 x 640 pixels)

Motion tolerance

in focus position >270 cm/s (106 in/s)

Scanning Angle

Horizontal: 42.4° Vertical: 33°

Focal point

127 mm (5 in)

Print contrast

Minimum 20% reflection difference

Dip, bevel

±45°, ±65°

Decoding capability

Read standard one-dimensional, PDF, 2D, postal, and OCR characters. Note: Decoding capability depends on kit configuration
