  • Siemens 6SL3210-1SE31-0AA0 45kW Power Module
    ❤ Add to collection
  • Siemens 6SL3210-1SE31-0AA0 45kW Power Module

    ABB、GE、FANUC、Allen-Bradley、FOXBORO、Honeywell,KUKA、YOKOGAWA、YOKOGAWA、KOLLMORGEN、METSO、Motorola、NI、OEMAX、RELIANCE、Vibro-Meter、Rolls-Royce、MOOG、B&R、Woodward、Yaskawa、XYCOM、Emerson、HIMA、Bently、PROSOFT、TRICONEX、KEBA、Lenze、Alstom、CTI、DCSSystem accessories, robot system accessories, large servo system spare parts.
    Mr.FSN
    chnfcsXM@163.com
    +86-153-9626-8993
    Selection, installation, operation, maintenance, troubleshooting, safety
    Petrochemical/Chemical,Power industry,Metallurgical industry,Municipal/Environmental Protection,Oil and gas industry,Robot system accessories,automobile manufacturing,3C Electronics,Machining
    • ¥45362.00
      ¥46362.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:12.450KG
    • Quantity:
    • (Inventory: 5346)
Description
<span style="font-size: 18px; font-family: arial;">Siemens 6SL3210-1SE31-0AA0 45kW Power Module</span>

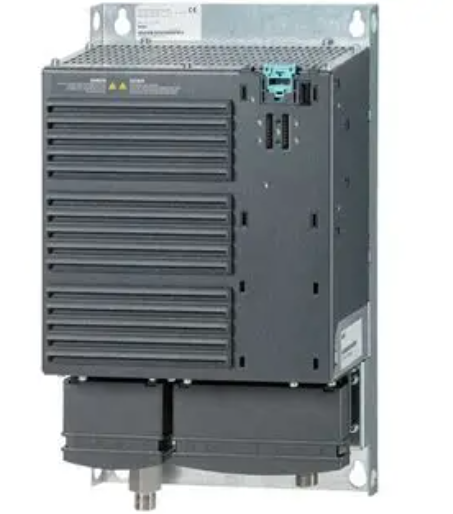

Siemens 6SL3210-1SE31-0AA0 SINAMICS PM340 Power Module 45kW

The Siemens 6SL3210-1SE31-0AA0 is a SINAMICS PM340 Power Module designed for use with the SINAMICS S120 converter system. This power module serves as the controlled power unit for driving AC motors, providing the interface between the DC link and the motor. The PM340 product line spans power ratings from 0.12 kW up to 90 kW, with this model delivering 45 kW of motor output power. The blocksize format with integrated line filter allows direct connection to the mains network, simplifying system design and reducing cabinet space requirements for applications that do not require additional external filtering.

Electrical Ratings and Input Specifications

The power module operates on a three-phase AC input voltage range of 380 to 480 V, with rated frequency of 50/60 Hz. The input current handling capability is sufficient to support the rated output, with the unit designed for operation on industrial power systems. The output is three-phase AC at 90 A, corresponding to a motor power rating of 45 kW based on typical industrial motor efficiency and power factor values. The power module includes an integrated line filter that reduces conducted emissions back onto the mains network, facilitating compliance with EMC standards without requiring external filtering components in many installations. This internal line filter is part of the standard FSE frame size specification for this power segment.


Cooling and Thermal Management

The 6SL3210-1SE31-0AA0 utilizes internal air cooling to dissipate heat generated during operation. The cooling system draws ambient air through the module, passing it over heat sinks and power semiconductor devices to maintain appropriate junction temperatures. For correct operation, the user must ensure that cooling clearances are maintained around the module and that the control cabinet ventilation is adequate for the total heat dissipation of all installed components. The FSE blocksize frame design incorporates cooling fins on the rear surface to maximize heat transfer to the surrounding air. The module is rated for operation at 100% load without derating up to 40°C ambient, with derating required at higher temperatures per Siemens application guidelines.

Interfaces and Connections

The power module includes standardized interfaces for integration with SINAMICS S120 control units. A PM-IF interface connector is provided for connecting the PM340 Power Module to a CU305 Control Unit or appropriate CU320 control unit, carrying all necessary power and signal connections between the control section and the power section. A network connection is provided for communication with the control unit and higher-level automation systems. Terminals are provided for connecting an external braking resistor to the integrated braking unit (braking chopper). The braking chopper is rated to continuously utilize the external braking resistor, enabling controlled deceleration of high-inertia loads. The integrated braking unit eliminates the need for a separate external braking module for many applications. Motor connection is accomplished using screw terminals or bolted connections, sized appropriately for the conductor gauges required to carry 90 A of output current.

Integrated Functions and Protection

A controller for a safe brake relay is integrated into the module, providing control signals for operating a motor holding brake directly from the drive. This integration simplifies wiring and safety circuit design by eliminating an external brake control relay. The power module also supplies power to the connected CU305 Control Unit using an integrated power supply, further simplifying the system electrical architecture by reducing the number of external 24V DC power feeds required. Protection functions include monitoring for overcurrent, overtemperature, undervoltage, and short circuit conditions, with fault reporting to the control unit for system response. The module includes IGBT overload protection and monitoring of heat sink temperature, with derating or shutdown initiated when thermal limits are exceeded.

Physical Dimensions and Enclosure

The 6SL3210-1SE31-0AA0 is housed in a Blocksize FSE frame, with dimensions of 633 mm height, 203.5 mm depth, and standard blocksize width of approximately 300 mm. The enclosure provides IP20 degree of protection, suitable for installation within a control cabinet where the module is protected from direct contact and external contamination. The housing material is sheet steel and plastic components designed to meet industrial environmental requirements for temperature, humidity, and vibration. Weight of the module is approximately 27.1 kg. The form factor is consistent with the SINAMICS S120 modular drive architecture, allowing multiple power modules and other components to be mounted side by side in a coordinated layout within standard control cabinets.

Integration with SINAMICS S120 System

The PM340 power module is compatible with the SINAMICS S120 drive system platform, which provides isochronous real-time communication over PROFINET IRT, enabling high-performance coordinated multi-axis motion control. The power module can be integrated into standalone single-axis applications or multi-axis systems where multiple power modules share a common DC link. Typical applications include cranes, hoists, conveyors, extruders, pumps, fans, and general machinery requiring speed or torque control. The 45 kW power rating and 90 A output capability support medium to large industrial motors in demanding continuous duty applications. The PM340 is suitable for pump and fan applications as well as conveying and material handling systems requiring controlled acceleration and deceleration.

Conclusion

The Siemens 6SL3210-1SE31-0AA0 SINAMICS PM340 power module delivers 45kW of motor output power with 90A three-phase output. Its 380-480V input, integrated line filter, and blocksize FSE format support integration with SINAMICS S120 systems for industrial motor drive applications.
