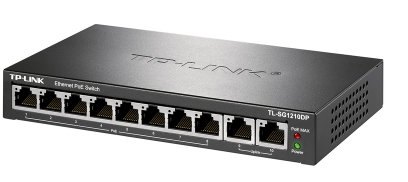

  • Ethernet switch /8GE(PoE)+2GE TL-SG1210DP
    ❤ Add to collection
  • Ethernet switch /8GE(PoE)+2GE TL-SG1210DP

    • ¥36987.00
      ¥35637.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.000KG
    • Quantity:
    • (Inventory: 20)
Description

TL-SG1210DP is a full gigabit non-NMS PoE switch developed by TP-LINK. Ports 1 to 8 support PoE+ function and comply with IEEE 802.3af/at standards. Single-port PoE power can reach 30W, and the maximum PoE output power of the whole machine is 57W. As a PoE power supply device, it can automatically detect and identify power receiving devices that meet the standards and supply power to them through network cables. Plug and play, simple and convenient to use, suitable for hotels, campuses, factory dormitories and small and medium-sized enterprises to establish an economical and efficient PoE network.

Full gigabit ports

Provides 10 10/100/1000BASE-T RJ45 ports.

All ports support Gigabit non-blocking line-speed forwarding for smooth transmission.

Support IEEE 802.3x full duplex flow control and Backpressure half duplex flow control.

PoE power supply function

The eight 10/100/1000Base-T RJ45 ports support PoE+ power supply for scenarios such as visual security, conference calls, and wireless coverage.

Comply with IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 57W, and the maximum PoE output power of a single port is 30W.

PoE devices are automatically identified for power supply without damaging non-poe devices.

The PoE port supports the priority mechanism. When the remaining power of the POE port is insufficient, the power supply of the port with a higher priority is ensured to prevent device overload.

Three modes of operation

Standard switching mode ---- all ports free communication, suitable for common data transmission environment;

The video surveillance mode ---- is specially designed for monitoring application scenarios to improve the phenomenon of stuttering and Mosaic in the monitoring network.

VLAN isolation mode: This mode applies to the scenario where wireless aps are connected, restraining network storms and improving network performance.

Equipment stable and reliable

Low power consumption design of the host, fan to enhance heat dissipation, to ensure the stable operation of the product.

TP-LINK self-developed power supply, high redundancy design, to provide long-term stable PoE power output.

Simple operation

Plug and play, no configuration, simple and convenient.

Users can easily know the working status of the device through the Power indicator and port status indicator.
