Technical Overview and Operational Excellence

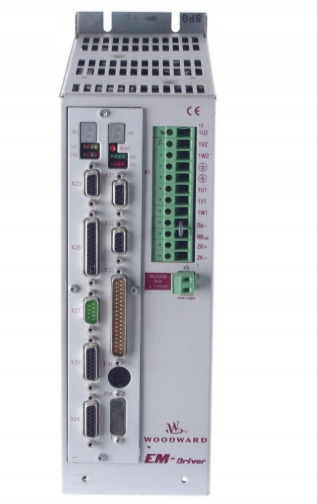

The WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000, also identified as part number 3522-1004, represents a pinnacle of engineering in the realm of industrial speed control and turbine management systems. Designed for seamless integration and unwavering reliability, this module serves as the intelligent core for governing prime movers in critical applications. Its architecture is built upon decades of Woodward's field-proven technology, refined to meet the precise demands of modern power generation, mechanical drive, and compression systems.
Core Design Philosophy: The BUM60 series emphasizes modularity and robust communication capabilities. This specific variant is configured for optimal performance in systems requiring precise analog and digital interfacing, offering engineers a versatile platform for custom control strategies without compromising on stability or response time.
Primary Functional Capabilities
At its heart, the BUM60-1224-54-B-001-VC-A0 module is a dedicated controller for regulating speed, load, and process variables. It continuously monitors input signals from magnetic pickups, analog sensors, and potentiometers, executing complex PID (Proportional-Integral-Derivative) control algorithms to adjust actuator outputs with exceptional accuracy. The unit is capable of managing both isochronous and droop speed control modes, facilitating seamless load sharing between multiple units operating in parallel. Its advanced circuitry ensures stable operation even in the presence of electrical noise common in industrial environments.
Hardware and Configuration Specifications
The module's part number encodes its specific configuration. The "1224" designation typically relates to the input voltage requirements, while subsequent suffixes detail I/O options, communication protocol versions (like VC for a specific communication variant), and firmware revisions (A0). The 3522-1004 number is a key reference for replacement and procurement. The hardware is built to withstand industrial temperatures and vibrations, featuring high-grade connectors and a printed circuit board with protective conformal coating to ensure longevity in harsh conditions.
Speed Sensing: Accepts input from multiple magnetic pickups for redundancy and high-resolution speed detection.
Actuator Drive: Provides precise current or PWM output to control hydraulic, electric, or pneumatic actuators.
Communication Interface: Equipped with dedicated serial communication channels for integration into distributed control systems (DCS) or SCADA networks, allowing for remote monitoring, calibration, and diagnostics.
Flexible I/O: Includes configurable analog and digital inputs and outputs for interfacing with pressure transducers, temperature sensors, solenoids, and alarm circuits.
Protective Functions: Integrates critical overspeed protection and system fault detection logic, enhancing the safety of the overall machinery train.
Typical Application Environments
This control module finds its primary application in sectors where precise rotational speed is paramount. It is extensively used in gas and steam turbine power plants for both base-load and peaking power units. Furthermore, it is an ideal solution for compressor and pump drives in oil & gas pipelines, as well as in marine propulsion control systems. Its robustness makes it suitable for both new installations and modernization projects for legacy control systems seeking upgraded digital functionality and connectivity.
Implementing the WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-0000 module translates to enhanced operational efficiency, reduced fuel or steam consumption through optimized control, and increased availability of critical assets. Its design facilitates easier troubleshooting and maintenance, with status indicators and accessible test points. For engineers and plant managers, this module offers a reliable, precise, and communicative control solution that forms a trustworthy backbone for demanding industrial control processes.
