Description
<span style="font-size: 20px; font-family: arial;">Samsung CSDJ-10BX2 AC Servo Drive 1KW 220V</span>

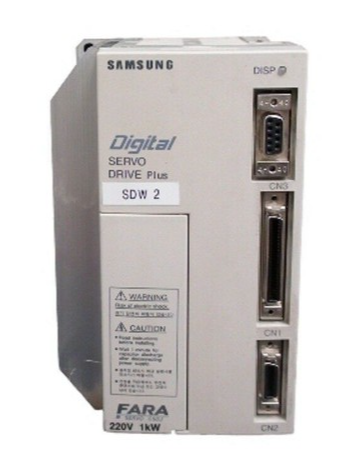

Samsung CSDJ-10BX2 AC Servo Drive

The Samsung CSDJ-10BX2 is a high-performance AC servo drive module engineered for precision motion control in industrial automation systems. Part of the CSDJ Plus series, this full-digital AC servo motor drive delivers exceptional accuracy and stability for demanding manufacturing applications.

Core Technology

The CSDJ-10BX2 utilizes 32-bit high-speed DSP technology to provide full digital control with high speed and precision. The drive features an autotuning function that simplifies system operation, making it accessible even for beginners while maintaining professional-grade performance.


Technical Specifications

ParameterSpecification
Rated Output Power1KW (1000 Watts)
Input VoltageSingle-Phase 220V AC +10%, -15%
Input Frequency50/60 Hz
Feedback Device2048 P/R Incremental Encoder
Control ModesPosition Control, Speed Control, Torque Control
Speed Control Range1:3000
Operating Temperature0°C to +55°C
Storage Temperature-20°C to +65°C
Protection FunctionsOver-current, Overload, Over-voltage, Over-speed, Inverter Overheat, Low Voltage, CPU Defect, Encoder Defect, Communication Error

Key Features

  • Full Digital Control – High-speed and high-accuracy control using 32-bit DSP architecture

  • Compact Design – Space-efficient form factor suitable for constrained installation environments

  • Autotuning Function – Simplified commissioning and setup for optimal performance

  • Multiple Control Modes – Selectable position, speed, and torque control for application flexibility

  • Built-in Protection – Comprehensive fault detection including over-current, overload, over-voltage, and over-speed protection

  • External Display Option – Allows monitoring of speed, torque, position, and operational parameters

  • Dynamic Brake – Integrated braking function for controlled deceleration

Applications

The Samsung CSDJ-10BX2 servo drive is ideally suited for:

  • CNC machine tool positioning and spindle control

  • Industrial robotics and articulated arm control

  • Packaging machinery and labeling equipment

  • Pick-and-place automation systems

  • Textile machinery and printing presses

  • Semiconductor manufacturing equipment

  • Automated assembly lines


Control Modes Overview

Position Control: Provides precise positioning capability for applications requiring accurate stop positioning and motion profiling. This mode is ideal for CNC machinery, robotic axes, and pick-and-place systems.

Speed Control: Offers stable velocity regulation across varying load conditions. Suitable for conveyor systems, spindle drives, and web handling applications.

Torque Control: Enables accurate torque regulation for tension control, winding applications, and force-sensitive processes.

Compatibility and Integration

The CSDJ-10BX2 is designed to integrate seamlessly with Samsung CSMT and CSMR series servomotors ranging from 30W to 1KW. The drive supports PC software compatibility for advanced configuration and monitoring. Communication capabilities include standard I/O interfaces for integration with PLC systems and industrial controllers.


Environmental and Installation Considerations

The drive is rated for operation in ambient temperatures from 0°C to 55°C with humidity below 90% RH non-condensing. For control panel installations, ensure adequate ventilation to maintain internal temperatures within the specified range. The compact design allows for vertical or panel mounting configurations.

Safety and Protection

The CSDJ-10BX2 incorporates multiple protection mechanisms to ensure reliable operation and equipment safety. These include over-current protection that trips when output current exceeds rated limits, overload protection for motor and drive thermal management, over-voltage protection for DC bus voltage monitoring, and encoder defect detection to prevent position feedback errors. Communication error detection ensures data integrity between the drive and control system.

Maintenance and Diagnostics

Intuitive diagnostic tools and setup interfaces enable quick troubleshooting and customization to suit specific operational needs. The drive status can be monitored through the optional external display, providing real-time visibility into operational parameters including speed, torque, and position feedback.
