GE DS200DCFBG1BKC Power Supply Board
GE DS200DCFBG1BKC Power Supply Board
Product Overview

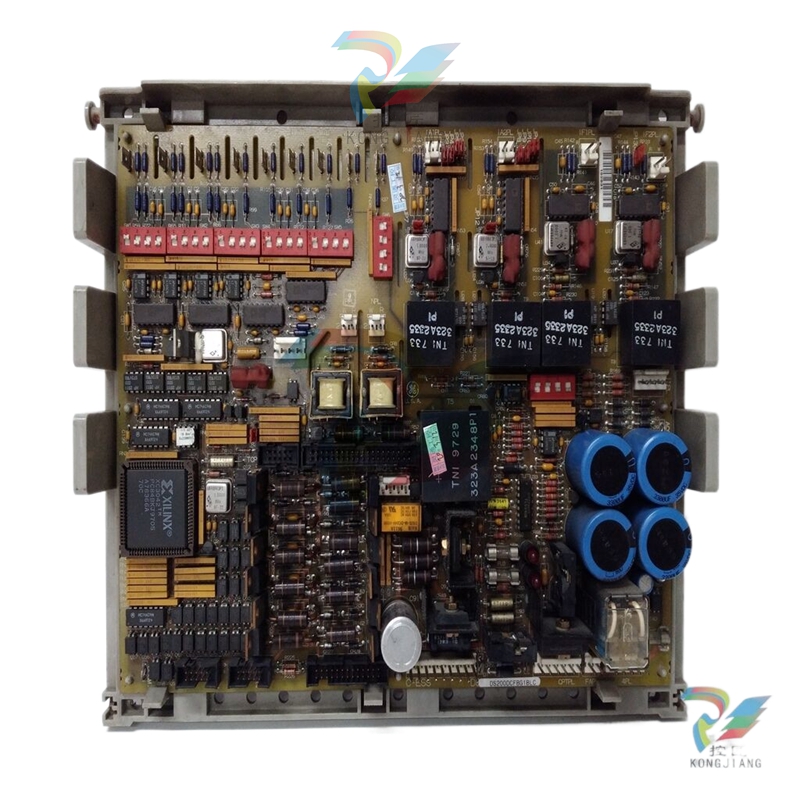

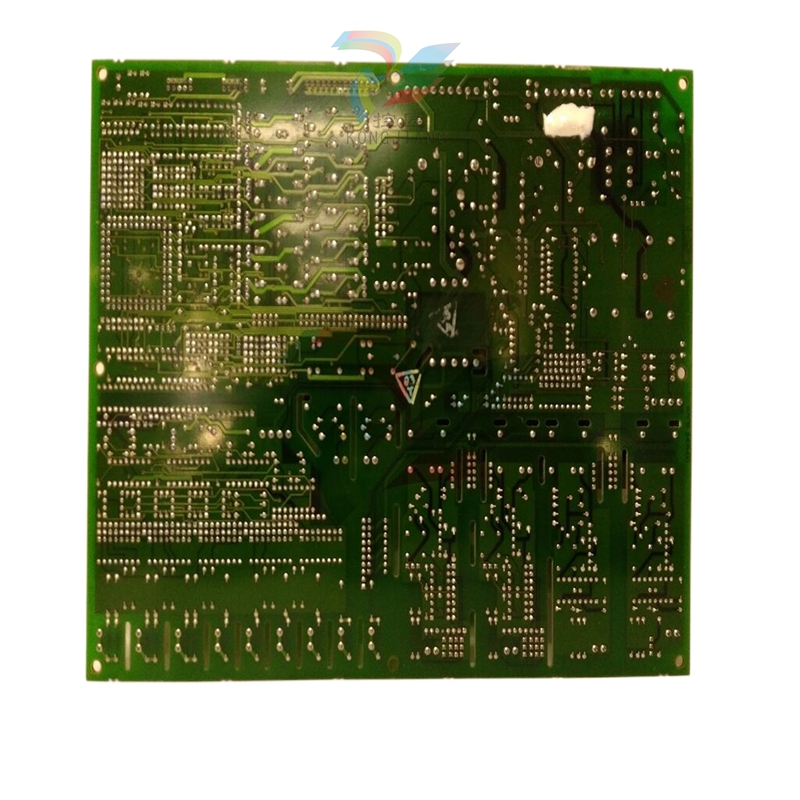

The DS200DCFBG1BKC power board is a member of the GE Mark V series of power boards designed for industrial control systems and power equipment to provide power to chassis fans as well as control level power for the system. It features high reliability, high efficiency, and multiple output channels to meet the needs of various complex industrial environments.
Main Features and Functions
High reliability:
The use of high-quality materials and advanced manufacturing processes ensures that the power supply board can still operate stably in harsh industrial environments.
Multiple protection fuses are integrated on the board, which can effectively prevent current interruption and protect the power supply board and connected equipment.
High Efficiency:
The power supply board has a high efficiency power conversion capability that minimises energy loss and improves overall system efficiency.
Multiple Output Channels:
Provides multiple output channels that can be used to connect and power other devices such as controllers, interface modules, sensors, etc.
Perfect protection function:
Equipped with various protection functions such as overload protection, short circuit protection, over-voltage protection, etc. to ensure the safe operation of equipment and system.
Compatibility:
Compatible with GE's control system and other devices, such as DC2000, AC2000, FC2000, CB2000 and ME2000 series drives, easy to integrate and upgrade.
Programmability:
The board is equipped with twelve jumpers and seven DIP switches that can be configured by the user to achieve programmability according to specific needs.
Remote Monitoring and Diagnostics:
Some models of DS200DCFBG1BKC power supply boards may support remote monitoring and diagnostic functions, which are convenient for O&M personnel to monitor the status of the equipment and perform troubleshooting.
Technical Specifications
Input Voltage: Can safely measure voltages between 38 and 115VAC.
Output Frequency: Can measure anywhere between 0 and 500kHz (depending on input voltage).
Circuit board structure: Contains control stage power supply circuit, driver circuit, motor excitation power supply circuit, and AC and DC monitoring circuits.
Indicators: Displays diagnostic information about the fuses on the drive through two LED indicators and a neon indicator.
Application Areas
DS200DCFBG1BKC power supply board is widely used in industrial automation control system, electric power equipment, communication equipment, medical equipment and other fields, providing stable power support for various electronic equipment.
Precautions
Installation and Configuration: Follow the manufacturer's installation and configuration guidelines to ensure proper installation and configuration of the power supply board.
Regular Inspection and Maintenance: Regularly inspect and maintain the power board, including cleaning and tightening the connectors, etc., to ensure its long-term stable operation.
Troubleshooting: In case of malfunction, please contact the manufacturer or professional maintenance personnel to deal with it in time, and avoid disassembling or repairing it by yourself to cause damage.
