GE DS200DCFBG1BNC Power Supply Board

GE DS200DCFBG1BNC Power Supply Board

Product Overview

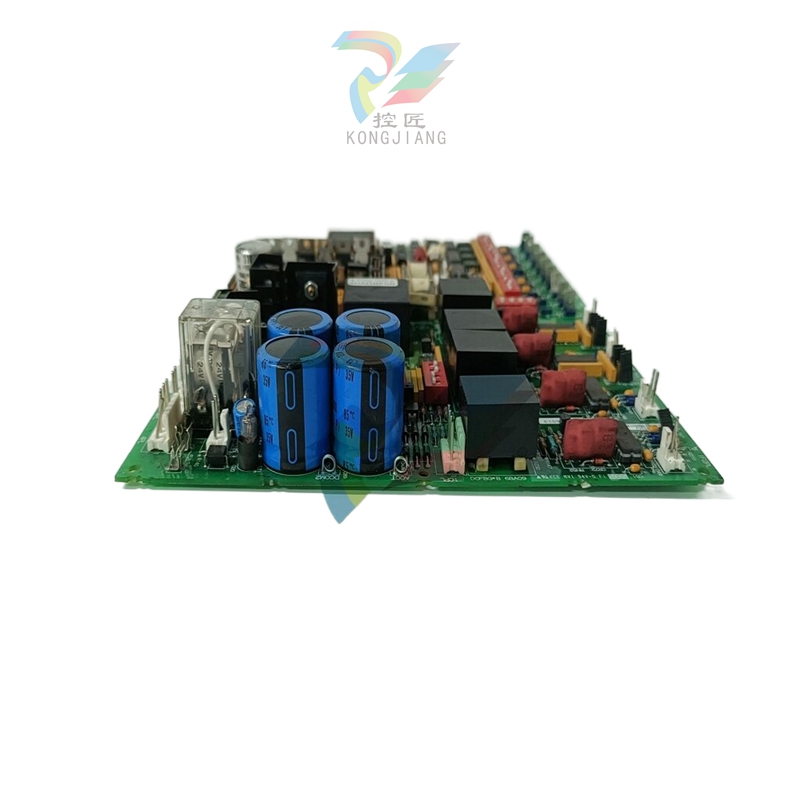

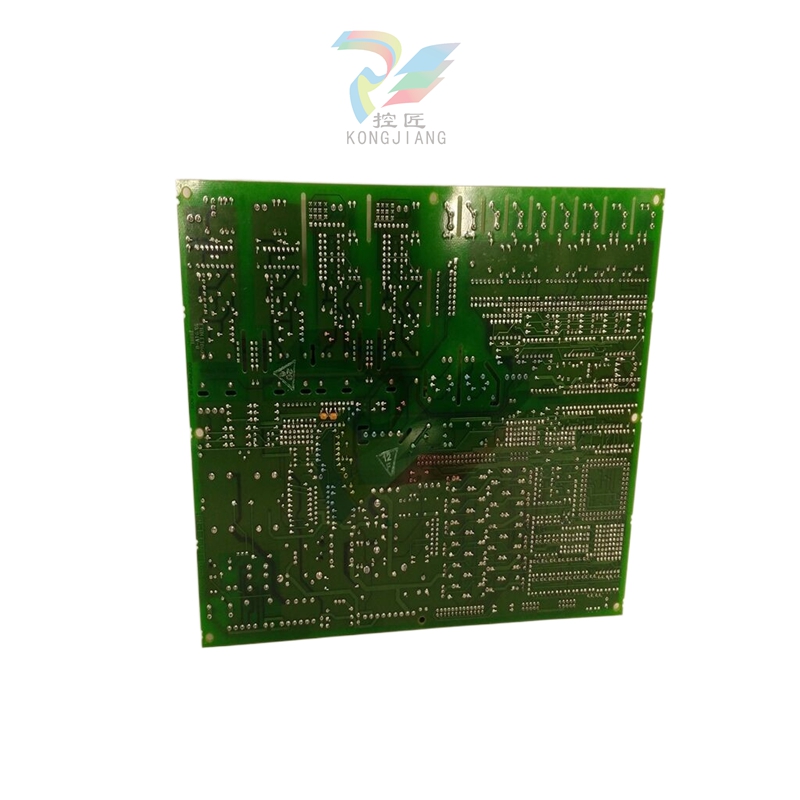

The DS200DCFBG1BNC power supply board is an important part of the GE Mark V control system series, designed for industrial automation and process control areas. It provides system control level power supply as well as chassis fan power supply to ensure the stable operation of the equipment.

Key Features

Wide range of compatibility:

The DS200DCFBG1BNC power supply board is compatible with several GE brands of exciters and drives, such as FC2000, AC2000, DC2000, ME2000 and CB2000 series drives.

Stable power output:

The power board is capable of feeding 38 to 115 volts, providing stable and reliable power to connected equipment.

Complex circuit system:

Contains five winding board circuits, including drive circuits, control level supply circuits, electric field power circuits, and AC and DC monitoring circuits.

Comprehensive protection features:

Equipped with fuses, integrated LEDs and neon indicators to provide real-time voltage monitoring and fault alerts to ensure safe circuit operation.

User Configurability:

User configurable with 12 jumpers and 7 dip switches to meet specific external requirements.

Modular Design:

Supports modular installation and configuration for easy system expansion and maintenance.

Application Areas

DS200DCFBG1BNC power board is widely used in industrial automation system, electric power system, power plant and other fields. In industrial automation systems, it is used as a key component to provide stable power supply for PLCs (programmable logic controllers), robots, sensors and other equipment. In power systems, it is used to monitor and control the operating status of generators to ensure the stability and safety of power supply.

Electric power plants: monitor and control generators, steam turbines, governors and other equipment to ensure the stable operation of the power generation system.

Power Transformer and Distribution: used in substations and distribution stations to monitor and control transformers, circuit breakers, voltage regulators and other equipment.

Power grid control: applied in monitoring, scheduling and control of power systems to ensure the stability and reliability of power networks.

Industrial process control: in manufacturing and chemical plants for automating and monitoring production processes.

Energy Management System: supports the monitoring, analysis and optimisation of energy systems to improve energy efficiency.

Power Generation Scheduling: Coordinates and optimises the operation of power generation plants to meet electricity demand.

Smart Grid: in smart grids to support the digitisation and intelligence of power grids.

Performance Parameters

Input voltage range: 38 to 115 volts

Output voltage: configured according to specific applications

Output current: according to the specific application configuration

Operating temperature range: -40°C to +70°C (design operating temperature)

Product Benefits

High performance: adopting high-performance microprocessor and advanced control algorithm, it can realise fast and accurate control and monitoring, and improve production efficiency and product quality.

Modular design: It is convenient for users to configure and expand, which improves the flexibility and maintainability of the system.

Easy Integration: Provide standard communication interface and protocol, which is convenient for users to integrate with other equipments and achieve seamless connection.

High reliability: Made of high-quality materials and advanced technology, it has high reliability and stability, and can operate stably under harsh working environment.

Easy to use: Provides simple interface and easy-to-operate software, which is convenient for users to install and use. At the same time, the module also has a self-diagnostic function, which can help users quickly locate faults and maintenance.

Good scalability: can be seamlessly integrated with other ABB modules and equipment, which is convenient for users to build a large-scale automation control system.
