DESCRIPTION

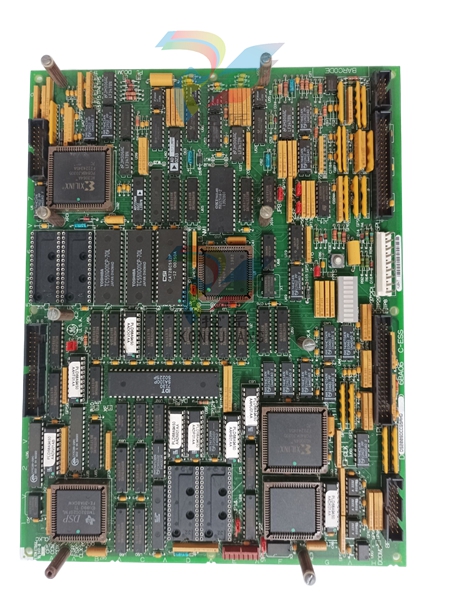

The IS200TDBTH6ABC is a Mark VI discrete simplex board component.  This type of PCB (printed circuit board) has been manufactured by General Electric for use within the company’s Mark VI Speedtronic series.  The Speedtronic control series were used for the management of steam, gas, and hydro turbines of various complexity and size.

Product Overview

Model: MRP768176 IS200TDBTH6ABC

Brand：GE（General Electric)

Series: Mark VI Speedtronic

Type: Discrete simplex board assembly

Functional Characteristics

Discrete Signal Processing:

This board assembly is capable of processing discrete signals, i.e., signals that can only take a finite number of values, such as switch status, relay contact status, etc. This processing is essential for logic judgement and status monitoring in control systems. This processing is essential for logic judgement and condition monitoring in control systems.

Simplex communication:

The component uses simplex communication, i.e. data can only be transmitted in one direction. This type of communication is suitable for specific control situations, such as unidirectional monitoring or control signal transmission.

High performance and stability:

The circuit board components are manufactured with high-performance electronic components and advanced production processes to ensure stable operation under high loads and harsh environments.

Easy maintenance and replacement:

Due to the discrete design, each component of the board assembly is relatively independent, making it easy to maintain and replace in the event of a malfunction.

Compatibility:

The board assembly is fully compatible with the Mark VI Speedtronic series control system and can be seamlessly integrated into the overall control system.

Hardware Specifications

Input voltage range: 12-48VDC

Output Voltage Range: 5VDC

Output Current: 10A maximum

Efficiency: greater than 90 per cent

Size: 170mm x 105mm x 32mm

Weight: approx. 120g

Operating temperature: -20°C to +50°C

Storage temperature: -40°C to +70°C

Ambient humidity: 5% to 95% relative humidity (no condensation)

CPU: 32-bit RISC processor

Application Areas

GE MRP768176 IS200TDBTH6ABC Mark VI discrete simplex board assemblies are widely used in areas requiring high precision and high performance control, including but not limited to:

Power systems: control systems used to manage steam, gas and water turbines of varying complexity and size.

Industrial Automation: In automated production lines and manufacturing processes, for monitoring and controlling various equipment and process parameters.

Aerospace: in the aerospace field, for control and monitoring systems of flying vehicles.

Installation and Maintenance

Installation Requirements:

When installing the circuit board assembly, make sure that all connectors and interfaces are properly connected and installed according to the installation guide provided by the manufacturer.

Attention should be paid to anti-static and anti-vibration during installation to ensure the stability and reliability of the circuit board assembly.

Maintenance Recommendations:

Periodically inspect and maintain the circuit board assembly, including cleaning the connectors and checking the integrity of the cables.

If any malfunction or abnormality is found, contact the manufacturer or professional maintenance personnel for repair or replacement.

 Precautions

Operator Training:

Operators should receive appropriate operation and maintenance training to understand the function, use and precautions of the circuit board assembly.

Safe Operating Procedures:

During installation, use and maintenance, all relevant safety operating procedures should be observed to ensure personal safety and equipment safety.
