Bentley Baker Hughes 2300 Series Vibration Monitors

F: | Au:FAN | DA:2025-09-15 | 941 Br: | 🔊 点击朗读正文 ❚❚ ▶ | Share:

Bentley Baker Hughes 2300 Series Vibration Monitors

Description

The 2300 Vibration Monitors provide cost-effective continuous vibration monitoring and protection capabilities for less critical and spared machinery. They are specifically designed to continuously monitor and protect essential medium to low criticality machinery in a wide range of industries including: oil & gas, power generation, water treatment, pulp and paper, manufacturing, mining, cement,and other industries.
The 2300 Vibration Monitors deliver vibration monitoring and high vibration level alarming. They include two channels of seismic or proximity measurement inputs from various accelerometer, Velomitor and Proximitor types, a speed input channel for time-synchronous measurements, and outputs for relay contacts. The 2300/20 monitor features a configurable 4-20 mA output which interfaces more points to a DCS. The 2300/25 monitor features System 1 Classic connectivity for Trendmaster SPA interface which enables users to leverage existing DSM SPA infrastructure.

The 2300 Vibration Monitors are designed for using on a broad range of machine trains or individual casings where the sensor point count fits the monitor’s channel count and where advanced signal processing is desired.

‍

Monitor Key Features

2300/20
l Two 4-20 mA outputs with internal current loop power supply.
l Continuous monitoring and protection
l Two acceleration/velocity/proximity inputs with synchronized sampling for advanced diagnostics.
l One dedicated speed channel supporting Proximity probes, Magnetic pickup and Proximity switch type sensors.
l Supports process variable on all three input channels.
l Key measurements (Acceleration pk, Acceleration rms, Velocity pk, Velocity rms, Displacement pp, Displacement rms, Speed) real-time provided with alarm
configuration.
l Each channel has one measurement group, and can add additional two bandpass measurements and several nX measurements (depends on the device
availability).
l LCD and LED for real time value and status display.
l Ethernet 10/100 Base-T communication for configuration using Bently Nevada Monitor Configuration software (Included) with RSA encryption.
l Local contacts for positive engagement of monitor bypass, configuration lockout,and latched alarm/relay reset.
l Two relay outputs with programmable setpoints.
l Three buffered transducer outputs (including Keyphasor signal) providing short circuit and EMI protection. Buffered outputs for each signal are through BNC connectors.
l Modbus over Ethernet.
l Alarm Data Capture


2300/25

l Trendmaster SPA interface.
l Continuous monitoring and protection.
l Two Acceleration/Velocity/Proximity inputs with synchronized sampling for advanced diagnostics.
l One dedicated speed channel supporting Proximity probes, Magnetic pickup and Proixmity switch type sensor.
l Support process variable on all three input channels.
l Key measurements (Acceleration pk, Acceleration rms, Velocity pk, Velocity rms, Displacement pp, Displacement rms, Speed) real-time provided with alarm
configuration.
l Each channel has one measurement group, and can add additional two bandpass measurements and several nX measurements (depends on the device availability).
l LCD and LED for real time value and status display.
l Ethernet 10/100 Base-T communication for configuration using Bently Nevada Monitor Configuration software (included) with RSA encryption.
l ocal contacts for positive engagement of monitor bypass, configuration lockout,and latched alarm/relay reset.
l Two relay outputs with programmable setpoints.
l Three buffered transducer outputs (including Keyphasor signal) providing short circuit and EMI protection. Buffered outputs for each signal are through BNC connectors.
l Modbus over Ethernet.
l Alarm Data Capture

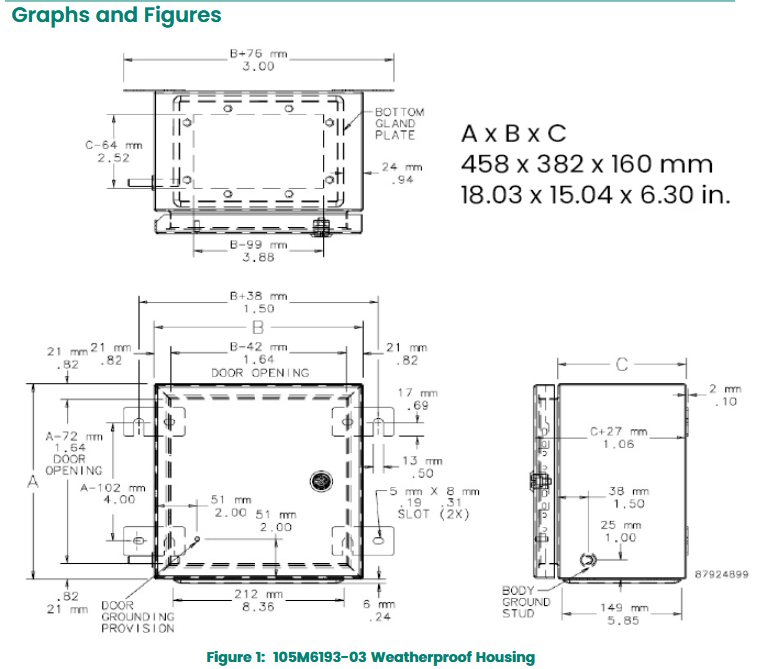

Technical specifications and performance parameters

（1） Core parameters for vibration monitoring

Specific specifications for parameter categories

Measurement range velocity: 0-20 mm/s (RMS, RMS); Displacement: 0-200 μ m (peak to peak, PP）； Axial position (Thrust): 0-500 μ m (peak to peak) supports users to customize the range according to device types (such as low-speed motors, high-speed turbines), meeting the vibration characteristics requirements of different devices

Frequency response 5-1000 Hz (standard range); Optional 1-1000 Hz (low-frequency extension) covers the vibration frequency range of the vast majority of industrial rotating equipment (such as motor frequency vibration, bearing fault high-frequency vibration), ensuring the integrity of monitoring data

Accuracy level ± 2% of full scale (at 25 ℃ ambient temperature); ± 3% full range (0-60 ℃ working temperature range) high measurement accuracy ensures the accuracy of abnormal vibration identification, avoiding false alarms or missed alarms

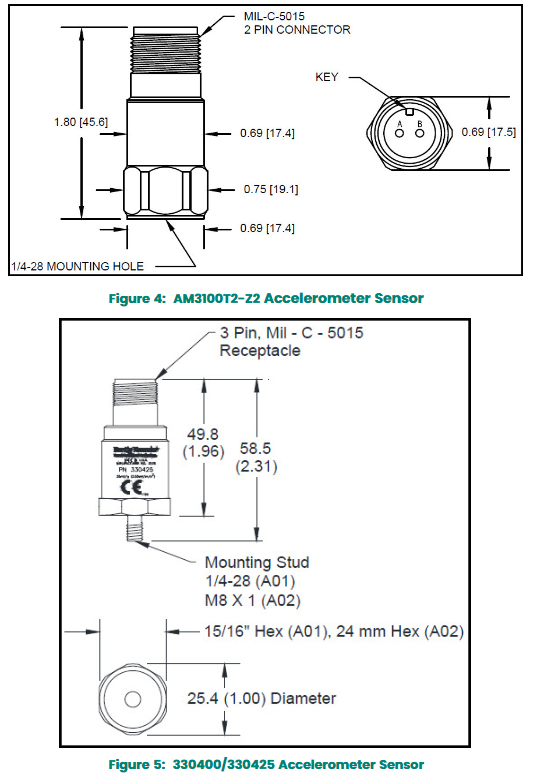

Input signal type compatible with ICP ®  Type accelerometer (with built-in charge amplifier, requiring 24V DC excitation); Or piezoelectric acceleration sensors (requiring external charge amplifiers) support mainstream industrial vibration sensors, reducing the compatibility cost of upgrading or replacing user devices
