Schneider Electric EcoStruxure Foxboro ™ DCS Thin Client（PSS 41H-4THNCLNT）

Additional RDS CAL License: If you need more remote connections, you need to purchase a Remote Desktop Services (RDS) client access license (formerly Terminal Services CAL), which supports both "per user" and "per device" authorization modes and can be purchased on the BuyAutomation platform. The specific models and specifications are shown in the table below:

Product Number (P/N) CAL Type Quantity

J0202AW RDS 2016 Device License 5

J0202AV RDS 2016 User License 5

J0202EC RDS 2022 Device License 5

J0202EB RDS 2022 User License 5

J0202EF RDS 2022 Device License 1

J0202EG RDS 2022 User License 1

License rules: The "per device" license must be assigned to one device (thin client, computer, portable device) accessing the remote desktop session, and the license cannot be reused after binding the device; The 'per user' license needs to be assigned to one user for each access session, regardless of the device used by the user; All RDS CALs must be installed and activated on a licensed server (usually an RDS server), and Foxboro DCS servers do not come with any RDS CALs at the factory.

Hardware and Technical Specifications

1. Hardware structure and interface (HP t755)

Location interface/component function description

Front A: Power (with indicator light) Power switch and status indicator

B: 3.5mm combination headphones/audio interface for connecting headphones or audio devices

C/D: USB-A 3.2 Gen 1 port for connecting external USB devices (such as mice, printers, etc.)

E: USB 3.2 Gen 2 Type C port high-speed USB connection, supports external devices

F: Information label and VESA 100 installation hole panel for viewing device information, supporting VESA 100 standard installation

G: The system bracket supports vertical or horizontal placement

Back H: Display Port 1.2 interface (4) for connecting LCD displays, up to 4 units

I: RJ-45 Gigabit Ethernet interface network connection interface

J: 19VDC power input connected to DC power supply

K: Disassemble the latch of the rear I/O panel and remove the operating components of the rear I/O panel

L: USB-A 2.0 ports (2) for connecting low-speed USB devices

M: USB-A 3.2 Gen 1 ports (2) for connecting high-speed USB devices

N: Blank interface reserved or unused interface

O: Intel network card for network communication, dual network card configuration for redundancy

Core hardware parameters: AMD ®  Ryzen ™  V2546B processor (3GHz reference frequency, up to 3.95GHz acceleration frequency, 2MB cache, 6 cores), 32GB DDR4-3200 SDRAM (maximum transfer rate of 3200MT/s), 256GB flash memory; Integrate one Gigabit Ethernet port and add one plug-in Gigabit Ethernet port, with dual network cards supporting network redundancy.

2. Functional specifications

Category detailed parameters

Operating System Windows 10 IoT Enterprise LTSC 2021

External devices support mouse/trackball (optional), QWERTY keyboard, alarm keyboard, external speakers, touch screen, USB printer (optional)

Built in diagnostics automatically perform self check upon startup

Display performance: 4 DisplayPort 1.2 video ports, maximum refresh rate of 60Hz, over 65000 colors (limited by software), widescreen (16:9) resolution up to 1920 × 1080 pixels (suitable for CCS and CS displays)

One integrated Gigabit Ethernet port and one plug-in Gigabit Ethernet port for network interface; The DCS ACN interface protocol is TCP/IP

The power supply requires an input voltage of 100-240VAC (automatic switching), a frequency of 50-60Hz, and a maximum power consumption of 90W (actual power consumption is affected by software load, peripherals, and environment)

3. Environmental and physical specifications

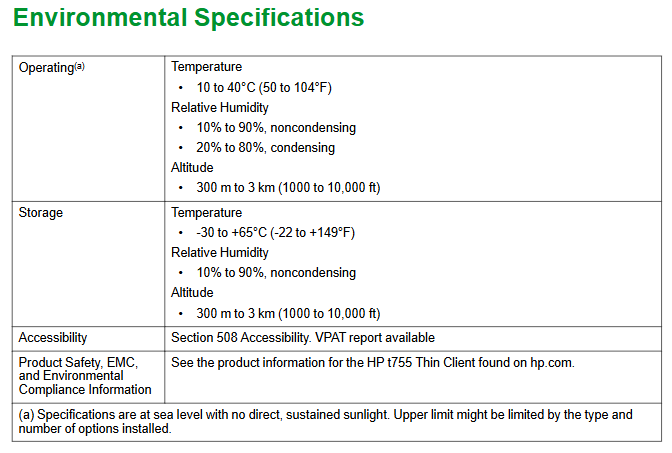

Environmental adaptability:

Scene temperature range, humidity range, altitude range

Run at 10-40 ° C (50-104 ° F) with 10% -90% (no condensation) and 20% -80% (condensation) for 300m-3km (1000-10000ft)

Storage -30-65 ° C (-22-149 ° F) 10% -90% (non condensing) 300m-3km (1000-10000ft)

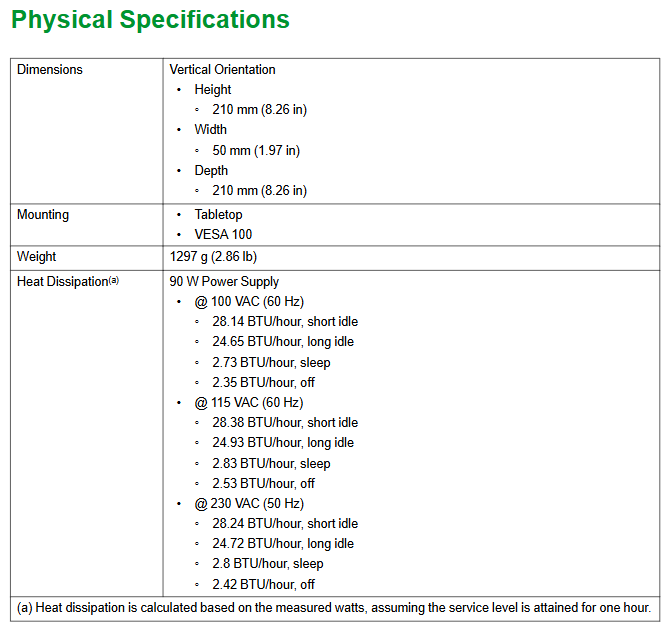

Physical parameters:

Dimensions (vertical placement): Height 210mm (8.26 inches), Width 50mm (1.97 inches), Depth 210mm (8.26 inches);

Installation method: desktop placement, VESA 100 standard installation;

Weight: 1297g (2.86 pounds);

Heat dissipation: Under a 90W power supply, the heat dissipation varies under different operating conditions (such as 28.14 BTU/hour in short idle state and 2.73 BTU/hour in sleep state at 100VAC 60Hz).

Compliance: Complies with Section 508 accessibility standards (VPAT report available); For product safety, EMC, and environmental compliance information, please refer to the t755 thin client product information on the HP official website.
