How to install ABB ACS880-01-025A-3 frequency converter?

ABB ACS880-01-025A-3 frequency converter

Basic product information

（1） Core identification and specifications

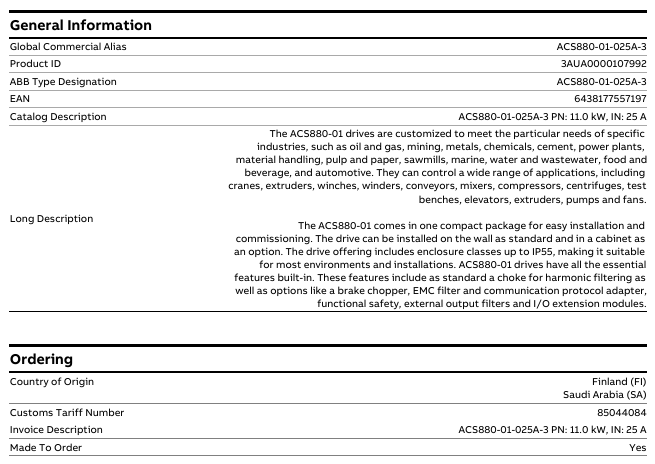

Core parameters: rated power 11.0kW, input current 25A, product model ACS880-01-025A-3, product ID 3AUA0000107992, EAN code 6438177557197.

Production and ordering: The country of origin is Finland (FI) and Saudi Arabia (SA), with customs tariff code 85044084, and it belongs to customized production (Made To Order); The minimum order quantity is 1 piece, the order multiple is 1 piece, and the sales measurement unit is "piece", not just the quoted product.

Packaging and dimensions: The net weight of the product is 8.4kg, and the net dimensions (depth/length x height x width) are 249mm x 409mm x 155mm; the first level packaging dimensions (depth/length x height x width) are 574mm x 304mm x 256mm, with one piece per box and a total volume of 15.785dm ³.

Application and installation features

（1） Applicable scenarios

Industry adaptation: customized for industries such as oil and gas, mining, metallurgy, chemical, cement, power plants, material handling, pulp and paper, sawmills, ships, water supply and drainage, food and beverage, automobiles, etc.

Load type: can control various equipment such as cranes, extruders, winches, coilers, conveyors, mixers, compressors, centrifuges, test benches, elevators, pumps, fans, etc.

（2） Installation and Protection

Installation method: The standard is wall mounted installation, and installation inside the cabinet is optional.

Protection level: The shell protection level is IP21, and the NEMA protection type is Type 1, suitable for most industrial environments; The maximum working environment temperature is 40 ℃, the sound pressure level is 59dB (A), and the operating noise is relatively low.

Key technical parameters

（1） Electrical input and output

Category parameter details

Input parameters: 3-phase power supply, frequency 50/60Hz, input voltage 380-415V

The output current (under different operating conditions) is typically 25A, 24A for light overload, and 17A for heavy load

The output power for both regular and light overload use is 11kW, with an apparent output power of 17kV · A

Efficiency related efficiency level IE2, standby loss 23W; efficiency varies under different operating conditions (such as 95.6% efficiency at 50Hz/100% current)

（2） Communication and Interface

Communication Protocol: Supports MODBUS、DeviceNet、PROFIBUS、PROFIsafe、CAN、EtherNet/IP、PROFINET IO、TCP/IP  And other bus systems.

Hardware interface: including 1 RS-485 interface, 1 USB interface, and 6 other interfaces; No industrial Ethernet PROFINET、RS-232、RS-422、 Parallel interface.

Signal ports: 2 analog inputs, 2 analog outputs, 6 digital inputs/5 digital outputs; With control unit, no optical interface, supports PC connection.

（3） Efficiency details (compliant with IEC 61800-9-2 standard)

Operating conditions (frequency/current) absolute loss relative loss efficiency

0Hz / 25% 126W 0.7% 87.9%

0Hz / 50% 168W 1.0% 91.3%

0Hz / 100% 301W 1.7% 92.2%

50Hz / 25% 135W 0.8% 93.4%

50Hz / 50% 185W 1.1% 95.2%

50Hz / 100% 342W 2.0% 95.6%

90Hz / 50% 203W 1.2% 97.0%

90Hz / 100% 412W 2.4% 97.0%

Classification and Environmental Information

（1） Product classification

Series affiliation: ACS880 series, product type is low-voltage AC frequency converter, specifically classified as "frequency converter → low-voltage AC frequency converter → industrial frequency converter → ACS880 single machine frequency converter → ACS880-01 wall mounted single machine frequency converter".

Standard classification: ETIM 7 is classified as EC001857 (≤ 1kV frequency converter), UNSPSC is classified as 39122001.

（2） Environmental compliance

WEEE category: 5 categories (small equipment, with external dimensions not exceeding 50cm).

SCIP code: Finland (FI) code 090be974-b30f-4eaa-b924-275d6a7f6686; Belgium (BE), the Netherlands (NL), Denmark (DK), Spain (ES), Portugal (PT), Estonia (EE) and other countries each have their own simplified SCIP codes.
