ABB 3BSE018144R1 CI857K01 INSUM Ethernet Interface

ABB 3BSE018144R1 CI857K01 INSUM Ethernet Interface

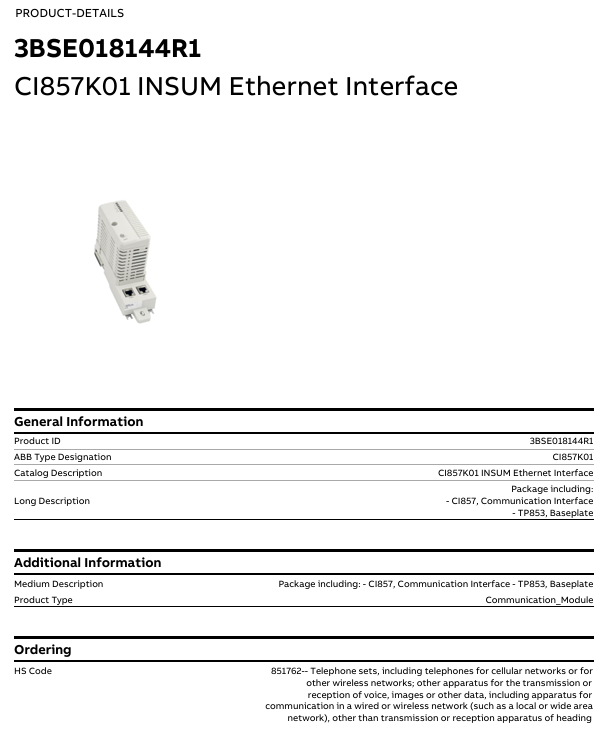

Basic information

product identification

Product ID: 3BSE018144R1

ABB model name: CI857K01, belonging to INSUM Ethernet interface.

Packaging content: Includes CI857 communication interface and TP853 base.

Product type: Communication-Module.

Customs related: Customs tariff code 85176200 belongs to the category of "other devices used for transmitting or receiving voice, image, or other data, including devices used for wired or wireless network communication".

Physical specifications

Product net length/depth: 127.5 mm

Product net height: 186 mm

Product net width: 59 mm

Net weight of product: 0.7 kg

Environmental Protection and Classification Information

RoHS status: Compliant with EU Directive 2011/65/EU.

WEEE category: Category 5 (small equipment with no external dimensions exceeding 50 centimeters).

Other: Excluding batteries, SCIP number 5b26e2ec-a559-4bb5-9de6-577956347f5b, associated country is Sweden (SE).

Product ownership

This product belongs to multiple control system product categories, mainly involving the AC 800M series and 800xA system, including the AC 800M communication module, communication modules for multiple hardware and software versions under the 800xA system, and communication modules for various versions of AC 800M in the Compact Product Suite.

Precautions

Installation and Physical Operations

Size adaptation: The net size of the product is 127.5mm in length, 59mm in width, and 186mm in height. During installation, it is necessary to ensure that sufficient space is reserved inside the control cabinet to avoid physical interference with other devices, and to ensure that there is a certain heat dissipation gap around to prevent poor heat dissipation due to limited space.

Weight considerations: The net weight of the product is 0.7kg. During installation, an appropriate fixed structure (such as the matching TP853 base) should be used to ensure a secure installation and prevent vibration or accidental contact from causing the module to loosen or fall off, which may affect communication stability.

Base installation: When installing the TP853 base, it is necessary to check the flatness of the installation surface to avoid the base tilting and causing poor contact between the module and the base, which may lead to electrical connection failures.

Electrical Connection and Compatibility

Interface matching: As an INSUM Ethernet interface, it is necessary to ensure that the specifications of the Ethernet line connected are consistent with the module interface requirements during connection, in order to avoid communication speed drop or connection interruption caused by line mismatch.

System compatibility: This module is mainly compatible with the AC 800M series (versions 4.1, 5.0, 5.1, 6.0, etc.) and the 800xA system (versions 6.0 and related hardware/software). Before use, it is necessary to confirm whether the version of the control system is within the compatibility range to avoid inability to communicate normally or limited functionality due to version mismatch.

Environmental Protection and Compliance

RoHS compliance: The product complies with the EU Directive 2011/65/EU (RoHS standard), but during disposal, it still needs to be classified and recycled according to local environmental regulations, and cannot be discarded at will.

WEEE treatment: Belonging to WEEE Class 5 (small equipment), it should be disposed of by qualified professional institutions to ensure compliance with relevant regulations on electronic waste recycling and minimize its impact on the environment.

Usage and maintenance

Static electricity protection: When installing, disassembling, or maintaining modules, operators should wear anti-static wristbands to avoid static electricity penetrating sensitive electronic components inside and causing module damage.

Environmental protection: Avoid using in environments with excessive dust, humidity, corrosive gases, or severe vibrations. If the working environment is poor, additional protective measures should be taken (such as installing protective enclosures and regular cleaning) to extend the service life of the module.

Information verification: Product information may change without prior notice. When performing system upgrades, spare parts replacements, or troubleshooting, it is recommended to consult ABB's official latest documents or contact suppliers to confirm relevant parameters and compatibility information to ensure operational accuracy.

Transportation and Storage

Transportation protection: During transportation, original packaging or packaging materials with cushioning properties should be used to prevent the module from being impacted, squeezed, or dropped, and to avoid physical damage.

Storage conditions: When storing, it should be placed in a dry, ventilated, and suitable temperature environment (generally recommended -20 ℃~60 ℃), away from strong magnetic fields and heat sources, and avoid prolonged exposure to sunlight to prevent component aging.
