Basic information

product identification

Product ID: 3BSE018135R1

ABB model name: CI858K01, belonging to the DriveBus interface.

Packaging content: Includes CI858 communication interface and TP858 base.

Product type: Communication-Module.

Customs related: Customs tariff code 85176200, classified as "other devices used for transmitting or receiving voice, image, or other data, including devices used for wired or wireless network communication".

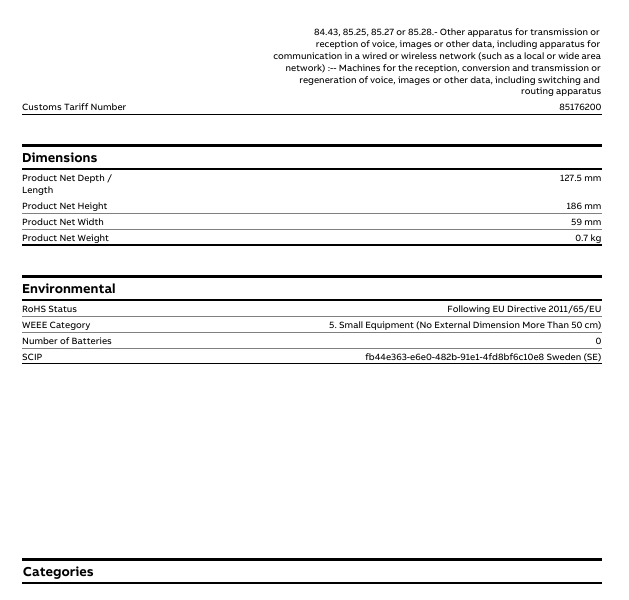

Physical specifications

Product net length/depth 127.5 mm

Product net height 186 mm

Product net width 59 mm

Product net weight 0.7 kg

Environmental Protection and Classification Information

RoHS status: Compliant with EU Directive 2011/65/EU.

WEEE category: Category 5 (small equipment with no external dimensions exceeding 50 centimeters).

Other: Excluding batteries, SCIP number fb44e363-e6e0-482b-91e1-4fd8ff6c10e8, associated country is Sweden (SE).

Product ownership

This product belongs to multiple control system product categories, mainly suitable for AC 800M series and 800xA system, including:

AC 800M - CI858 DriveBus Interface Interface under Communication Module

Communication module for AC 800M control software (version 4.0) and hardware (versions 4.0, 4.1, 5.0, 5.1) in the 800xA system

Communication module of 800xA 6.0 system

Communication module for AC 800M (versions 4.1, 5.0, 5.1, 6.0) in Compact Product Suite
