UniOP CP02 series high-end compact HMI

9.4 Electromagnetic compatibility

The CP02 series design complies with industrial environmental electromagnetic compatibility standards:

Emission interference: EN 61000-6-4, 2001

Immunity: EN 61000-6-2, 2001

Physical dimensions and installation

10.1 External dimensions

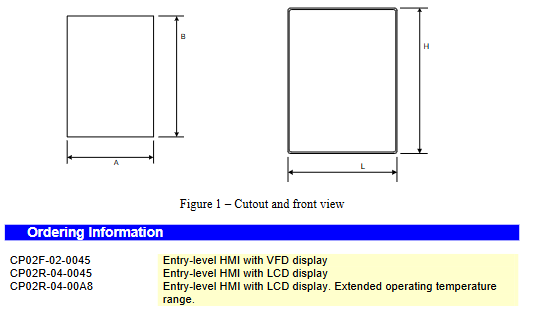

Front panel dimensions: width 138 mm x height 186 mm (5.43 x 7.32 inches)

Installation hole size: width 117 mm x height 176 mm (4.61 x 6.50 inches)

Installation depth: 74 mm (2.92 inches)

Maximum panel thickness: 5 mm (0.2 inches)

Weight: 1.1 Kg

10.2 Installation method

The CP02 series adopts a standard panel installation method and is suitable for various control cabinets and workstations. The installation steps include:

Process rectangular openings on the control cabinet panel according to the opening size

Check that the panel thickness does not exceed the 5mm limit

Insert the HMI into the opening from the front

Install the fixed buckle from the rear and tighten it in place

Connect the power cord and communication cable

Attachments and extensions

11.1 Functional modules

Through auxiliary ports, the CP02 series can install various TCM/SCM series functional modules, including:

Profibus DP module: serves as a DP slave to connect to the Profibus network

CANopen module: supports CANopen protocol and connects to CAN network

DeviceNet module: acting as a DeviceNet slave device

Interbus module: supports Interbus fieldbus

Ethernet module: provides 10/100M Ethernet interface

11.2 Backup Battery

Model: CR2430 Lithium Manganese Battery, 3V, 270mAh

Replacement requirement: It is necessary to use batteries of the same model or equivalent specifications that are compatible with the working temperature of the product

Replacement cycle: Typically 2-5 years depending on the usage environment

11.3 Label Bar Attachment

Laser printable blank label strip for function key identification

Standard size, convenient for on-site production and replacement

Application Fields

The CP02 series compact HMI is widely used in the following industrial fields:

12.1 Mechanical Equipment Control

Packaging Machinery: Provides interfaces for parameter settings, production counting, and fault diagnosis

Plastic machinery: temperature control and pressure monitoring of injection molding machines and extruders

Machine tool: CNC machine tool operation panel, tool management, program selection

Textile machinery: process parameter setting, operation status monitoring

12.2 Process Automation

Water treatment: pump station control, water quality monitoring, alarm management

HVAC: temperature control, fan monitoring, energy consumption display

Food processing: formula management, batch control, cleaning procedures

12.3 Building Automation

Lighting control: scene control, timing setting, energy consumption monitoring

Elevator monitoring: floor display, fault alarm, maintenance prompt

Access control system: access control, event recording

12.4 Mobile and In Vehicle Applications

Construction machinery: operation terminals for cranes and excavators

Agricultural machinery: parameter display and control of harvesters and tractors

Special vehicles: equipment control for fire trucks and ambulances
