Product Overview

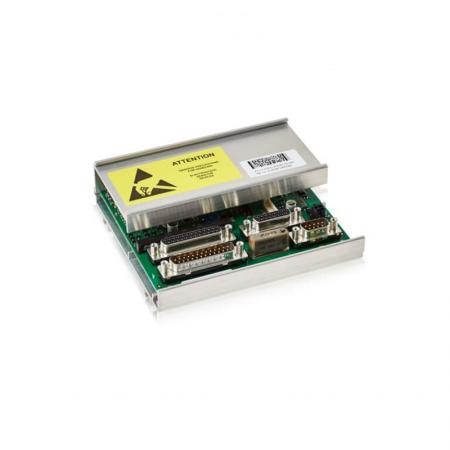

ABB 3HAC022286-001 Serial Measurement Unit DSQC 633 is a high-precision measurement device designed specifically for the industrial automation field, especially for robot control systems. It achieves real-time monitoring and feedback of robot motion status through precise collection and processing of sensor data, effectively improving the accuracy, stability, and safety of robot operation. It is widely used in automated production lines and complex industrial operation scenarios that require high precision.

Core functions

Multi type data collection: can connect multiple sensors, such as encoders, tilt sensors, etc., to collect data on robot joint angles, positions, velocities, etc., providing comprehensive information for robot motion control.

High precision data processing: Equipped with advanced algorithms, the collected data is filtered, calibrated, and analyzed to ensure the accuracy and reliability of the output data, meeting the requirements of high-precision operations.

Real time data transmission: The measurement data is transmitted to the robot controller in a stable and fast manner through a serial communication interface, achieving real-time data interaction and ensuring the dynamic response capability of the robot.

Fault diagnosis and warning: It has self diagnostic function, monitors its own working status in real time, and can issue warning signals in a timely manner when abnormalities occur, which facilitates maintenance personnel to quickly locate and solve problems, reducing downtime.

Working principle

DSQC 633 is connected to various sensors through a serial communication interface. The sensors convert the physical motion parameters of the robot (such as angle and displacement) into electrical signals and transmit them to the measurement unit. The signal conditioning circuit inside the measurement unit amplifies, filters, and preprocesses the original signal to eliminate interference and noise; Next, the analog-to-digital converter converts the analog signal into a digital signal, which is then analyzed and calculated by a microprocessor using specific algorithms to obtain accurate measurement results. Finally, the measurement unit transmits the processed data in real-time to the robot controller according to the established communication protocol. The controller adjusts the robot's motion trajectory and posture based on this data to achieve precise control.

Key advantages

High precision measurement: With extremely small measurement errors, it can meet the precision requirements of applications such as precision manufacturing, ensuring the quality of product processing.

High reliability: Using high-quality components and mature designs, it has excellent anti-interference ability, adapts to complex industrial environments, and reduces failure rates.

Flexible adaptation: Supports multiple sensors and communication protocols, compatible with different models of robots and control systems, facilitating system integration and upgrading.

Easy to maintain: Modular design and intuitive fault diagnosis function enable maintenance personnel to quickly identify and replace faulty components, reducing maintenance difficulty and costs.

Precautions

Installation environment: It should be installed in a dry, well ventilated and non corrosive gas environment, avoiding high temperature, high humidity and strong electromagnetic interference, to prevent affecting measurement accuracy and equipment life.

Wiring specifications: Strictly follow the instructions for wiring to ensure a secure connection and avoid equipment damage or abnormal data transmission caused by wiring errors.

Regular calibration: To ensure measurement accuracy, the measuring unit needs to be calibrated regularly, and the calibration cycle can be determined according to the actual frequency of use and environment.

Power off operation: When installing, disassembling, or maintaining equipment, be sure to cut off the power supply to prevent electric shock and equipment damage.

Similar model supplement

DSQC 634: Similar in functionality to DSQC 633, but with upgraded communication interface types and data processing capabilities, suitable for large automated production lines with higher requirements for data transmission speed and compatibility.

DSQC 632: focuses on basic measurement functions, with relatively low prices, suitable for small and medium-sized enterprises or simple automation application scenarios that are cost sensitive and do not require extremely high measurement accuracy.
