How to install and operate KBAC series adjustable frequency drive?

Optional accessories

We offer a variety of optional accessories, including forward and reverse switch kits, AC line on/off switch kits, run stop jog switch kits, SIAC-PS signal isolator kits (available in 3G and 2G models), automatic/manual switch kits, SIAC-PS signal isolator and automatic/manual switch combination kits, AC line filter kits (available with "S" and "NS" suffixes, some models pre installed at the factory), liquid tight joint kits, etc. Different accessories are suitable for different models of drivers, and some accessories require specific installation methods to ensure liquid tightness or achieve corresponding functions.

Main product models

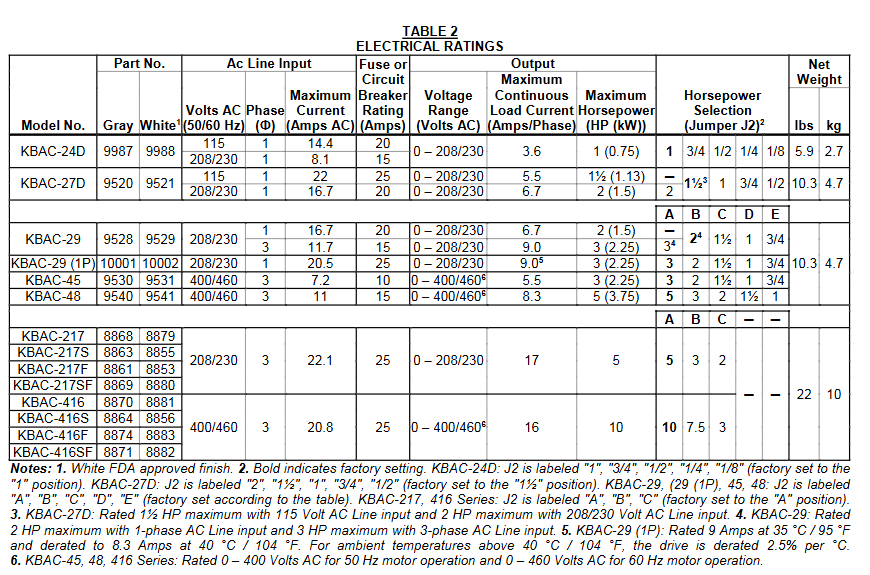

Basic model: KBAC-24D、KBAC-27D、KBAC-29、KBAC-29 (1P)、KBAC-45、KBAC-48、KBAC-217、KBAC-217S、KBAC-217F、KBAC-217SF、KBAC-416、KBAC-416S、KBAC-416F、KBAC-416SF， These models cover both 2G and 3G categories, among which the KBAC-217 series (including KBAC-217, 217S, 217F, 217SF) and the KBAC-416 series (including KBAC-416, 416S, 416F, 416SF) are both 3G models, KBAC-24D、27D、29、29 (1P)、 The 3G models of 45 and 48 will be labeled with "(3G)" on the product label.

Model classification basis:

Voltage adaptation: KBAC-24D, 27D, 29, 29 (1P), 217 series are compatible with 208/230V voltage, KBAC-45、 The 48 and 416 series are compatible with 400/460V voltage.

According to input phase: KBAC-24D, 27D, 29 (1P) only support single-phase input, while KBAC-29 can support single-phase or three-phase input, KBAC-45、 The 48, 217, and 416 series only support three-phase input.
