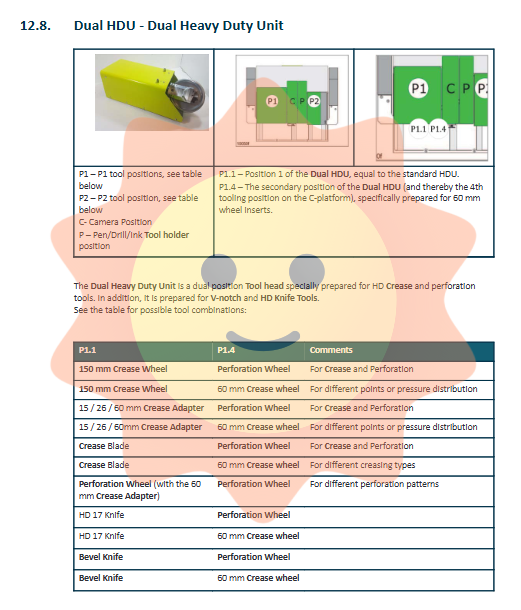

KONGSBERG C-series precision cutting system: versatile digital cutting solution

Expected accuracy: Within ± 2mm for most assignments, at least 2mm of bleeding should be reserved.

The cutting position can be fine tuned through XY offset adjustment.

Roll material feeding and receiving

MRF electric coil rack: automatic feeding with edge control.

TakeUp Unit: Automatic winding of finished products, equipped with tension controlled swing rollers.

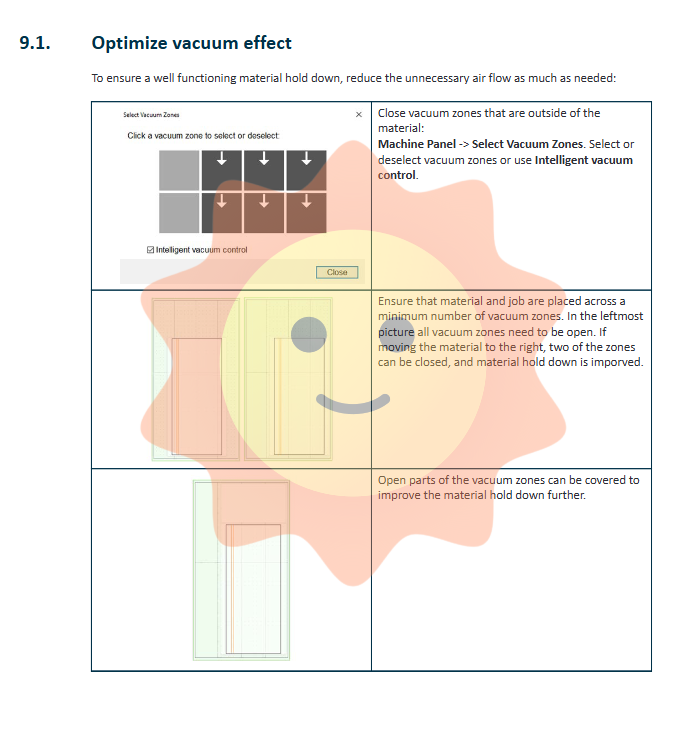

Chapter 9: Maintenance and upkeep

daily

Clean the countertop and interior of the vacuum hood.

Check if the vacuum suction cup is blocked or damaged.

Check the air source pressure and the automatic drainage function of the filter.

weekly

Clean the guide rail and lightly apply Tellus R10 oil.

Clean the surface of the photoelectric sensor.

monthly

Lubricate the gears and racks (X1, X2, Y-axis).

Check the tension and deviation of the conveyor belt.

Clean the vacuum hole (non conveyor belt models).

Bottom camera maintenance

Check the image quality daily.

Clean the lens with a microfiber duster every time the machine stops.

Check if the anti roll board black tape is intact.

Fuse replacement

The main fuse inside the MPU is a circuit breaker type, which can be reset after tripping.

The amplifier fuse (X1/X2/Y) is 5x20mm T10A.

The tool fuse is located inside the tool board, NANO type, with different tool specifications (2A, 4A, etc.).

The specifications of the chiller fuse vary depending on the voltage.

Chapter 10: Common Troubleshooting

The machine does not start

Check the power supply, air pressure, MPU main fuse, emergency stop button, and control panel connections.

The security system cannot be reset

Check if the photoelectric sensor is aligned and if the red indicator light is on.

Power on servo/fuse error

Possible amplifier board malfunction, please contact technical support.

Air shortage alarm

Check the air source pressure and whether the hose is bent and leaking.

Difficult to remove waste after cutting

The depth of the cutting tool is insufficient and needs to be increased.

Corner cutting not disconnected

Improper tool lag setting.

Cutting edge tearing

The rotation angle of the tool needs to be adjusted.

Line offset

The center offset needs to be corrected.

Milling and cutting through the pad

The loose clamp caused the tool to sink and needs to be re tightened.

Multiple tools operating simultaneously

Check the compressed air pressure and tool head air circuit connection.
