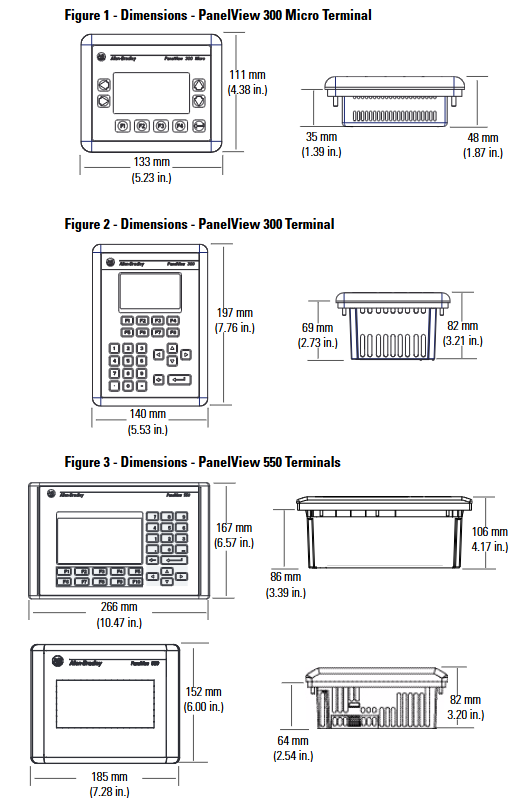

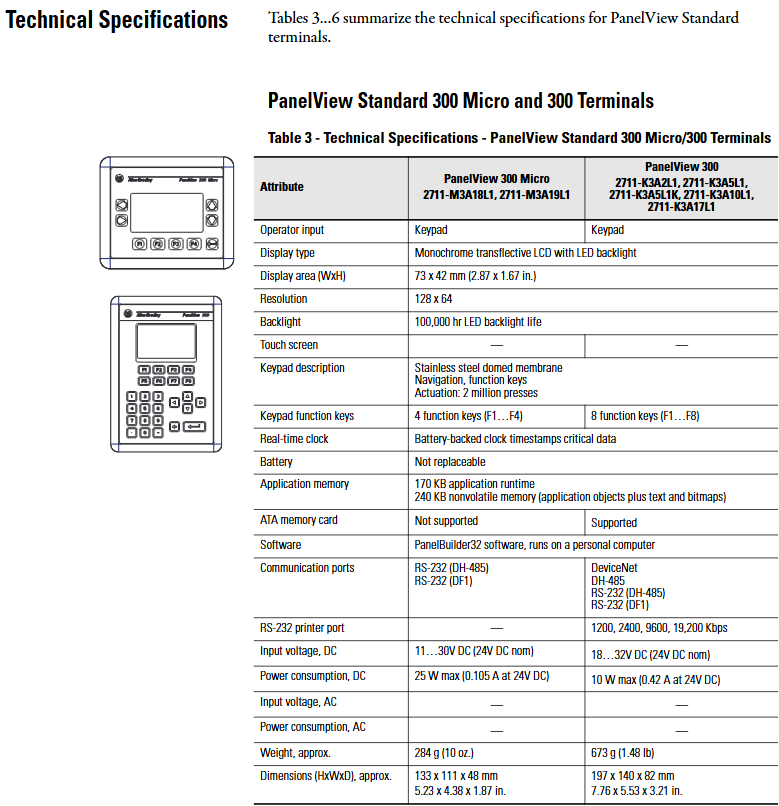

Rockwell Automation PanelView Standard Series Terminal (Model 2711)

4. Model 1000 (2711-K10G/T10C series)

Input methods: keyboard version (16 function keys, lifespan of 1 million times), touch version (384 touch units, lifespan of 1 million times), keyboard+touch version

Display specifications: grayscale version (black and white monochrome), color version (active matrix TFT), resolution of 640 × 480, display area of 211 × 158mm (8.3 × 6.2 inches), replaceable backlight (half-life of 50000 hours at 25 ° C)

Communication port: Same as 550/600 model, supports full protocol and printer port

Power supply: DC 18-32V (rated 24V, 24W max) or AC 85-264V (55VA max)

Storage: 1008KB non-volatile memory (including application/text/bitmap), 310KB application running memory, supporting ATA cards; Clock with replaceable battery

Size and weight: Keyboard version 282 × 423 × 112mm (11.11 × 16.64 × 4.40 inches), weighing 3.7kg (8.2 pounds); Touchscreen version 282 × 370 × 112mm (11.11 × 14.58 × 4.40 inches), weighing 3.6kg (7.9 pounds)

Certification qualifications

The entire series of terminals have passed multiple international certifications to ensure compliance and security. The key certifications are as follows:

Electromagnetic compatibility: EN50081-2:1993 (industrial A-level radiation), EN61000-6-2:1999 (industrial immunity), EN50082-212:1995 (immunity, products produced before April 2002)

Safety standards: EN61131-2:1995 (requirements for programmable controllers), EN61131-1 (safety section for low voltage commands) UL508、CSA 22.2 No.142

Dangerous places: UL1604 Class 1 Zone 2 (Group A/B/C/D, T4), CSA 22.2 No.213 Class 1 Zone 2 (Group A/B/C/D, T4), UL2279 (IEC79-15) Class 1 Zone 2 (Group IIC), T4）

Other: EU Battery Directive 2006/66/EC, Maritime Certification (ABS, NK Japan Maritime Association, CCS China Classification Society), IECEx Certification

Accessories and software

1. Core accessories (including model and purpose)

Example of accessory type and model usage

ATA storage cards 2711-NM13 (2MB), 2711-NM14 (4MB) and other extended terminal storage, supporting application backup and transmission

Fixed storage card holder 2711-NMCC (550/600/1000 keyboard version), 2711-NMCD (550 touch version) and other fixed storage cards, suitable for different terminal models

Function key legend bars 2711-NF1 (550), 2711-NF4 (600), etc. are used to indicate the purpose of function keys, improving operational convenience

Anti glare protective film 2711-NV4 (550 keyboard version), 2711-NV4T (550/600 touch version), etc. reduce screen reflection and protect display panels (each model includes 3 sheets)

Replace damaged backlight modules such as 2711-NL1 (550 A-G series) and 2711-NL3 (600 A-B series) to extend terminal life

Real time clock replacement parts 2711-NB3 (550 E-F series), 2711-NB4 (550 G and later series) and other repair clock functions to ensure accurate timestamps

Installation accessory 2711-NP2 600/1000 terminal replacement installation clip

Power supply and terminal block 1747-NP1 (AC wall mounted power supply), 2711-TBDC (DC power terminal block) provide stable power supply and terminal connection

Interface modules 1747-PIC (RS-232 to DH-485) and 1747-AIC (DH-485 isolation coupler) extend communication protocols to achieve different signal conversions

2. PanelBuilder32 software

Model and Language: 2711-ND3 (English), 2711-ND3DE (German), 2711-ND3CN (Chinese), etc., supporting multilingual development

Core functions: Provide tools such as buttons/selection switches, screen selectors, data input, information display (analog instruments/bar charts, etc.), alarm diagnosis, graphic drawing (ISA symbols/custom graphics), etc; Support applications to upload/download via network, ATA card, or direct connection.

Cable and communication configuration

1. Cable type and purpose

Terminal cables are divided into application transmission cables and operational communication cables according to their functions, with the following key models:

Examples of Cable Function Models, Specifications, and Applications

Application upload/download 1761-CBL-PM02 (2m), 2711-NC13 (5m), etc. 300 Micro uses 8-pin mini DIN to 9-pin D-type head, 300-1000 uses 9-pin D-type head, supports application file transfer

RS-232 communication connects terminals such as 1747-C10 (1.8m) and 2711-NC21 (5m) to controllers (such as SLC/MicroLogix), supporting DF1/DH-485 protocol

Ethernet communication 1585J-M, 2711P-CBL-EX04 (4m) 1000 model EtherNet/IP port connection, direct connection requires cross line connection

Remote serial port 2711-NC17 (3m) provides remote RS-232 port access for terminals

2. Controller communication adaptation

The terminal can communicate with SLC, MicroLogix, PLC-5, and Logix (ControlLogix/CompactLogix) series controllers, with the following protocol and cable combinations:

SLC controller: DH-485 uses 1747-C10/C11/C20, EtherNet/IP uses 1585J-M, DeviceNet uses 1747-SDN module+DeviceNet cable

MicroLogix controller: DF1 uses 1761-CBL-AM00/HM02, EtherNet/IP uses 1761-NET-ENI module+Ethernet cable

PLC-5 controller: DH+uses 1770-CD shielded twisted pair cable, ControlNet uses ControlNet cable+1771-SDN module

Logix controller: EtherNet/IP uses 2711P-CBL-EX04 crossover cable, Remote I/O uses 1756-DHRIO module+1770-CD cable
