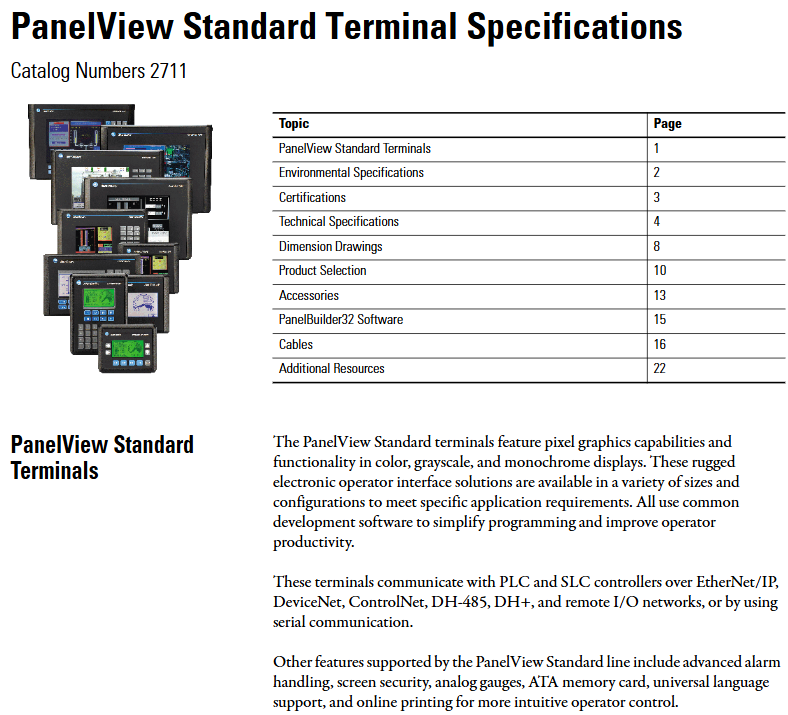

Rockwell Automation PanelView Standard Series Terminal (Model 2711)

Rockwell Automation PanelView Standard Series Terminal (Model 2711)

Product Overview and Core Features

Product positioning: Industrial grade operator interface terminal, providing diversified sizes (3 inches, 5.5 inches, 5 inches, 10 inches) and input methods (keyboard, touch screen, keyboard+touch screen) to meet the operational needs of different scenarios.

Core capability: Support interaction with PLC and SLC controllers through multi protocol communication (EtherNet/IP, DeviceNet, ControlNet, DH-485, DH+, remote I/O, and serial port); Equipped with advanced alarm processing, screen security, analog instrument display, ATA storage card expansion, multilingual support, online printing, and other functions, it enhances operational intuitiveness and efficiency.

Development software: PanelBuilder32 software is uniformly used throughout the series (supporting Windows 2000/ME/XP/Vista systems), which can reuse existing applications, simplify programming processes, support simultaneous opening of multiple applications, and import/export of tags.

Environmental specifications

The adaptability of different models of terminal environments is unified, and the key parameters are as follows:

Specific requirements for environmental attributes

The standard operating temperature range is 0-55 ° C (32-131 ° F); 600 color model 0-50 ° C (32-122 ° F)

Storage temperature 300 Micro: -20-85 ° C (-4-185 ° F); 550：-20-70°C（-4-158°F）； 300/600/1000：-25-70°C（-13-158°F）

Cooling power: 300 Micro 2.5W (8.5 BTU/hr), 300 6W (13 BTU/hr), 550 20W (69 BTU/hr), 600 keyboard version 32W (107 BTU/hr), 600 touch version 17W (577 BTU/hr), 1000 39W (132 BTU/hr)

Relative humidity of 300 Micro/600 keyboard/1000: 5% -95% without condensation at 0-55 ° C; 300/550: 5% -95% non condensing at 0-30 ° C; 600 touch version: 5% -95% non condensing at 0-40 ° C

Anti vibration (working) 2g, maximum 2000Hz

Working altitude 2000m (6561ft)

Impact resistance (working/non working) 300 Micro/550/300/600/1000: 30g/50g; Partial models 15g/30g

Protection level NEMA 12/13/4X (for indoor use only) IEC IP54/IP65

Anti pollution (only 300 coated version) complies with ANSI/ISA S71.04-1985 G3 level, EN60654-4:1998 level 3

Core technical specifications by model

1. 300 Micro and 300 model

Parameter 300 Micro (2711-M3A18L1/19L1) 300 (2711-K3A series)

Input method: keyboard only (8 function keys F1-F8), keyboard only (4 function keys F1-F4)

Display specifications: monochrome reflective LCD (LED backlight, lifespan of 100000 hours), resolution of 128 × 64, display area of 73 × 42mm, same as 300 Micro display specifications

Communication port RS-232 (DF1/DH-485, 8-pin mini DIN), no printer port DH-485, RS-232 (DH-485/DF1), some models include RS-232 printer port (speed 1200-19200 Kbps)

Power supply DC 18-32V (rated 24V), power consumption 10W max DC 11-30V (rated 24V), power consumption 25W max

Storage 240KB non-volatile memory, supports ATA card (300 Micro only) 240KB non-volatile memory (including application objects/text/bitmap), 170KB application running memory, does not support ATA card

Dimensions (H x W x D) 133 x 111 x 48mm (5.23 x 4.38 x 1.87 inches) 197 x 140 x 82mm (7.76 x 5.53 x 3.21 inches)

Weight 673g (1.48 pounds) 284g (10 ounces)

2. 550 model (2711-K5A/B5A/T5A)

Input methods: keyboard version (10 function keys F1-F10), touch version (128 touch units, press life of 1 million times), keyboard+touch version

Display specifications: monochrome LCD (blue mode), resolution 256 × 128, display area 120 × 60mm (4.75 × 2.38 inches), LED backlight life of 100000 hours

Communication ports: Supports EtherNet/IP, DeviceNet, ControlNet, DH+, remote I/O, DH-485, RS-232 (DH-485/DF1), including RS-232 printer port

Power supply: DC 18-30V (rated 24V, power consumption 18W max) or AC 85-264V (47-63Hz, power consumption 45VA max)

Storage: 240KB non-volatile RAM, 170KB application running memory, supports ATA cards; Equipped with on-site replaceable battery backup real-time clock

Size and Weight: Keyboard/Keyboard+Touchpad 167 × 266 × 106mm (6.57 × 10.47 × 4.17 inches), Weight 1.2kg (2.7 pounds); Touchscreen version 152 × 185 × 82mm (6.0 × 7.28 × 3.2 inches), weighing 0.93kg (2.1 pounds)

3. Model 600 (2711-K6C/B6C/T6C)

Input methods: keyboard version (10 function keys, press life of 2 million times), touch version (128 touch units, life of 1 million times), keyboard+touch version

Display specifications: Color active matrix TFT, resolution 320 × 234 (keyboard version)/320 × 240 (touch version), display area 115 × 86mm (4.54 × 3.4 inches)/115 × 87mm (4.54 × 3.43 inches), backlight can be replaced on site (half-life 50000 hours at 25 ° C)

Communication port: Same as 550 model, supports multiple protocols and printer ports

Power supply: DC 18-32V (rated 24V, keyboard version 34W max/touch version 24W max) or AC 85-264V (60VA max)

Storage: 240KB non-volatile memory, 190KB application running memory, some models support ATA cards; Clock with replaceable battery

Size and Weight: Keyboard/Keyboard+Touchpad 192 × 290 × 116mm (7.55 × 11.40 × 4.57 inches), Weight 2.0kg (4.4 pounds); Touchscreen version 152 × 185 × 96mm (6.0 × 7.28 × 3.80 inches), weighing 1.0kg (2.3 pounds)
