SIEMENS Climatix ™ S400 STD HVAC Controller (POS646 Series)

SIEMENS Climatix ™  S400 STD HVAC Controller (POS646 Series)

Product basic information

Product positioning and applicable scenarios Siemens Climatix ™  The S400 STD HVAC Controller (POS646 series) is a programmable modular controller designed specifically for residential and light commercial buildings. Its core is used for HVAC system control, including heat pumps, boilers, hybrid systems, cascade systems, heat exchange units (HIUs), and district heating (DHC) scenarios, supporting flexible customization for OEM customers.

Core models and physical characteristics

Model Type Installation Method Weight Protection Level Minimum Order Quantity (MOQ) Inventory Number (SSN)

POS466.05/100 PCB type screw installation 275g IP00 20 units S55384-C660-F100

POS466.65/100 HSG type (with housing) DIN rail/screw installation 427g IP20, 20 units S55384-C666-F100

POS466.65/101 HSG type (with housing) DIN rail/screw installation 479g IP20 1 S55384-C666-F101

Note: The logistics center is located in Nuremberg, Germany (DCN), and ordering requires providing the model number (ASN), inventory number (SSN), and quantity.

Compliance and reliability

Compliance certification: Compliant with EN 60730-1 standard, with EU CE (A5W00713702A), UKCA (A5W00713706A), RCM (A5W00713708A) certification, and environmental compatibility documents can be found in A5W00709166A (RoHS compliance, material composition, etc.).

Reliability: MTBF (mean time between failures)>65 years (calculated based on SN29500 standard at 20 ℃ environment), meeting the long-term stable operation requirements.

Hardware configuration and interface

1. Power parameters

Main power supply (T02 terminal): AC 230V (+10%/-15%), 50/60Hz, requires external overcurrent protection (slow melting fuse ≤ 10A or B/C/D type circuit breaker).

Power consumption: Minimum power consumption (controller only) 4.5W ± 0.2W (25 ℃), maximum power consumption 130VA (full load including secondary power supply).

Secondary power supply (providing power to peripherals with maximum current limit):

Secondary power supply voltage range maximum current note

5V（T28） DC 5V±2.5% 40mA -

12V（T28/T42） DC 12V±2.5% T28：40mA； T42：50mA -

24V (T24/T44/T50) DC 24V ± 10% 522mA (shared) maximum 3.5mF capacitive load

24V (T70, for expansion module) DC 24V ± 10% 1080mA maximum 3.5mF capacitive load

2. Core interface resources

I/O interface (18 multifunctional channels): Supports analog signals (NTC 1k/10k, Pt1000, LG-Ni1000, 0-10V DC, 0/4-20mA DC), digital signals (AC 230V/DC 24V), pulse counting (≤ 150Hz), frequency input (≤ 500Hz), PWM input/output (500Hz-2.5kHz), as specified in the terminal table (e.g. T28/T30/T34 for input, T24 for output).

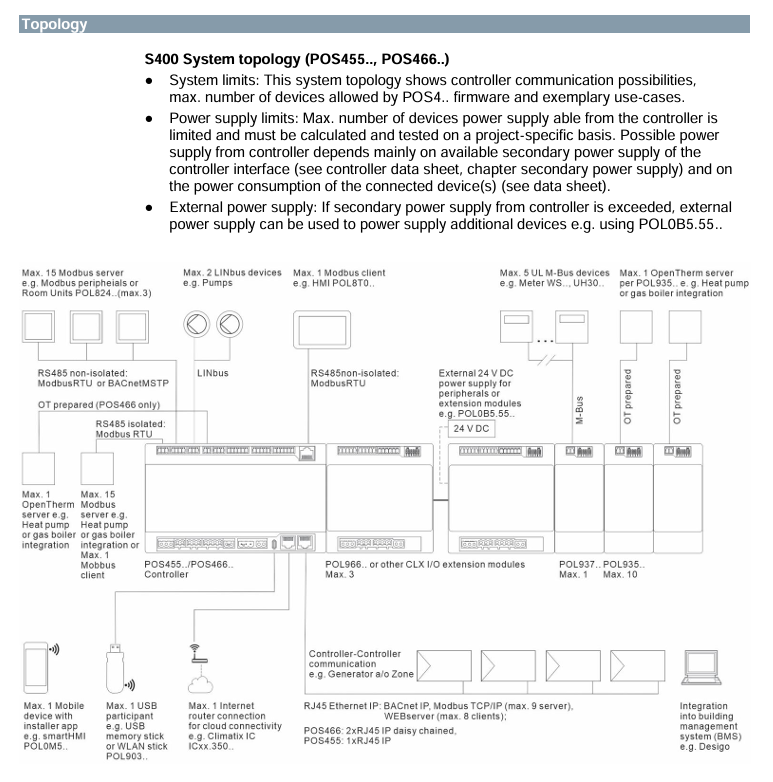

Communication interfaces (9 types):

Interface Type Terminal Core Parameters Typical Applications

OpenTherm T40 point-to-point, 1kbps, non isolated heat pump/gas boiler controller integration

LINbus T42 19.2kbps， Non isolated, up to 2 LINbus devices such as pumps/fans can be connected

RS485 (non isolated) T44 Modbus RTU/BACnet MS/TP, up to 15 server room units (such as POL824), BMS integration

RS485 (isolated) T46 Modbus RTU, up to 15 server heat pump outdoor units, BMS equipment integration

Ethernet IP T56/T58 10/100Mbps， Support BACnet IP/Modbus TCP/IP cloud connection (Climatix IC) and BMS integration

USB-C T54 USB 2.0 OTG， USB-A to C adapter is required to connect WLAN stick (debugging) and USB storage (file transfer)

Expansion Interface (T70): Peripheral bus, supporting the connection of Climatix I/O expansion modules (such as POL966, POL95E) and communication expansion modules (such as POL935 OpenTherm, POL937 M-Bus), up to 3 I/O expansion modules+10 communication expansion modules (POL935).

3. LED status indication (BSP LED)

LED color/flashing mode status description

Red/Green Alternating (1Hz) Software Update Mode (Download Applications/Firmware)

The green constant light application has been loaded and is running normally

The yellow constant light application has been loaded but not running

Yellow flashing (50ms on/1000ms off) Application not loaded

Red flashing (2Hz) firmware error

Hardware malfunction with constant red light

Software and tool support

programming tools

Climatix Project Studio Automation/APRO: Used for HVAC application programming, providing Level 3 support:

Level 1: OEM independent programming (including heating, ventilation, and cooling application libraries and templates);

Level 2: APC (Application Programming Center) or local partners provide programming services;

Level 3: Siemens pre developed configurable applications (such as fresh air heat recovery HRV, district heating HCS/DHC).

Configuration and Debugging Tools

Climatix SCOPE: OEM used for HVAC unit configuration, with the ability to modify watch pages, text, language, access permissions, and trend records.

Climatix SCOPE Light: Simplified version for OEM laboratory testing.

Climatix smartHMI APP/API: Install and debug tools, connect controllers through mobile devices, and support commissioning.

Climatix DEVICE REST API: Factory integration interface used to access controller data.

Cloud Services and Remote Access

Climatix IC Cloud: Provides remote access and cloud services (such as data monitoring and remote control), with cloud service model POL0L2.01/STD (SSN: P55693-L121-A100), and communicates via Ethernet IP.
