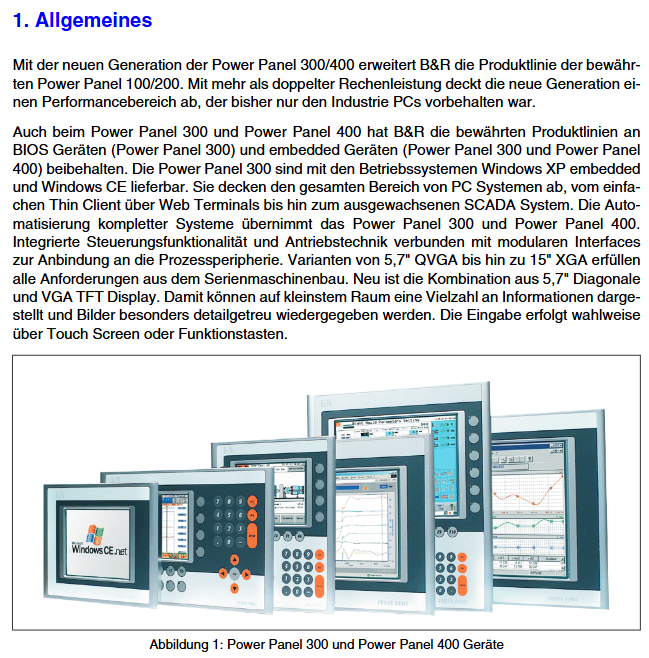

B&R Power Panel 300/400 Touch Screen

Heat dissipation and durability: adopting passive heat dissipation (heat sink) and fanless design to reduce dust accumulation; The shell is made of anodized aluminum material, and the sealing strip on the front side is waterproof, suitable for long-term industrial operation.

3. Diagnostic and maintenance functions

Status monitoring: Real time display of device status through LED indicator lights (Power light green=power supply normal, red=standby; CF light yellow=storage read/write in progress); Support reading CPU temperature, memory usage, and other data through B&R ADI (Automation Device Interface), triggering alarms in case of abnormalities.

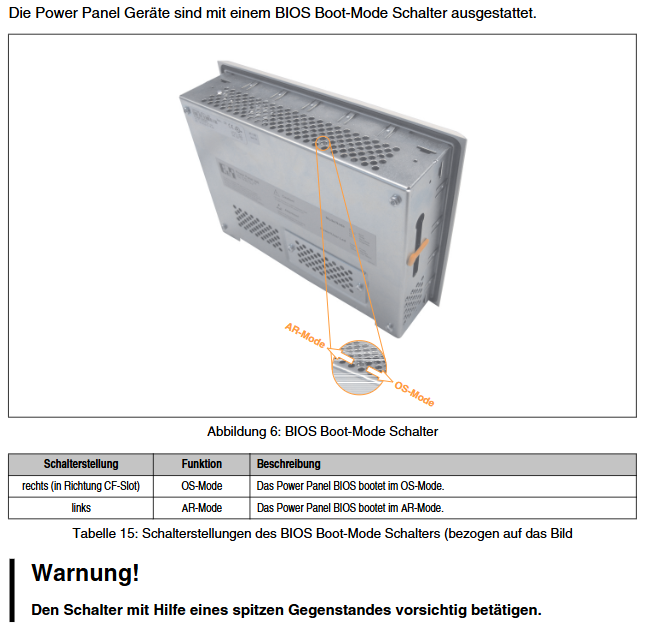

Convenient maintenance: CompactFlash slot with locking buckle and ejector, supports power-off replacement; BIOS supports the "restore default value" function (set the Mode/Mode switch to 00 and reset three times), simplifying the fault recovery process.

Hardware specifications and environmental parameters

（1） General Electric and Physical Specifications

Category parameter details (universal type, some models have differences)

Processor Geode LX800 500MHz, 32-bit x86 architecture, supports MMX/3D Now! instruction set

128-512MB DDR SDRAM memory, 8MB shared video memory (for graphics card)

Storage Type I CompactFlash slot (supports 64MB-16GB SLC NAND Flash)

Communication interface 1 x Ethernet (RJ45, 10/100Mbps), 1 x RS232 (9-pin D-Sub), 2 x USB 2.0 (Type A)

Power input 18-30VDC, rated current 0.45-1.25A (depending on model), power 10-30W

Physical size 5.7 inches model: 212 × 156 × 55.5mm (width × height × depth); 15 inch model: 435 × 330 × 71.5mm

The weight of the 5.7-inch model is approximately 1.4-1.7kg, and the 15 inch model is approximately 6.3kg (excluding expansion modules)

（2） Environmental and Protection Parameters

Category parameter details

Working temperature 0~+50 ° C (some models such as 4PP320.1043-31 support -20~+50 ° C)

Storage temperature -20~+70 ° C

Relative humidity of 5%~95% (no condensation), in compliance with ISA-S71.04-1985 G3 level pollution protection

Protection level: Front side IP65, Rear side IP20 (requires insertion of CF card or aPCI module)

Anti vibration operation: 2-9Hz (1.75mm amplitude), 9-200Hz (0.5g); Storage: 2-8Hz (7.5mm amplitude), 8-200Hz (2g)

Anti impact operation: 15g (11ms); Storage/Transportation: 30g (15ms)

The maximum altitude is 3000m (for every 1000m increase, the maximum working temperature decreases by 1 ° C)

Order information and system compatibility

（1） Core Product Order List (Key Models)

Product Category Model Description Remarks

Power Panel 300 (BIOS version) 5PP320.0571-29 5.7-inch QVGA color LCD with touch screen, 256MB memory including 1 CF slot, no aPCI slot

5PP320.1505-39 15 inch XGA color TFT with touch screen, 256MB memory, front side IP65, supports screen rotation

Power Panel 300 (AR version) 4PP320.1043-31 10.4-inch VGA color TFT, with touch screen, 128MB memory compatible with B&R Automation Runtime, including 6 fixed buckles

4PP381.1043-31 10.4-inch VGA color TFT with touch screen and 28 function keys supporting aPCI expansion, suitable for complex operation scenarios

Power Panel 400 (AR version) 4PP420.0571-75 5.7-inch QVGA color TFT, with touch screen, 1 aPCI slot, 128MB memory, including lithium battery (3V/950mAh)

4PP451.1043-75 10.4-inch VGA color TFT with 10 soft keys+28 function keys and 2 aPCI slots, compatible with multi bus integration

Spare part 0AC201.91 lithium battery (3V/950mAh, 4 pieces/box) for RTC clock and SRAM data backup

5CFCRD.2048-04 2GB Type I CompactFlash Card (SLC NAND) industrial grade storage, compatible with all models

0TB103.9 24V 3-pin screw terminal power plug needs to be ordered separately for power connection

（2） System compatibility requirements

Software compatibility: Supports Windows CE 5.0/6.0 (Professional/ProPlus version) Windows XP Embedded（Feature Pack 2007）、Windows Embedded Standard 2009； Automation Runtime needs to be configured with B&R Automation Studio software.

Hardware compatibility: aPCI slots only support B&R System 2005 series modules (such as CANopen, Profinet modules); CompactFlash should use industrial grade SLC type (recommended original B&R model to avoid compatibility issues); External devices must comply with USB 2.0 specifications or RS232 protocol (such as barcode scanners, printers).

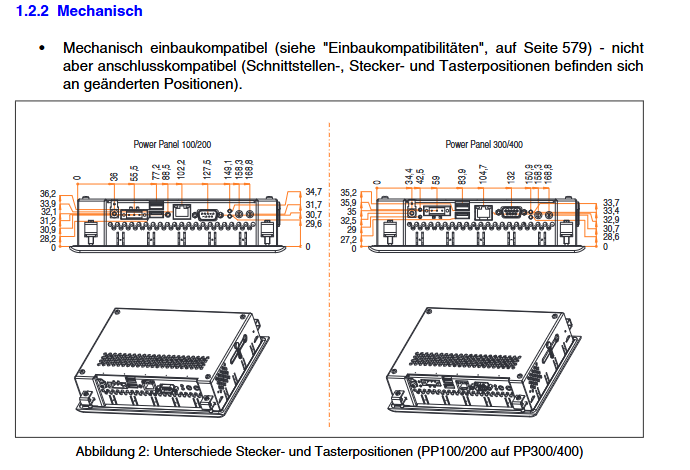

Installation compatibility: Compatible with the mechanical installation dimensions of Power Panel 100/200 (with the same hole size), but with different interface positions (such as rotating the power plug 180 °), requiring rewiring.
